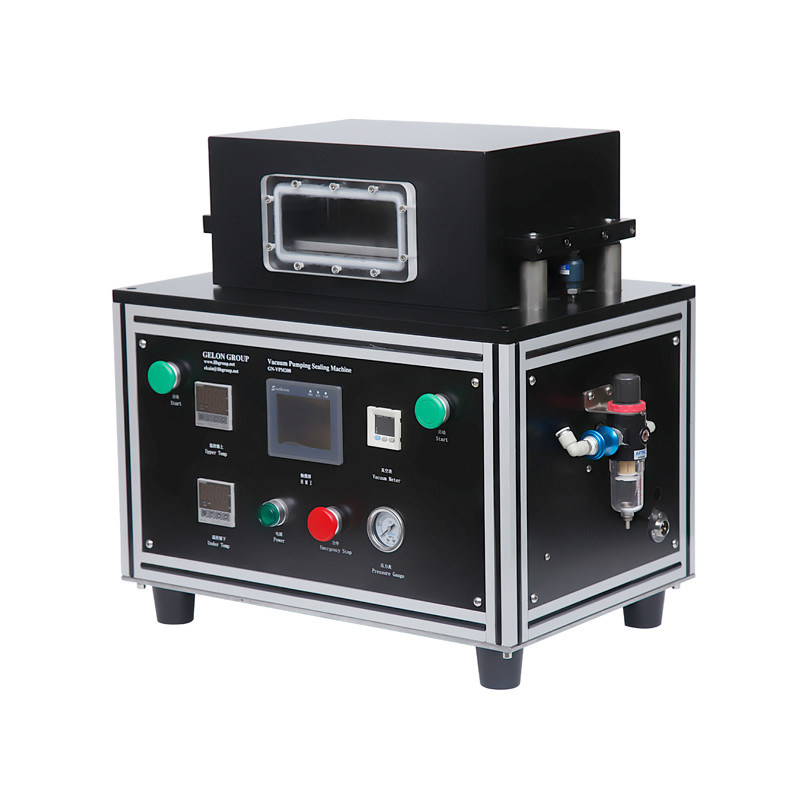

Pouch Cell Laboratory Vacuum Second Sealing Battery Equipment Desktop

Pouch Cell Laboratory Vacuum Second Sealing Battery Equipment Desktop
Pouch Cell Laboratory Vacuum Second Sealing Battery Equipment Desktop Pouch Cell Laboratory Vacuum Second Sealing Battery Equipment Desktop Pouch Cell Laboratory Vacuum Second Sealing Battery Equipment Desktop Pouch Cell Laboratory Vacuum Second Sealing Battery Equipment Desktop

Large Image :  Pouch Cell Laboratory Vacuum Second Sealing Battery Equipment Desktop

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: Second Sealing Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$7500~24000 per set
Packaging Details: Standard packing/Wood packing
Delivery Time: 20~25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets per month

Pouch Cell Laboratory Vacuum Second Sealing Battery Equipment Desktop

Description
Brand: Gelon Packaging Type: Pouch Cell Battery
Voltage: 220V/110V Temperature Control Accuracy: ±1.5°C
Sealing Time: 0~99 Seconds Adjustable Warranty: 1 Year
High Light:

Second Sealing Battery Equipment Desktop

,

Pouch Cell battery production line

,

Vacuum Second Sealing Battery Equipment

Desktop Lithium Ion Batteries Pouch Cell Easy Operate Laboratory Vacuum Second Sealing Battery Equipment





Product feature:

This machine main used in lab for puch cell finally sealing after cell formation, have the function of pucturing the pouch bag, recycle collection the redundant electrolyte and finally vacuum sealing.



* Head made of copper material, heat transfer effect is good to save power consumption, improve efficiency, energy saving than similar products;

* The upper and lower head pressure can be adjusted through the regulator to achieve different process parameters;

* Upper and lower head with cylinder driven by two linear guide sleeve guide, up and down flexible, accurate guidance to ensure product parallelism after sealing requirements;

* With automatic puncturing function, waste recovery unit;

* Cover cavity driven by the cylinder, guided by a linear guide sleeve, up and down flexible, accurate guide to ensure product sealing requirements;

* Can be applied to different specifications of the product battery, and the adjustment is simple and convenient;

* Easy to operate, beautiful appearance, small size, light weight



Head temperature: room temperature~250°C, temperature adjustable
Temperature control accuracy:±1.5°C
Sealing time:0~99 seconds adjustable
Edge width:5mm(accoding to customer requirements)
The maximum edge size:200mm
Power supply:200V/50Hz
Power:50W
Compressed air source:05~0.7Mpa



Pouch Cell Laboratory Vacuum Second Sealing Battery Equipment Desktop 0

Pouch Cell Laboratory Vacuum Second Sealing Battery Equipment Desktop 1
