Product Details:
|
| Brand: | Gelon | Type: | Manual Punching Machine |
|---|---|---|---|
| Size: | Φ3~24mm,the Usual Size:10/12/14/15/16/19/20mm | Pressing Shaft Stroke: | Max. 20mm |
| Manual Pressure: | ≥300Kg | Warranty: | 1 Year |
| High Light: | Lithium Ion Coin Battery Research,Manual Battery Research Equipment,Batteries Manual Punching Machine |
||

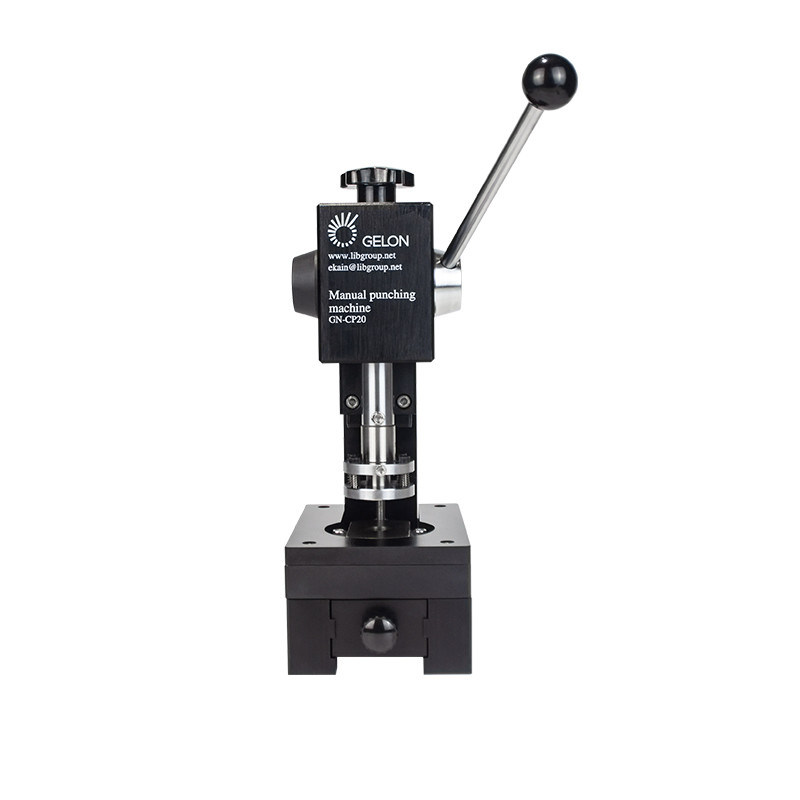

Gelon Factory Direct Lithium Ion Batteries Research Equipment Coin Cell Manual Punching Machine
The manual punching machine is researched and designed by our company which is used for cutting various materials(thin metal foil,electrode,separator,etc) in the battery industry. The equipment has fine workmanship, and the resulting discs has no burrs and no indentation after punching, the cutting die can be replaced to achieve different sizes needs.

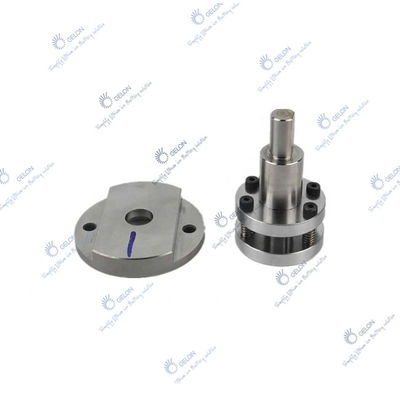

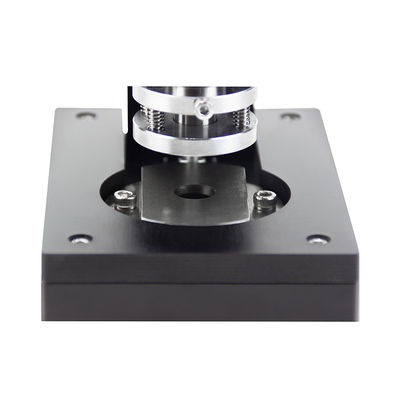

Equipped with different size die, it can achieve sheet material cutting and dropping. The design of this machine is small, flexible and convenient. It is very suitable for 0.01~0.5mm thickness battery cathode,anode electrode and separator cutting . Can be easily accessed through a glove box
Coin Cell Model: All kinds of AG,CR,LIR coin cell,2032,2025,2016 and etc, according to request
| Standard Crimping Die | One set of crimping dies for all CR20XX coin cell, such as CR2045, CR2032, CR2025 and CR2016 ,etc. |
| Structure | Heavy Duty Steel plate |
| Pressure | Max. 8 metric Tone hydraulic with automatic return |
| Net Weight | 15Kg |
| Machine overall Dimension | 300L x 190 W x 310H mm |
| Shipping Weight | 35 Kg |
