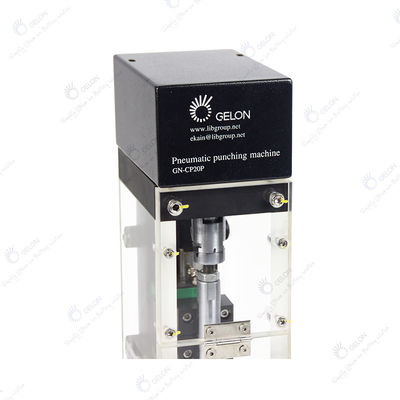

Desktop Pneumatic Punching Machine CR2032 / CR2016 / CR2025 / CR2430

Desktop Pneumatic Punching Machine CR2032 / CR2016 / CR2025 / CR2430
Desktop Pneumatic Punching Machine CR2032 / CR2016 / CR2025 / CR2430 Desktop Pneumatic Punching Machine CR2032 / CR2016 / CR2025 / CR2430 Desktop Pneumatic Punching Machine CR2032 / CR2016 / CR2025 / CR2430 Desktop Pneumatic Punching Machine CR2032 / CR2016 / CR2025 / CR2430

Large Image :  Desktop Pneumatic Punching Machine CR2032 / CR2016 / CR2025 / CR2430

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: Manual punching machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$1100~1200
Packaging Details: Standard packing/Wood packing
Delivery Time: 20~25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets per month

Desktop Pneumatic Punching Machine CR2032 / CR2016 / CR2025 / CR2430

Description
Brand: Gelon Type: Pneumatic Punching Machine
Size: Φ3~24mm,the Usual Size:10/12/14/15/16/19/20mm Pressing Shaft Stroke: Max. 20mm
Manual Pressure: ≥300Kg Warranty: 1 Year
High Light:

Desktop Pneumatic Punching Machine

,

CR2430 Coin Cell Punching Equipment

,

Pneumatic Punching Machine CR2032

Desktop Pneumatic Punching Machine CR2032/CR2016/CR2025/CR2430 Coin Cell Punching Equipment



The pneumatic punching machine is researched and designed by our company which is used for cutting various materials(thin metal foil,electrode,separator,etc) in the battery industry. The equipment has fine workmanship, and the resulting discs has no burrs and no indentation after punching, the cutting die can be replaced to achieve different sizes needs





Equipped with different size die, it can achieve sheet material cutting and dropping. The design of this machine is small, flexible and convenient. It is very suitable for 0.01~0.5mm thickness battery cathode,anode electrode and separator cutting . Can be easily accessed through a glove box

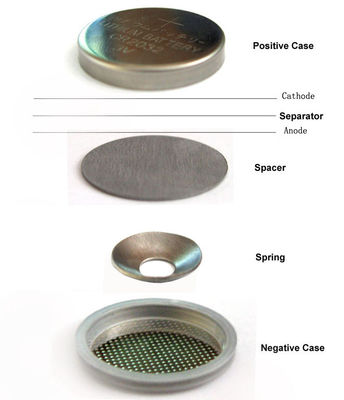

Coin Cell Model: All kinds of AG,CR,LIR coin cell,2032,2025,2016 and etc, according to request



Standard Crimping Die One set of crimping dies for all CR20XX coin cell, such as CR2045, CR2032, CR2025 and CR2016 ,etc.
Structure Heavy Duty Steel plate
Pressure Max. 8 metric Tone hydraulic with automatic return
Net Weight 15Kg
Machine overall Dimension 300L x 190 W x 310H mm
Shipping Weight 35 Kg

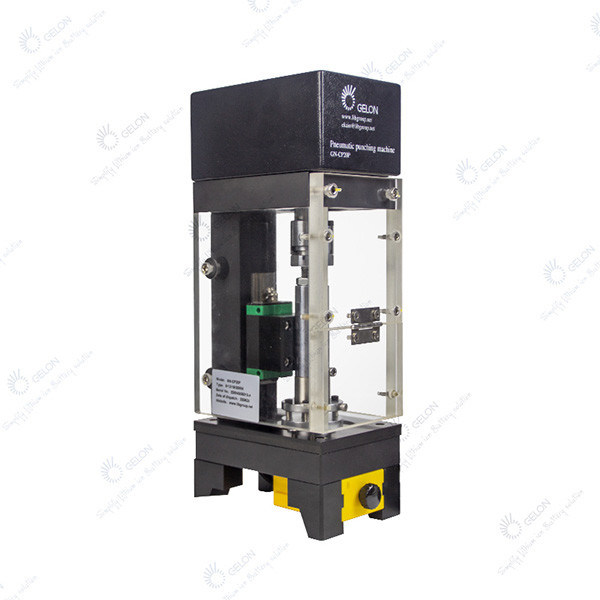

Desktop Pneumatic Punching Machine CR2032 / CR2016 / CR2025 / CR2430 0

Desktop Pneumatic Punching Machine CR2032 / CR2016 / CR2025 / CR2430 1
