Product Details:
|
| Product Name: | Automatic Cylinder Cell Assembly Line | Materials: | Stainless Steel |
|---|---|---|---|
| Feature: | Automatic | Application: | Lithium Ion Battery |
| Voltage: | 380,can Be Customized | Advantage: | High Efficiency And High Quality |
| Highlight: | Lithium Ion Battery Assembly Machine,Automatic battery assembly line,380V Battery Assembly Machine |
||

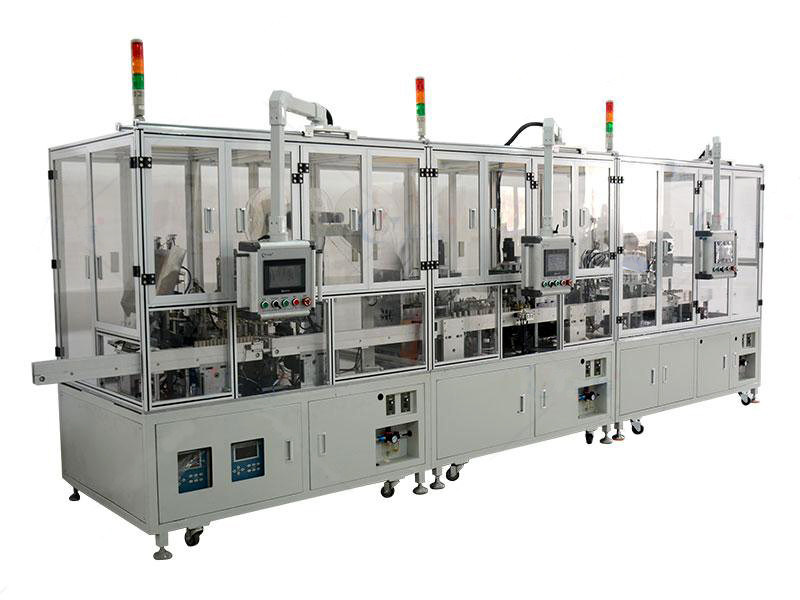

Lithium ion battery automatic cylinder cell assembly line all-in-one machine
Introduction:
It is mainly used for cylindrical lithium battery automatic puting of the bottom insulator , battery core detection, putting battery core in the cases, automatic welding bottom, automatic puting top surface insulator, automatic grooving and coating, automatic laser welding caps, and welded caps , placed in the box.
Features:
1. Automatic double-station into the shell and puting of the bottom insulator: CCD defective product detection.
2, Automatic point bottom welding and adding the top surface mat, automatic totating needle.
3, Automatic grooving and coating oil , effectively prevent the swell after the grooving, can be added to the groove cleaning function.
4, Automatic laser welding cap , welding cap collect automaticly.
5, The welded caps can be placed in box automaticly.
Index:
| Voltage | 380V 50Hz | Power | 15kw |
| Working pressure | 5-7kgf/cm2 | Needle diameter | 2.0-3.0mm |
| Insulation sheet thickness | 0.20mm | Application size | 10/14/17/18/21/26/32 |
| Working efficiency | 70-80ppm/min | Size | 8000*1500*1800mm |
