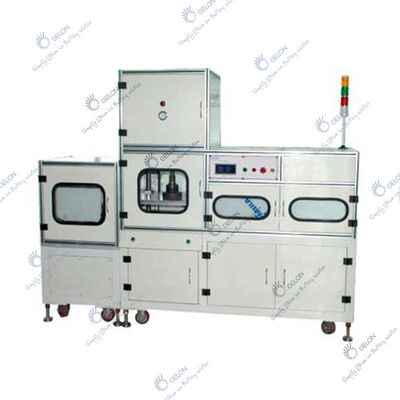

Aluminium Laminated Film Pouch Cell Case Forming Machine Automatic Formation Machine

Automatic Formation Machine Aluminium Laminated Film Pouch Forming Machine Battery Pouch Cell Case Forming

Summarization

• Suitable for automatically stamping the aluninum laminated film for pouch cells(Li-battery cell),with reeled materials as the feeding materials;
• Automatic feeding,step driving,and cutting at given length;
• With touch screen(for operation),PLC control,electronic ruler,break piont detecting,and light screen safety protection;
• Applicable dies :three-plate mold or spring mold

• ①gas-liquid pressurized cylinder carry out high output pressure

  ②the position of the cutting blade showing by the electron ruler

  ③the feed delivery robot

  Technical parameter:

• Item	CKA200I
  Applicable area of aluminum plastic film	Max. 380 x 200mm
  Thickness of the aluminum plastic film	0.11-0.2mm
  stamping depth	Single ﹤ 6mm
  productivity	200-450pcs/H
  Gas-liquid pressurized cylinder	10T(made in taiwan)
  applicable mold	three-plate mold / spring mold
  power	AC220V 05KW
  air source	06-0.7Mpa 40L/S
  equipment dimension	700 * 2250 * 1860mm
  weight	870Kg
