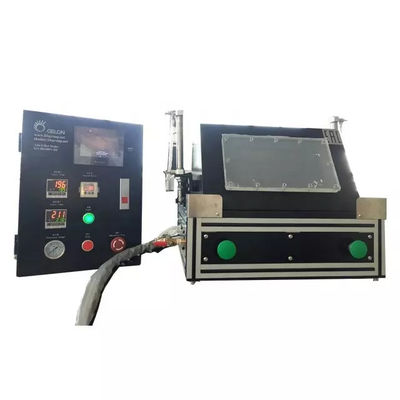

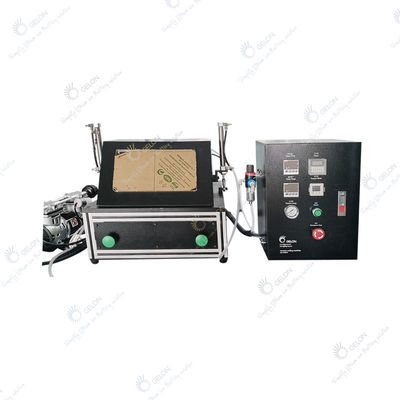

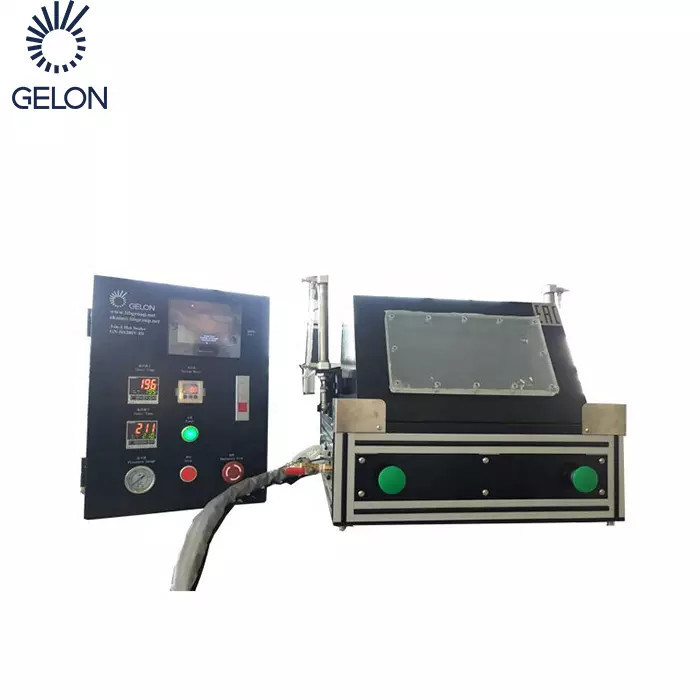

Three In One Top / Side Hot Sealer Machine Lithium Ion Battery Making Machine

Hot Sale Three In One Top/ Side Sealer Pouch Battery Machine​



The 3-in-one machine (top-side sealing, vacuum standing ,vacuum sealing machine) can be applied to the sealing process of pouch cell battery. This machine is compact in design, can be placed in a glove box, and can be heat sealing, vacuum degassed, and vacuum sealing. The vacuum degree of the working chamber of the equipment is good, the sealing effect is excellent, and the finished battery is good.

PRODUCT SPECIFICATIONS

Specification	Datas
Power	Voltage single phase 220 VAC±10%(customizable 110 VAC), frequency 50 Hz/60Hz, power 700 W
Air supply	0.5~0.8MPa Compressed air or inert gas
Head temperature	Up to 250℃ for upper and lower heads , 200℃ for upper and 180℃ for lower heads
Temperature control accuracy	±2℃
Battery size	Max. L220mm*W128mm*H12mm
Sealing width	Standard 5mm( customizable)
Sealing length	Max.250mm
Sealing pressure	Through air pressure regulation
Heat sealing time	0~99s adjustable, recommended 5-6s
Vacuum degree	Adjustable, up to -90 Kpa or more
Equipment size	Main boday:about L470mm*W550mm*H430mm Control box :about L420mm*W320mm*H430mm

SIMILAR PRODUCTS



Top and Side Sealing Machine

Vacuum Pre-sealing Machine

Second Sealing Machine




We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.







RFQ:
Q: Are you trading company or manufacturer ?
Q: Can I visit your factory?
A:Yes,very welcome.

Q:How can I visit your company?
A:You can take flight to Linyi or Shenzhen airport ,we can pick you up there.
Please mail us when you have the visit plan,we will confirm the schedule with you.

Q:What is your terms of delivery?
A:We accept EXW, FOB, CIF,DAP etc. You can choose the one which is the most convenient or cost effective for you.

Q: How is your delivery time?
A: 1-3 days for sample orders or some equipments in stock.
10-30 days for mass production order(based on different quantities)

Q: What about the after-sale service?
A: One years warranty and lifetime free technical support.

Q: Do you provide other equipments or materials?
A: Yes, we provide full set lithium ion battery materials, equipments and technology for lab line ,pilot line and production line.
