Gelon 4680 Battery Winding Machine Cylindrical Lithium Battery Machine

Certification
China Shandong Gelon Lib Co., Ltd certification
China Shandong Gelon Lib Co., Ltd certification
I'm Online Chat Now

Gelon 4680 Battery Winding Machine Cylindrical Lithium Battery Machine

Gelon 4680 Battery Winding Machine Cylindrical Lithium Battery Machine
Gelon 4680 Battery Winding Machine Cylindrical Lithium Battery Machine Gelon 4680 Battery Winding Machine Cylindrical Lithium Battery Machine

Large Image :  Gelon 4680 Battery Winding Machine Cylindrical Lithium Battery Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-4680WM
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $24500-$42500/set
Packaging Details: Standard wooden box for export.
Delivery Time: 15-25 working days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 30 sets per month

Gelon 4680 Battery Winding Machine Cylindrical Lithium Battery Machine

Description
Production Name: 4680 Battery Winding Machine Usage: Lithium Ion Battey Research And Production
Compressed Air: 0.5~0.7 MPa Weight: 12.3T
Equipment Size: L5800mm× W1800mm × H 2450mm Applicable Industries: Lithium Ion Battery, New Energy
Warranty Of Core Components: 1 Year Acuum Source: Min. -60Kpa
Power: 65KW Equipment Noise: ≤75db
High Light:

4680 Battery Winding Machine

,

Cylindrical Battery Winding Machine

Gelon 4680 Battery Winding Machine Cylindrical Lithium Battery Machine

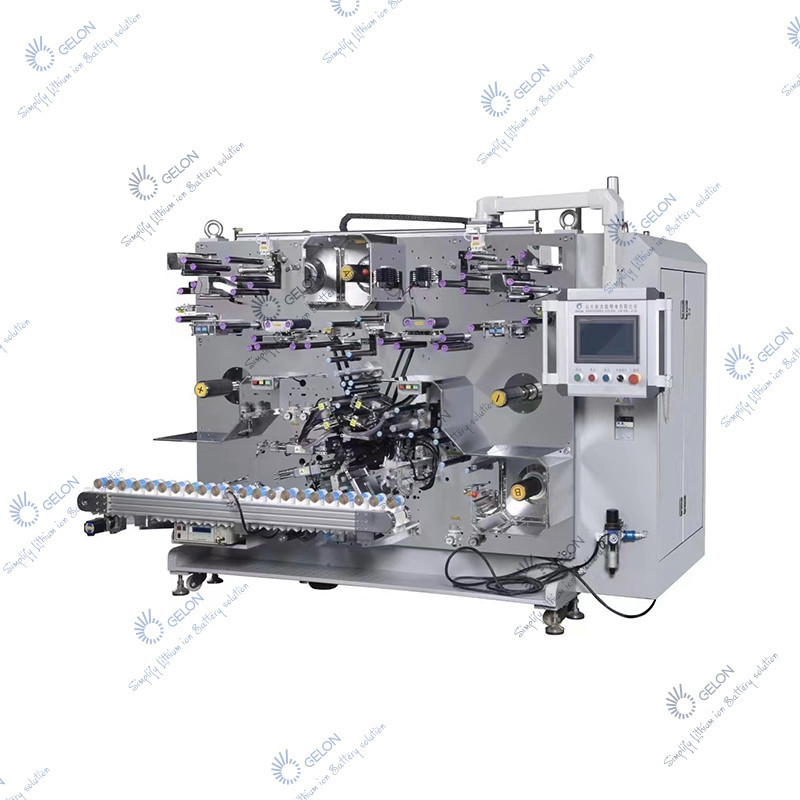

This equipment is an automatic lithium-ion battery cell winding machine for power lithium battery cells, which is mainly used for the winding and forming of cylindrical cells. This equipment adopts a three-roll three-station needle winding structure;



Equipment configuration

1. Equipment size: about 5800mm (length) × 1800mm (width) × 2450mm (height); (excluding the fan, for reference only, the final equipment size is subject to the actual design).

2. Workshop ceiling net height from floor surface: ≥ 2600mm (total equipment height ≤ 2550mm).

3. Equipment weight: about 12.3T (equipment installation site ground bearing ≥ 1000KG/㎡).

4. Appearance color: standard ; or customer provided color plate (made according to customer color plate).

5. Working power: AC380V±10﹪, power 65KW, frequency 50Hz.

6. Compressed air: 0.5~0.7 MPa, using flow rate about 3000L/min, usage rate 90%.

7. Vacuum source: minimum -60Kpa.

8. Using environment: temperature 10~35℃, dew point below 20℃, no combustible and corrosive gas, no dust (cleanliness not less than 10K Class).

Equipment noise: ≤75db (measured 1m from the outer wall of the equipment)

Gelon 4680 Battery Winding Machine Cylindrical Lithium Battery Machine 0

Adapt to below Incoming materials

material Hang Scroll no. width (mm)

Single piece length

(mm)

thickness

(μm)

Thickness difference (m) Roller diameter (mm) Max outer diameter of coil (mm)

weight

(KG)

Cathode electrode 2 60~150 1600~6000 60~280 ≤3μm Ф76.2±1 Ф 800 Max 200
Anode electrode 2 60~150 1600~6000 60~280 ≤3μm Ф76.2±1 Ф 800 Max 200
Separator 2 60~150 1600~6100 8~25 Ф76.2±1 Ф 600 Max 80
Tape 1 2 10~30 60~120 15~40 Ф76.2±1 Ф 200



Gelon 4680 Battery Winding Machine Cylindrical Lithium Battery Machine 1Gelon 4680 Battery Winding Machine Cylindrical Lithium Battery Machine 2

Gelon 4680 Battery Winding Machine Cylindrical Lithium Battery Machine 3
