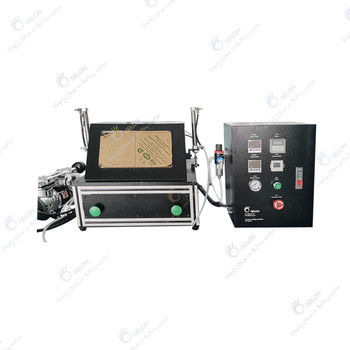

3 In 1 Top And Side Battery Sealing Machine Hot Sealer Pouch Cell Assembly Equipment

3 In 1 Top And Side Battery Sealing Machine Hot Sealer Pouch Cell Assembly Equipment
3 In 1 Top And Side Battery Sealing Machine Hot Sealer Pouch Cell Assembly Equipment 3 In 1 Top And Side Battery Sealing Machine Hot Sealer Pouch Cell Assembly Equipment

Large Image :  3 In 1 Top And Side Battery Sealing Machine Hot Sealer Pouch Cell Assembly Equipment

Product Details:
Place of Origin: china
Brand Name: Gelon
Certification: ce
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD4600-6990/PCS
Packaging Details: Standard exported package : Internal anticollision protection, external export wooden box packaging.
Delivery Time: 25 working days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500pcs/month

3 In 1 Top And Side Battery Sealing Machine Hot Sealer Pouch Cell Assembly Equipment

Description
Product Name: Pouch Cell 3-IN-1 Hot Sealer Machine Applicable Industries: Lithium Ion Battery Making
Battery Size: Max. L220mm*W128mm*H12mm Sealing Width: Standard 5mm( Customizable)
Head Temperature: 200℃ For Upper And 180℃ For Lower Heads Sealing Pressure: Through Air Pressure Regulation
Vacuum Degree: Adjustable, Up To -90 Kpa Or More Heat Sealing Time: 0~99s Adjustable, Recommended 5-6s
Sealing Length: Max.250mm Usage: 3-in-1 Hot Sealer
High Light:

Top Side Battery Sealing Machine CE

,

200 degree Battery Sealing Machine

,

Hot Sealer Pouch Cell Assembly Equipment

3-In-1 Top And Side Sealing Machine Lithium Ion Battery Pouch Cell Assembly Equipment



Equipment characteristics

The 3-in-one machine (top-side sealing, vacuum standing ,vacuum sealing machine) can be applied to the sealing process of pouch cell battery. This machine is compact in design, can be placed in a glove box, and can be heat sealing, vacuum degassed, and vacuum sealing. The vacuum degree of the working chamber of the equipment is good, the sealing effect is excellent, and the finished battery is good.



Power Voltage single phase 220 VAC±10%(customizable 110 VAC), frequency 50 Hz/60Hz, power 700 W
Air supply 0.5~0.8MPa Compressed air or inert gas
Head temperature Up to 250℃ for upper and lower heads ,200℃ for upper and 180℃ for lower heads
Temperature control accuracy ±2℃
Sealing width Standard 5mm( customizable)
Sealing length Max.250mm
Heat sealing time 0~99s adjustable, recommended 5-6s
Vacuum degree Adjustable, up to -90 Kpa or more



3 In 1 Top And Side Battery Sealing Machine Hot Sealer Pouch Cell Assembly Equipment 0

3 In 1 Top And Side Battery Sealing Machine Hot Sealer Pouch Cell Assembly Equipment 13 In 1 Top And Side Battery Sealing Machine Hot Sealer Pouch Cell Assembly Equipment 23 In 1 Top And Side Battery Sealing Machine Hot Sealer Pouch Cell Assembly Equipment 33 In 1 Top And Side Battery Sealing Machine Hot Sealer Pouch Cell Assembly Equipment 43 In 1 Top And Side Battery Sealing Machine Hot Sealer Pouch Cell Assembly Equipment 5
