Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-S650R
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $468,000/set
Packaging Details: Standard wooden box for export.
Delivery Time: 15-25 working days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 5 sets per month

Roll To Roll Electrode Slitting Machine Li-Ion Battery Making Machine

Description
Production Name: Roll To Roll Electrode Slitting Machine Li-ion Battery Making Machine Usage: Lithium Ion Battey Research And Production
Voltage And Frequency: AC480V / 50Hz Power: 6KW
Aluminum Foil: 8-30um Copper Foil: 4.5-30um
Max Width: 800mm Speed: 50m/min
Thickness Of Electrode: 70-250um Core Components: PLC, Bearing, Motor, Pressure Vessel
High Light:

Roll to Roll Electrode Slitting Machine

,

AC480V Electrode Slitting Machine

,

6KW Li-ion Battery Making Machine

Roll to Roll Electrode Slitting Machine Li-ion Battery Making Machine

Load the rolled positive/negative pole pieces into the roll mechanism, and through power traction, send the pole pieces to the cutter group arranged according to the process specifications for slitting, and the upper and lower winding mechanisms will The divided pole pieces are collected into rolls respectively, and the side materials on both sides are collected by the side material mechanism. The equipment is assisted by a deviation correction system, a tension transmission system, and a vacuum system to ensure that the pole piece travels smoothly, thereby ensuring stable pole piece cutting, and various process indicators such as burrs and straightness are within the process range.

Incoming electrode width: 50-800mm;
Slitting accuracy: ≤ ±2um
Width cutting accuracy: ≤ ±0.1mm;
Cutting burrs:
Longitudinal metal burrs<8μm, Horizontal metal burr <10μm
Correction accuracy: ≤ 0.1mm



Max width
800mm
Slitting Width
30-715mm
Design machine speed
50m/min
Slitting speed
40m/min
Electrode thickness
70-250um

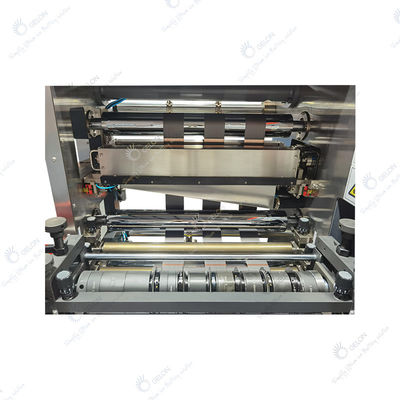

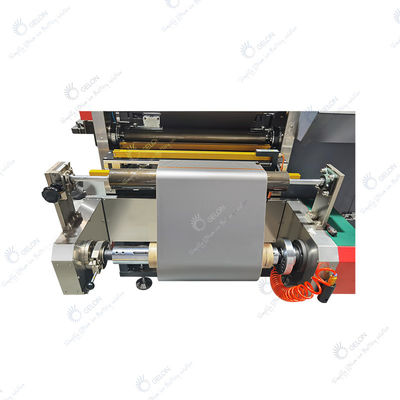

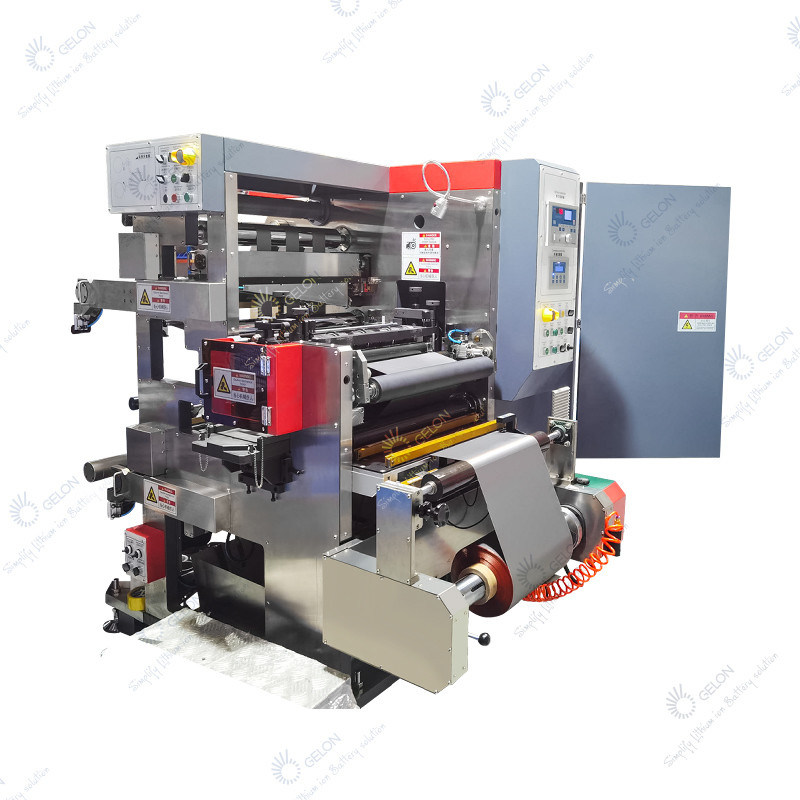

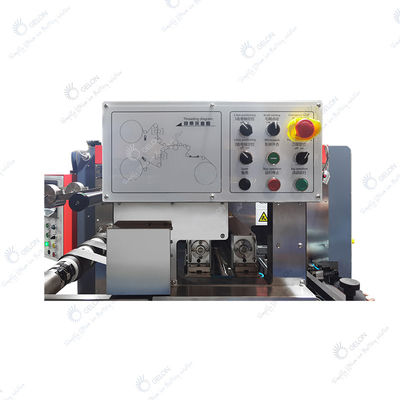

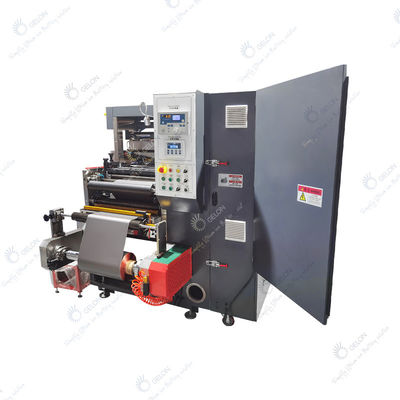

Roll To Roll Electrode Slitting Machine Li-Ion Battery Making Machine 0
Roll To Roll Electrode Slitting Machine Li-Ion Battery Making Machine 1
Roll To Roll Electrode Slitting Machine Li-Ion Battery Making Machine 2


Roll To Roll Electrode Slitting Machine Li-Ion Battery Making Machine 3Roll To Roll Electrode Slitting Machine Li-Ion Battery Making Machine 4

Roll To Roll Electrode Slitting Machine Li-Ion Battery Making Machine 5Roll To Roll Electrode Slitting Machine Li-Ion Battery Making Machine 6
