100W Manual Winding Machine Mobile Phone Lithium Battery Winding Machine

100W Manual Winding Machine Mobile Phone Lithium Battery Winding Machine
100W Manual Winding Machine Mobile Phone Lithium Battery Winding Machine 100W Manual Winding Machine Mobile Phone Lithium Battery Winding Machine 100W Manual Winding Machine Mobile Phone Lithium Battery Winding Machine 100W Manual Winding Machine Mobile Phone Lithium Battery Winding Machine 100W Manual Winding Machine Mobile Phone Lithium Battery Winding Machine

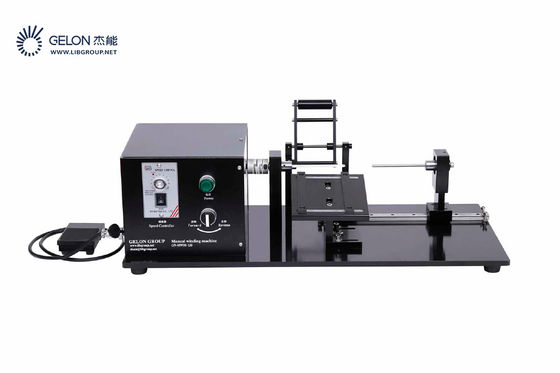

Large Image :  100W Manual Winding Machine Mobile Phone Lithium Battery Winding Machine

Product Details:
Place of Origin: CHINA
Brand Name: GELON
Certification: CE
Model Number: GN-W120
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$1900 / pc
Packaging Details: wood case
Delivery Time: 25~ 30 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500 pc / month

100W Manual Winding Machine Mobile Phone Lithium Battery Winding Machine

Description
Round Needle: Φ5x90L Square Needle: W18x95L
Adjustable Width Of Guide Plate: Max.85mm The Rotation Direction Of The Motor: Can Be Switched Forward/reverse
Motor Speed: 0~170 Rpm Adjustable. Reduction Ratio: 1:6 Power: 100W
Equipment Dimension: L680*W340*H220mm Net Weight: 29Kg
High Light:

100W Manual Winding Machine

,

Lithium Battery Manual Winding Machine

,

Lithium Battery Winding Machine

Manual Winding Machine Mobile Phone Lithium Battery Making Machinery Battery Equipment Battery Winding

100W Manual Winding Machine Mobile Phone Lithium Battery Winding Machine 0



Introduction

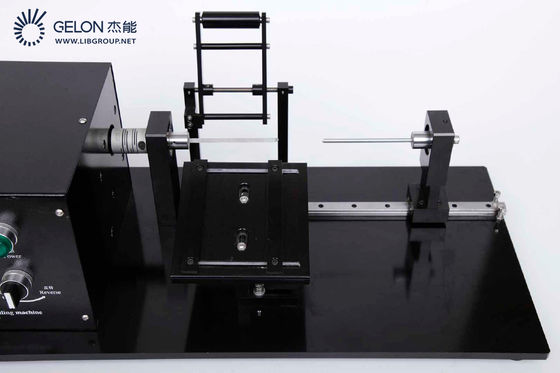

1. Manual winding machine is a simple manual winding machine independently designed and manufactured by us, which is specially used for the winding of aluminum foil packaging batteries/cylindrical batteries and supercapacitors. The deflection of the rolling needle is small; the up and down, left and right, front and rear positions of the material guide plate are adjustable; the foot switch controls the forward and reverse rotation. It is easy to operate, and the up and down, left and right, front and rear positions of the guide electrode groove ruler can be adjusted;

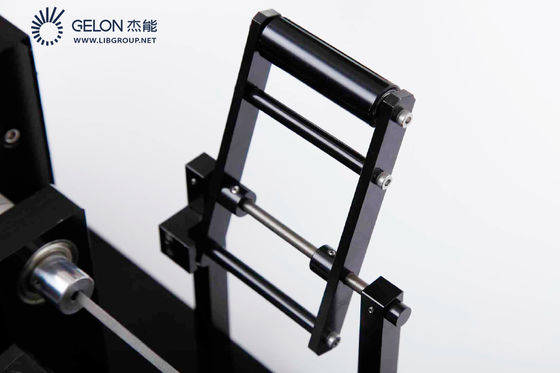

2. The winding support roller ensures the winding tightness when the battery is wound; the winding tail bracket is added to improve the winding accuracy of the battery; the winding can be forward and reversed, and the winding speed is stepless;



Equipment Features

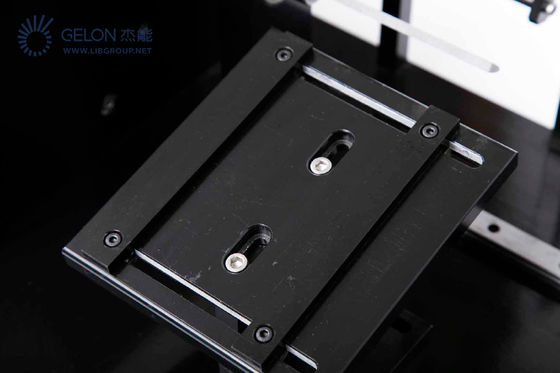

1. The width of the guide electrode groove can be adjusted.

2. The winding support roller ensures the tightness of the winding when the battery is wound.

3. The winding can be forward and reversed, and the winding speed is adjustable.

4. The roll needle is easy to install and replace.

5. Compatible with the winding of pouch cell and cylindrical batteries. 6. The machine is small in size, exquisite in appearance and easy to operate.



Equipment Parameters



Name Parameter Notes
Round needle Φ5x90L Applicable cylindrical cell: φ 35xL85mm or less
Square needle W18x95L Applicable pouch cells: length (20~85) x width (20~80) x thickness (0.5~10) mm
Adjustable width of guide plate Max.85mm
The rotation direction of the motor can be switched forward/reverse
Motor speed 0~170 rpm adjustable. Reduction ratio: 1:6
Power Supply AC220V/50Hz.110V/60Hz Can be customized
Power 100W
Equipment dimension About L680*W340*H220mm
Size of wooden box after packing About L790*W410*H420mm
Net weight About 29Kg
Gross weight About 45kg
Use site   It can be used in the glove box. Please check whether the space of the glove box matches the overall size of the equipment.
Warranty 1 year warranty, lifetime maintenance
