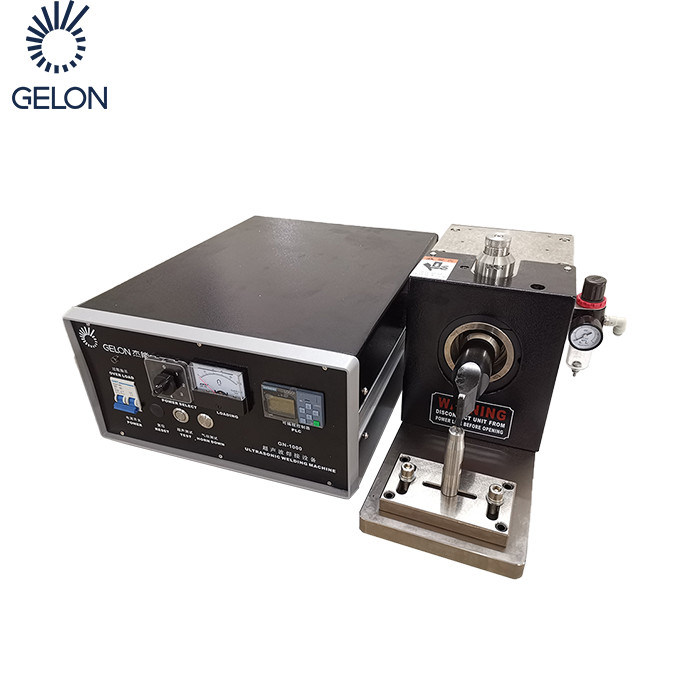

Pneumatic Control Ultrasonic Battery Welder 300W Lithium Ion Battery Spot Welder

Pneumatic Control Ultrasonic Battery Welder 300W Lithium Ion Battery Spot Welder
Pneumatic Control Ultrasonic Battery Welder 300W Lithium Ion Battery Spot Welder Pneumatic Control Ultrasonic Battery Welder 300W Lithium Ion Battery Spot Welder Pneumatic Control Ultrasonic Battery Welder 300W Lithium Ion Battery Spot Welder Pneumatic Control Ultrasonic Battery Welder 300W Lithium Ion Battery Spot Welder

Large Image :  Pneumatic Control Ultrasonic Battery Welder 300W Lithium Ion Battery Spot Welder

Product Details:
Place of Origin: Guangdong, China
Brand Name: GELON
Certification: CE
Model Number: GN-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 6300-24810set
Packaging Details: Standard export package
Delivery Time: 30 works day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month

Pneumatic Control Ultrasonic Battery Welder 300W Lithium Ion Battery Spot Welder

Description
Product Name: Ultrasonic Welding Machine Max. Power Consumption: 300W
Welding Area: 5.2mm(L) X 5.2mm(W) Voltage: 110V AC Or 240V AC 50/60Hz
Ultrasonic Frequency: 30 - 40 KHz Adjustable Frequency Pneumatic Control: Pneumatic Control
Warranty: One Year Limited Warranty With Life Time Support Net Weight: 61 Kg
Input Max Electric Power (VA): 700W-8000W Time Control(S ): <1s
High Light:

Two Heads Ultrasonic Battery Welder

,

Adjustable Frequency Ultrasonic Battery Welder

,

300W Lithium Ion Battery Spot Welder

Machine For Ultrasonic Welding Machine Lithium Ion Battery Equipment Spot Welder



Description:

Ultrasonic welding Machine as a clean,high efficiency, precise and economic welding technology, ultrasonic welding has been widely used in many industries such as battery production, electronics, appliances and auto manufacture etc..



Index:

Max. Power Consumption 300W
Welding Area 5.2mm(L) x 5.2mm(W)
Voltage 110V AC or 240V AC 50/60Hz
Welding Head Two types of patterns for various uses:
for welding both aluminum & copper current collectors from 2 to 25 layers
Two welding heads and three welding bases are included
Ultrasonic Frequency 30 - 40 kHz Adjustable frequency
Pneumatic Control Pneumatic Control
Product Dimensions Welder: 300mm(L) x 460mm(W) x 275mm(H)
Controller: 365mm(L) x 485mm(W) x 200mm(H)
Warranty One year limited warranty with life time support
Net Weight 61 kg




Pneumatic Control Ultrasonic Battery Welder 300W Lithium Ion Battery Spot Welder 0Pneumatic Control Ultrasonic Battery Welder 300W Lithium Ion Battery Spot Welder 1Pneumatic Control Ultrasonic Battery Welder 300W Lithium Ion Battery Spot Welder 2



Pneumatic Control Ultrasonic Battery Welder 300W Lithium Ion Battery Spot Welder 3Pneumatic Control Ultrasonic Battery Welder 300W Lithium Ion Battery Spot Welder 4



What we supply:
1. Full set of lithium battery materials, including :
LiFePO4, LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and Other Cathode&Anode Battery Materials; Aluminum foil, Copper foils, Battery separator,etc.

2. Full set of lithium battery equipment, for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3. Full set of lithium battery technology.
We can design the laboratory and production line according to customer's request.
