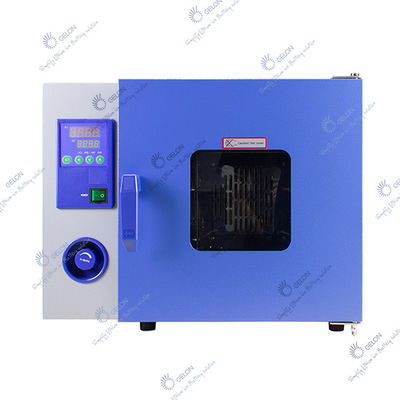

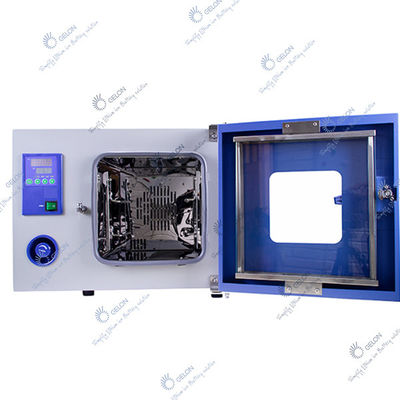

Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control

Certification
China Shandong Gelon Lib Co., Ltd certification
China Shandong Gelon Lib Co., Ltd certification
I'm Online Chat Now

Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control

Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control
Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control

Large Image :  Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-6050 GN-6020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 500usd-1100usd
Packaging Details: Standard export package
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets /month

Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control

Description
Name: Vacuum Oven Application: Baking Materials
Vacuum Pumpp: Optional Power Supply: Standard AC220V 50HZ, 110V Can Customize
Power: 850W Temperature Range: RT+10~300℃
Temperature Resolution: 0.1℃ Temperature Fluctuation: ±1℃
Vacuum: <133Pa Operating Ambient Temperature: +5~40℃
Timing Range: 0~9999min Shelf: Two
High Light:

Battery Production Vacuum Drying Oven CE

,

200C Vacuum Drying Oven

,

53L Heat Treat Oven

Battery Production Equipment vacuum oven for lab research



Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control 0



Ⅰ.Features

  • Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.
  • 3" (7.6 cm) glass wool insulation prevents heat loss from working chamber.
  • Silicone door gasket and positive latch door maintain seal at all vacuum levels.
  • Exclusive polycarbonate safety shield protects door glass.
  • Easy-to-clean #304 stainless steel chamber interior.
  • Vacuum and air lines constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.
Type

GN-6020



Power Supply Standard AC220V 50HZ, 110V can customize
Power 400W
Temperature Range

RT+10~250℃



Temperature resolution 0.1℃
Temperature fluctuation ±1℃
Vacuum <133Pa
Operating ambient temperature +5~40℃
Inner Chamber size(mm)W*D*H 300*300*275
Outside size(mm)W*D*H 605*490*450
Shelf one
Weight About 50kg
Timing range 0~9999min
Studio material Stainless steel liner






Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control 1Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control 2
Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control 3
Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control 4
Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control 5
Battery Production 53L 200C Vacuum Drying Oven Heat Treat Oven With Temperature Control 6
