Product Details:
|
| Brand: | Gelon | Lamination Speed: | Can Be Customization |
|---|---|---|---|
| Accuracy Of Laminated: | ≤±0.5mm | Compressed Sir Source: | 0.5~0.8MPa |
| Warranty: | 1 Year | Laminated Type:: | Z |
| Core Components: | PLC, Gear, Pump | ||
| High Light: | PLC Battery Stacking Machine,Z Shaped Battery Stacking Machine |
||

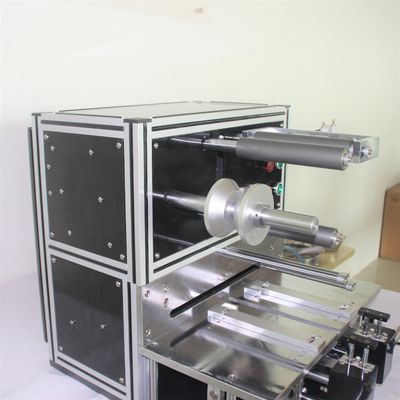

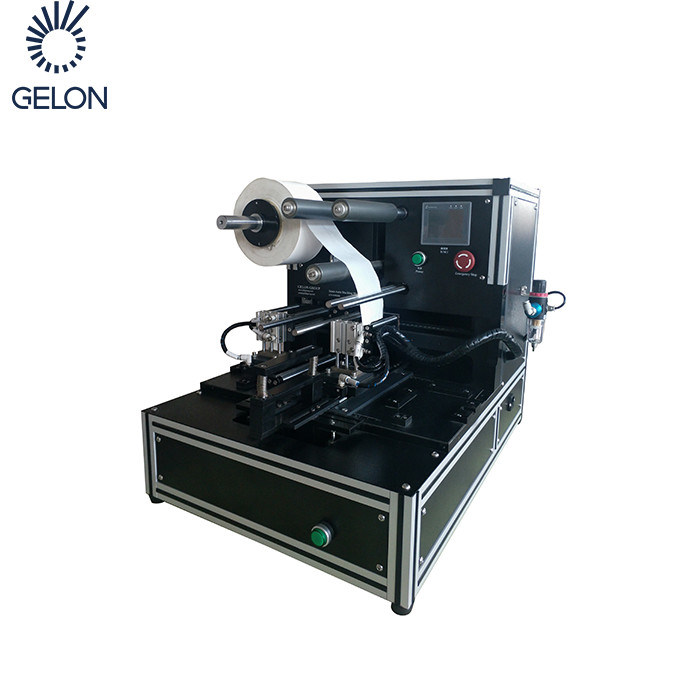

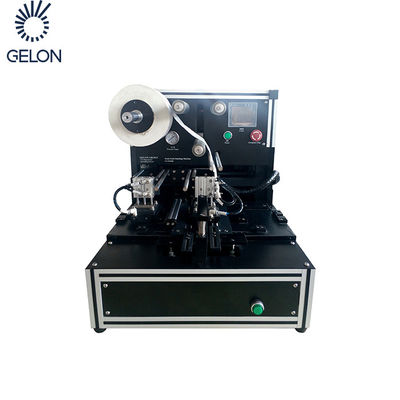

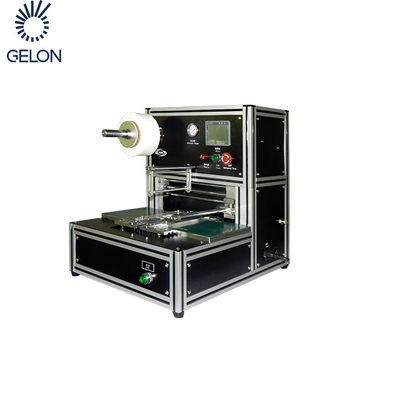

Gelon Lithium ion Pouch Cell Batteries Semi-Auto Desktop Stacking Machine one stop solution
This equipment is suitable for the lamination process of lithium ion battery electrodes. The equipment adopts a tension roller structure design, automatic constant tension control of the coil isolation film, and the motor drives the left and right movement to realize the Z-type lamination. In this way, the entire cell’s stacking assembling is realized. the separator feeding adopts constant tension, and there is the automatic correction function of the electrode during the feeding process, and the feeding is neat and consistent; it has the characteristics of high stacking efficiency and high precision. Different electrode sizes can be realized by adjusting the fixture, which is suitable for R&D and sample production of laminated lithium-ion batteries.
1.Desktop type, which can be placed on an ordinary desktop;
2.Z-shaped semi-automatic stacking, automatic separator tension control;
3.Applicable cell stacks have a large size range, and battery size changes can be achieved by adjusting the fixture;
4.The number of stacking is automatically counted, reset manually, and a digital display counter is designed;
5.Use push button switch to control cylinder movement, PLC drive;
6.The electrode is placed manually, and the fixture assists the positioning to ensure the neatness of the stack;
| No | Item | Data | ||
| 1 | Power | 500W | ||
| 2 | Size | L630*W710*H850mm | ||
| 3 | Weight | 110kg | ||
| 4 | Laminated type | Z-shaped | ||
| 5 | Lamination speed | 12/s piece | ||
| 6 | Laminated layers | Max.80 | ||
| 7 | Accuracy of laminated | ≤±0.5mm | ||
| 8 | Max Separator diameter | 110mm | ||
| 9 | Separator width | Max.200mm | ||
| 10 | Compressed sir source | 0.5~0.8MPa | ||
Our Services
We could supply one stop solution ( turn key project) for you.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
