Product Details:
|
| Brand: | Gelon | Product Name: | Pouch Cell Case Forming Machine |
|---|---|---|---|
| Maximum Feed Size: | L150mm *W60mm/Can Be Customization | Forming Pressure&speed: | Can Be Adjustable |
| Warranty: | 1 Year | ||
| High Light: | Al Laminated Film Forming Machine,Battery Film Forming Machine CE,CE Pouch Cell Case Forming Machine |
||

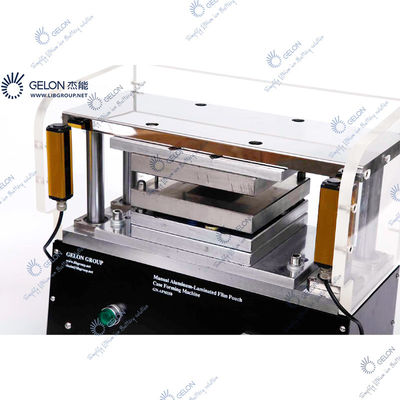

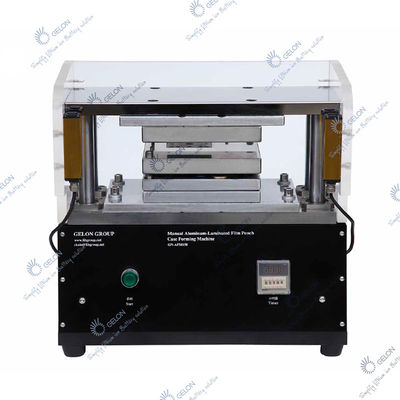

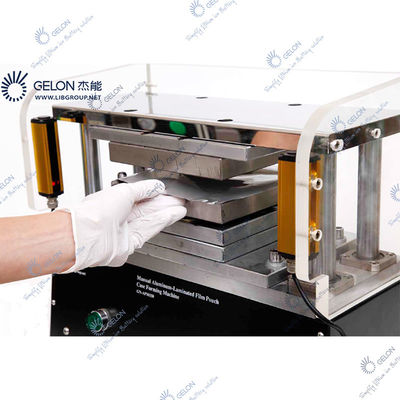

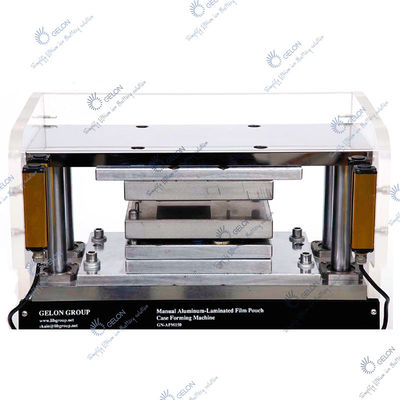

Pouch Cell Forming Battery Equipment Laboratory Semi-Auto Al-Laminated Film Machine
This equipment is to use the pressurized cylinder to drive the mold, and when the pressure is lowered to the pressurized action, the aluminum mold punching effect is completed.
1. The upper frame of this machine is made of profile and sheet metal.
2. This machine is driven by a pressurized cylinder, which saves energy and has a compact structure and high efficiency;
3. The upper and lower templates have high strength and stable performance;
4. The machine has perfect safety protection performance, double button operation protection, and safety light curtain protection;
5. Small size, which can save space;
6.It can be customization
| No. | Item | function |
| 1 | Upper/lower template mechanism | Mould fixing plate |
| 2 | Guiding mechanism | Up and lower precision guidance |
| 3 | Bottom plate mechanism | Main fixing seat |
| 4 | Lower punch mechanism | Al-laminated film stamping and forming |
| 5 | Frame mechanism | Support and cover of the whole machine |
| 6 | Solenoid valve | Pneumatic drive |

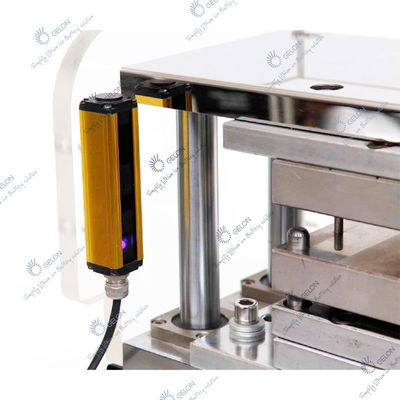

| 7 | Safety light curtain | Safety protection function |
| 8 | Pressurized cylinder | Al-laminated film is compressed and formed without wrinkle |
| 9 | Pressurized cylinder | Al-laminated film forming |
| 10 | Relay | Equipment operation |
| 11 | other | other |
Our Services
We could supply one stop solution ( turn key project) for you.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
