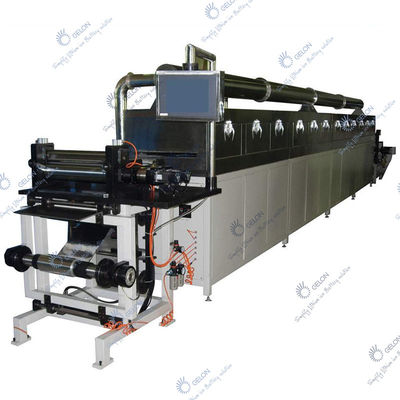

Comma Doctor Blade Battery Production Line , Lithium Battery Electrode Coating Machine

Comma Doctor Blade Battery Production Line , Lithium Battery Electrode Coating Machine
Comma Doctor Blade Battery Production Line , Lithium Battery Electrode Coating Machine
Comma Doctor Blade Battery Production Line , Lithium Battery Electrode Coating Machine Comma Doctor Blade Battery Production Line , Lithium Battery Electrode Coating Machine Comma Doctor Blade Battery Production Line , Lithium Battery Electrode Coating Machine

Large Image :  Comma Doctor Blade Battery Production Line , Lithium Battery Electrode Coating Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-360
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 11740-12042/set
Packaging Details: Standard Export wooden
Delivery Time: 30 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 3 set per month

Comma Doctor Blade Battery Production Line , Lithium Battery Electrode Coating Machine

Description
Power Supply: AC380V, 50Hz Basic Material Thickness: Al Foil 0.010~ 0.030mm ; Cu Foil 0.006-0.030mm
Basic Material Width: 100-320mm The Max.thickness Of Wet Coating: 80-400um
Coating Stroke: 10-800mm The Coating Speed: 0. 3 ~0.8m/min
Production Name: Battery Production Line Comma Doctor Blade Lithium Battery Electrode Coating Machine Warranty: 1 Year
High Light:

Comma Doctor Blade Battery Production Line

,

320mm Battery Electrode Coating Machine

,

0.8m/min Battery Electrode Coating Machine

Battery Production Line Comma Doctor Blade Lithium Battery Electrode Coating Machine



Automatic coating machine adopt PLC touch screen to control tension,correction,servo,temperature and other system,high integration of the mechanical structure and high integrated closed-loop control system,reduce the equipment footprint,energy efficient,suitable for lagre-scale production of lithium battery production.


Type: Blade doctor, slot die coater


Coating accuracy:
1.dry thickness of the accuracy tolerance: single side cathode: ±2.5μm, single side anode: ±2.5μm(testing 4-5 point on the transverse section,100mm on the Vertical section)
2..coating the positive and negative alignment tolerance:≤ ± 1.0mm
3.The average length tolerance: ≤ ± 1.0mm ;
4.The average width of the tolerance: ≤ ± 1.0mm .



Basic maaterial thickness
Aluminum foil 0.010-0.030mm;Copper foil 0.006-0.030mm
Basic material width
Aluminum foil 100-320mm;Copper foil 100-320mm
The max coating width
320mm
The max coating wet thickness
80-400um(viscosity of the slurry be allowed)
The mechanical tape speed
0.3-1.5m/min(max)
The coating speed
0.5-0.8m/min(different from the slurry material,thickness,viscosity)





Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment

Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....

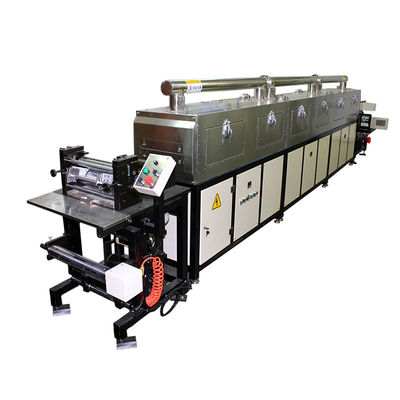

Comma Doctor Blade Battery Production Line , Lithium Battery Electrode Coating Machine 0Comma Doctor Blade Battery Production Line , Lithium Battery Electrode Coating Machine 1

Comma Doctor Blade Battery Production Line , Lithium Battery Electrode Coating Machine 2

What can we supply:

1.) full set of lithium battery materials,including :
LiMn2O4, LTO, NCA, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB) and other cathode&anode battery materials; Alumimun foil, copper foils, battery separator, etc.


2.) full set of lithium battery equipments, for example:
Mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.


3.) full set of lithium battery technology:
We can design the laboratory and production line,according to customer's request.
