40KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line

40KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line
40KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line 40KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line 40KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line 40KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line

Large Image :  40KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-WM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $6350-$87500/set
Packaging Details: Standard wooden box for export.
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 50 sets per month

40KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line

Description
Production Name: Ultrasonic Welding Machine Usage: Lithium Ion Battey Production Line
MOQ: 1 Set Customzie: YES
Shipping: By Sea/Air/Express/Land Supply: Lithium Ion Battery Production Equipment
Max Input Power: 800, 1000 Etc Frequency: 40 KHZ
High Light:

Lithium Battery Ultrasonic Welding Machine

,

40KHZ Battery Welding Equipment

,

Ultrasonic Welding Battery Production Equipment

Battery equipment manufacturer Gelon Ultrasonic Welding Machine for lithium battery production line

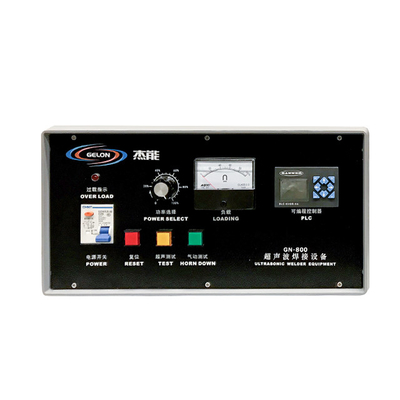

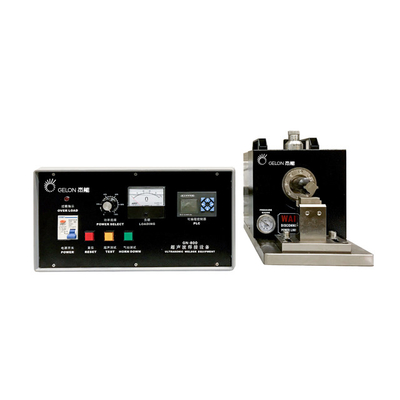

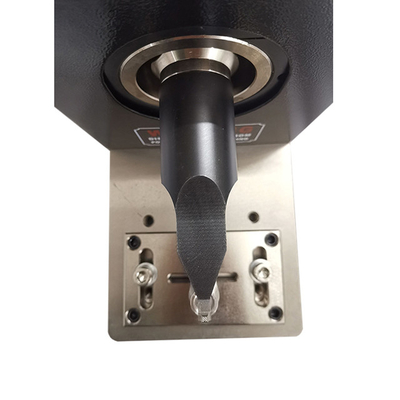

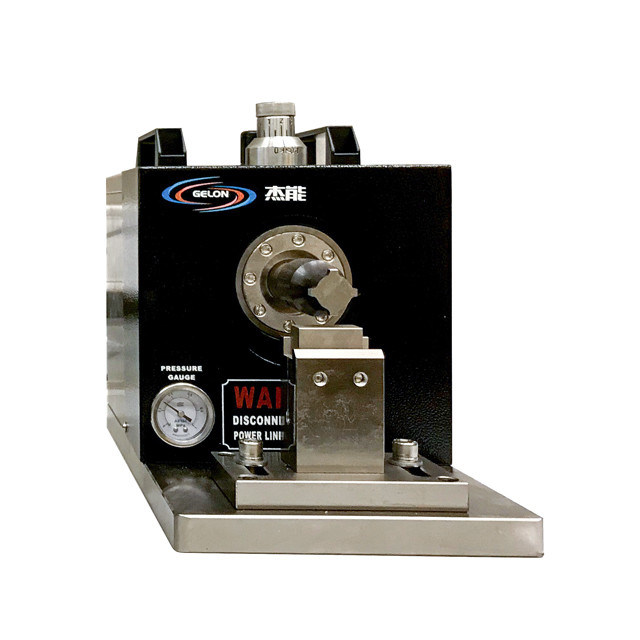

GN-800 is a ultrasonic metal welder designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-Ion pouch cells in R&D laboratories.This welder is suit for max.of 20 layers electrodes welding.(If you need more layers welder,pls contact us).



Index:

1. Input voltage: 220V AC 50Hz
2. Max. Power Consumption:0-800W
3. Welding Area:4mm(L) x 4mm(W)
4. Ultrasonic Frequency:30 - 40 kHz Adjustable frequency
5. Pneumatic Control:Air pressure at 0.5-0.8MPa (Air Compressor is not included)



40KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line 040KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line 1

Items and Specifications:





Item No. Frequency
(KHz)
Input Max
Electric Power
(VA)
Power Air Pressure
(Mpa)
Time
control(S)
NW(kg)
GN700 40 700 220V±10% 0.1-0.5 <1s 50-60
GN800 40 800 220V±10% 0.1-0.5 <1s 50-60
GN1000 25 1000 220V±10% 0.1-0.5 <1s 50-60
GN2000 20 2000 220V±10% 0.2-0.5 <1s 70-80
GN3000 20 3000 220V±10% 0.-0.5 <1s 70-80
GN4000 20 4000 220V±10% 0.2-0.5 <1s 70-80
GN4500 20 4500 220V±10% 0.2-0.5 <1s 70-80
GN5000 20 5000 220V±10% 0.2-0.5 <1s 70-80
GN5500 20 5500 220V±10% 0.2-0.5 <1s 70-80
GN6000 20 6000 220V±10% 0.2-0.6 <1s 70-80
GN6500 20 6500 220V±10% 0.2-0.6 <1s 70-80
GN8000 20 8000 220V±10% 0.2-0.6 <1s 70-80





40KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line 2





40KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line 3

Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....

40KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line 440KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line 5

40KHZ Gelon Ultrasonic Welding Machine For Lithium Battery Production Line 6


What can we supply:

1.) full set of lithium battery materials,including :
LiMn2O4, LTO, NCA, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB) and other cathode&anode battery materials; Alumimun foil, copper foils, battery separator, etc.


2.) full set of lithium battery equipments, for example:
Mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.


3.) full set of lithium battery technology:
We can design the laboratory and production line,according to customer's request.
