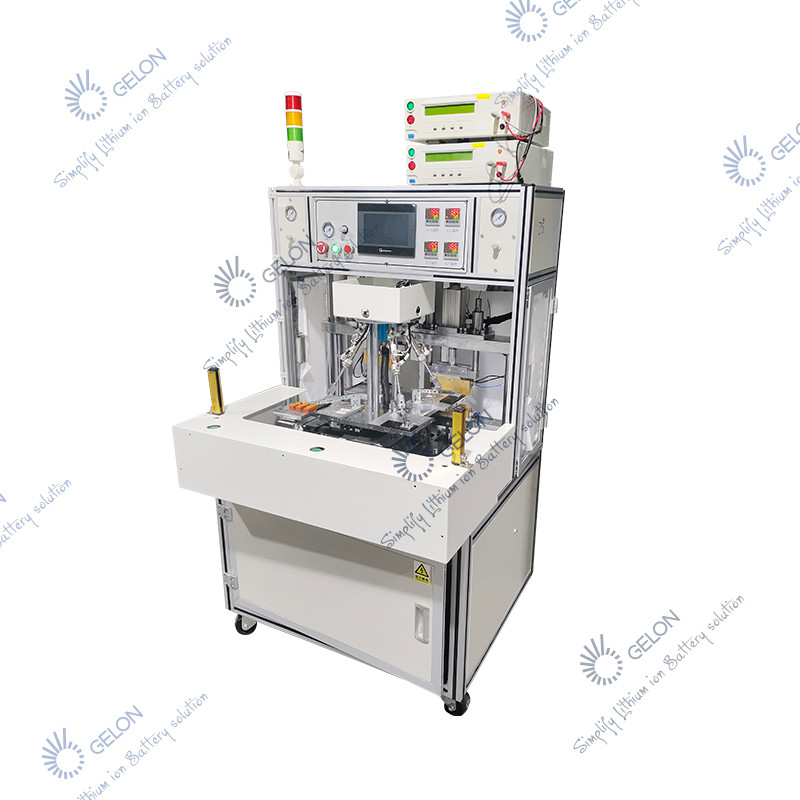

Soft Pack Battery Heat Sealer , Rotary Top Side Sealing Battery Assembly Machine

Soft Pack Battery Heat Sealer , Rotary Top Side Sealing Battery Assembly Machine

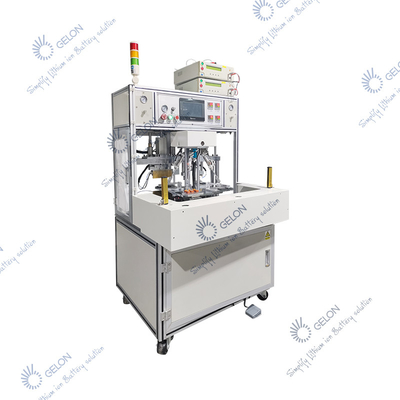

Soft Pack Battery Heat Sealer , Rotary Top Side Sealing Battery Assembly Machine Soft Pack Battery Heat Sealer , Rotary Top Side Sealing Battery Assembly Machine Soft Pack Battery Heat Sealer , Rotary Top Side Sealing Battery Assembly Machine

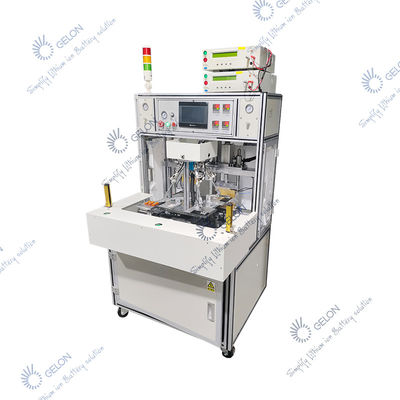

Large Image :  Soft Pack Battery Heat Sealer , Rotary Top Side Sealing Battery Assembly Machine

Product Details:
Place of Origin: China
Brand Name: GELON
Certification: CE
Model Number: GN-360S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US 1000-10000 set
Packaging Details: wooden box
Delivery Time: 5-15 sky
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 set per month

Soft Pack Battery Heat Sealer , Rotary Top Side Sealing Battery Assembly Machine

Description
Product Name: Battery Sealer Power Supply: 220V/50Hz;
Power: 3.5KW Compressed Air: ≥0.6Mpa (0-maximum Air Pressure Adjustable)
Equipment Size (W X H X D): ≈870x870x1500mm Turntable Form: 4 Stations
Top Seal: ≤350mm Side Seal: ≤350mm
Sealing Width: 2-10mm Top Seal Width: 4mm
Side Seal Width: 6mm (customizable) Edge Thickness: 0.19-0.3mm
High Light:

10mm Battery Heat Sealer

,

350mm Battery Heat Sealer

,

PLC Battery Assembly Machine

Battery Heat Sealer Rotary Top Side Sealing Soft Pack Battery Assembly Machine





Functional Overview:

1. Suitable for heating packaging on the top and side of flexible packaging lithium batteries



Process flow:
2. The battery is loaded into the jig first, and the jig is placed on the positioning pin of the turntable at the loading position. The battery will be conveyed intermittently with the turntable, sequentially from the upper material position → the cylinder presses the battery body → top sealing → side sealing → down Material level, complete top-side sealing and side-side sealing at the corresponding station, take it out to the unloading position, and complete the top-sealing and side-sealing processes



Process performance:
a) Packaging temperature and packaging time can be preset
b) With low and high temperature alarm function
c) The battery is free of leaks or repeated packaging
d) Set up light curtain safety protection, rear door switch protection
e) The programmable controller PLC is used to realize automatic control, the touch screen realizes man-machine dialogue, and the operation and setting are convenient
f) Has output statistics function
g) With manual, automatic operation function, fault alarm function
h) Aluminum alloy profile frame
i) Equipment spraying color: according to the supplier's standard color sample (computer white)
j) The whole machine runs safely and stably, with reliable control and convenient operation.



Power Supply 220V/50Hz
Power 3.5KW
Compressed Air ≥0.6Mpa (0-MaximumAir Pressure Adjustable)
Equipment Size (W x H x D) ≈870x870x1500mm
Turntable Form 4 Stations
Top Seal ≤350mm
Side Seal ≤350mm
Sealing Width 2-10mm
Top Seal Width 4mm
Side Seal Width 6mm (Customizable)
Edge Thickness 0.19-0.3mm
Production Capacity 200~400 Times/Hour
Encapsulation Time 0-99.9 Seconds Adjustable

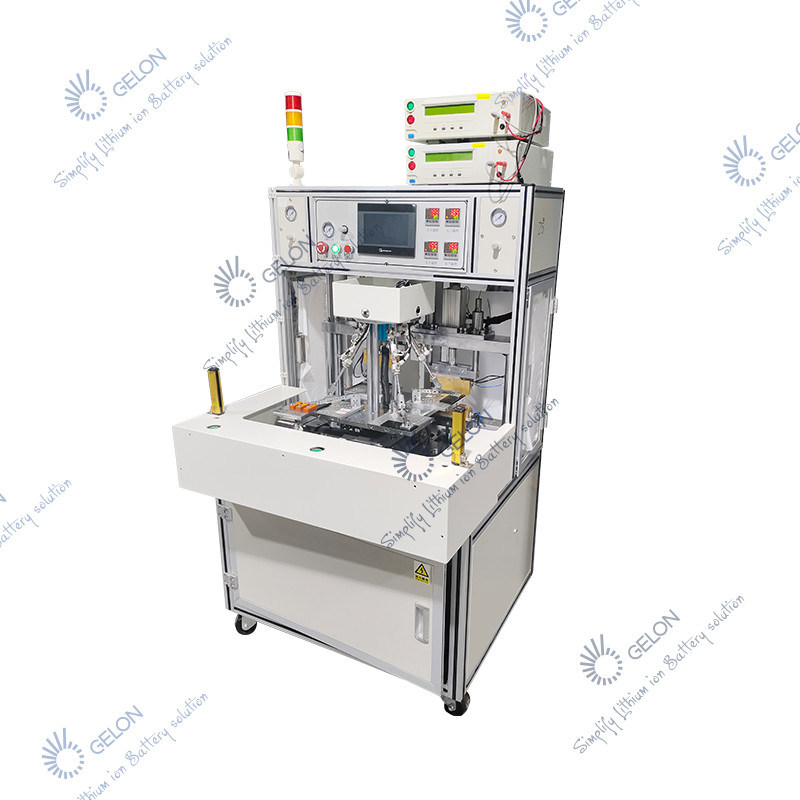

Soft Pack Battery Heat Sealer , Rotary Top Side Sealing Battery Assembly Machine 0
