0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine

Certification
China Shandong Gelon Lib Co., Ltd certification
China Shandong Gelon Lib Co., Ltd certification
I'm Online Chat Now

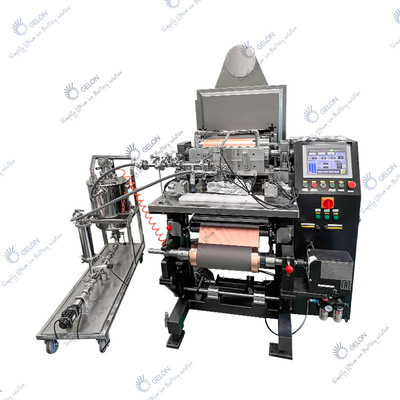

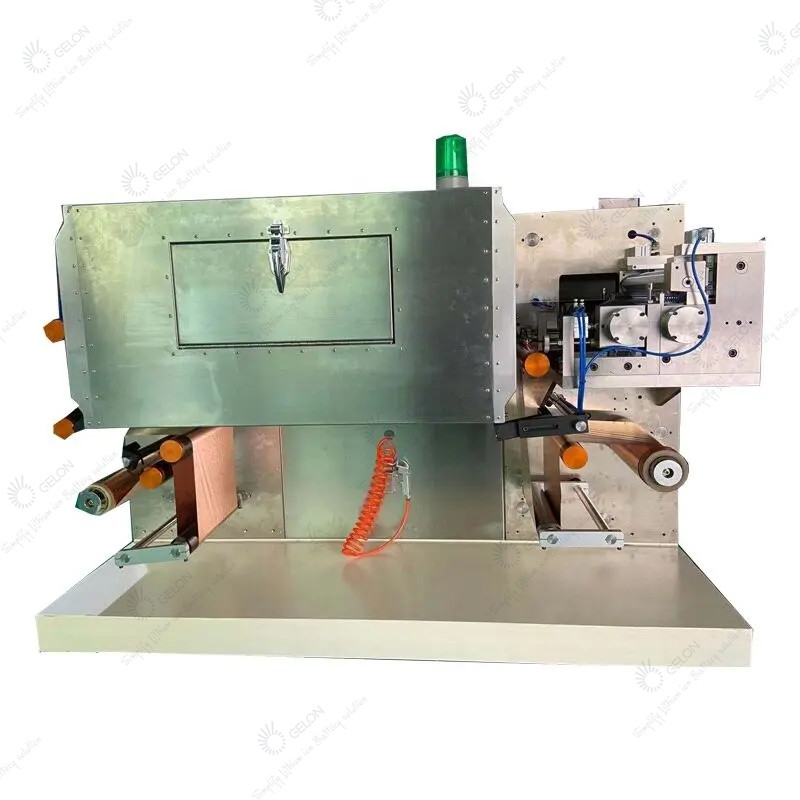

0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine

0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine
0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine 0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine

Large Image :  0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine

Product Details:
Place of Origin: Shandong, China
Certification: CE
Model Number: CN- C360
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 30,000/set
Delivery Time: 7-45 sky
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99/set/moon

0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine

Description
Brand Name: Gelon Packaging Details: Standard Export Packagen Of Cylinder Cell Lab Line
Product Name: Roll To Roll Battery Electrode Coating Machine Core Components:: PLC, Engine, Motor
Advantage: Can Be Customized Warranty: 1 Year
Application: Electrode Coating After-sales Service Provided: Video Technical Support, Online Support
Machinery Test Report: Provided Port: Qingdao,Shenzhen,Shanghai
High Light:

PLC Electrode Coating Machine

,

Roll To Roll Electrode Coating Machine

,

0.3m/min Battery Electrode Coating Machine

Electrode Coating Machine Roll to Roll Battery Electrode Coating Machine
Product Overview




The intermittent lab coating machine is a three-roll transfer coating equipment, which can be used for continuous and intermittent coating. It is convenient to be used in the surface coating process of various substrates. Especially in the lithium ion battery industry, the equipment is convenient for researchers to use, while meeting the requirements of coating accuracy and consistency is the same as the design of production, drying effect is excellent, is lithium ion batteries, super capacitors, Ideal choice for nickel batteries and other secondary battery R & D and small trials.
FEATURES AT A GLANCE
Characteristic:
1. Can freely switch to realize continuous and intermittent coating;
2. Base material tension control, stable strike-band, and equipped with rectifying devices;
3. Hot-air oven, blowing on top and bottom, with good drying effect;
4. Three roll transfer coating with wider coating windows;
5. Comma scraper metering, with precision adjustment mechanism, to obtain high coating accuracy;
6. PLC control, touch screen operation, easy to use;
7. Alternative solvent recovery treatment units;
0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine 0
0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine 1
0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine 2
0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine 3
0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine 4
0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine 5
PRODUCT SPECIFICATIONS
No
Item
Data
1
Suitable system
Cathode and anode electrode coating process of Lithium Iron Phosphate, Lithium Cobalt, LiMnO4, etc.
2
Operating substrate thickness
Al: 11~30um Cu: 8~30um
3
Guaranteed coating width
Within 300mm
4
Equipment mechanical running speed
1m/min
5
Equipment coating speed
0.3m/min
6
Suitable viscosity of slurry
2000~12000 Cps
7
Single side coating dry thickness range
50-150μm
8
Minimum intermittent length
5mm
9
Multistage minimum coating length
20mm
10
Maximum roll diameter
Ф250mm
11
Doctor knife structure
Double-sided comma scraper
12
Oven structure
Single layer independent heating, upper and lower arrangement
13
Oven length
1 m / block
14
Oven temperature
Design Max 120 ℃, temperature difference in single oven ≤ 5 ℃
15
Mechanism
Rewinding and unwinding
16
Control system
Touch screen, PLC, module, servo system



Lab cell production line
Volatage and Capacity Can be Customzied
Cylinder cell production line
Volatage and Capacity Can be Customzied
Pouch cell production line
Volatage and Capacity Can be Customzied
Automatic production line
Volatage and Capacity Can be Customzied







Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment
Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....
0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine 6
0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine 70.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine 8

Gelon Automatic Pouch Cell Production Line :

0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine 9



0.3m/min Electrode Coating Machine , Roll To Roll Battery Electrode Coating Machine 10
