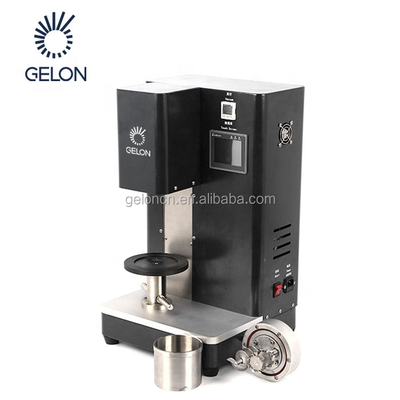

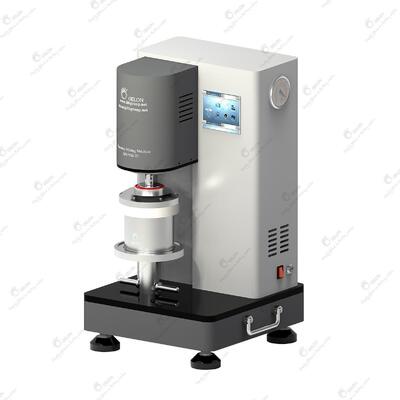

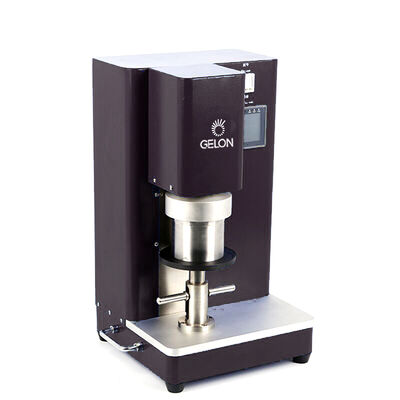

High Viscosity Lithium Battery Slurry Mixer | Planetary Vacuum Mixer for Li-ion Electrode Slurry Production Stainless Chemicals

Name

Parameters

Remarks

Vacuum Degree

Built-in vacuum generator with a vacuum degree equal to or greater than -70 kPa.

Mixing Tank Volume

50ml/150ml/250ml/300ml/500ml(only one of the specification is standard)

Tank Volume: 50ml

Effective volume max.30ml

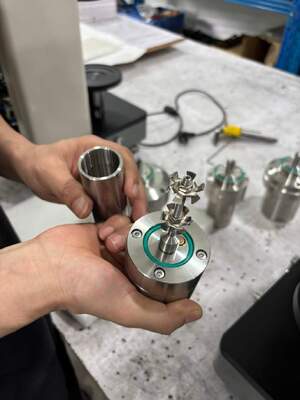

Single paddle mixing

Tank Volume: 150ml

Effective volume max.120ml

Double paddle mixing

Tank Volume: 500ml

Effective volume max.400ml

Double paddle mixing

Mixing Time

0-600min

Freely set as needed

Multi-segment Function

Three segments speed can be set

Max.1,000RPM

Gas source

0.5~0.8MPa Argon, Nitrogen gas (inside glove box), or 0.5~0.8MPa Compressed Air

If the equipment is used inside a glove box, an argon or nitrogen supply must be used. If the equipment is placed outside the glove box, compressed air can be used.

Power Supply

AC220V/50Hz,AC110V/60Hz

Customized

Power

500W

Equipment Dimensions

Approx. L350*W330*H590mm

Dimensions after Packaging

Approx. L450*W440*H770mm

Net Weight

Approx. 40kg

Gross Weight

Approx. 57kg

Usage Site

Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions

Warranty Period

1-year warranty, lifetime maintenance
