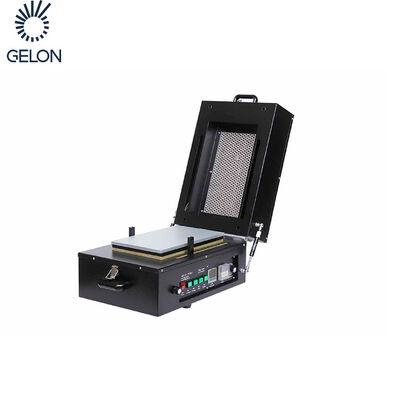

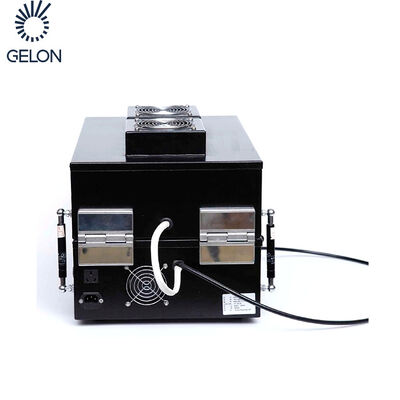

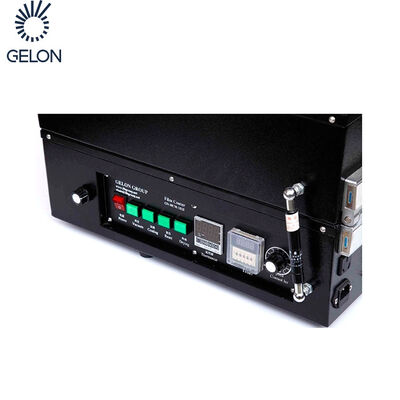

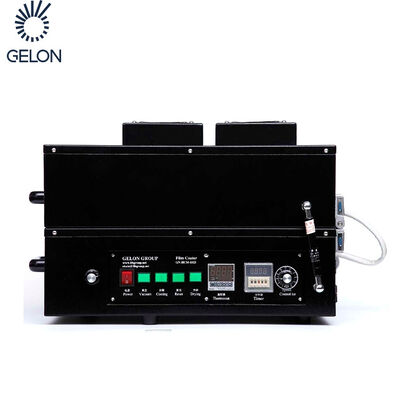

GN-VC-25H Gelon Lab Desktop Precision Coating Machine for Lithium-Ion Battery Electrode Film Coating

Name

Parameters

Remarks

Vacuum

Equipment equipped with vacuum pump

Temperature

Max. 100℃

Recommended around 80°C

Vacuum Suction Plate Effective Dimensions

300mm(L) x 250mm(W)

Other sizes can be customized according to customer needs

Vacuum Suction Plate

Approx. Φ0.5mm/pc

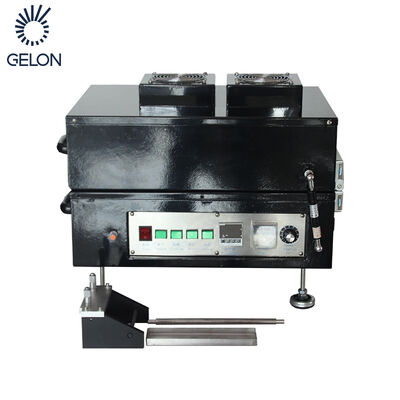

Adjustable Scraper

250mm Standard

The equipment comes standard with a set of scraper that is 250mm wide with adjustable thickness, with a scraper precision of 0.02mm; its adjustable thickness range is 0.01-3.5 mm; (optional 250mm thickness and width adjustable scraper, coating width range can be adjusted freely between 0-250mm)

Gas Source

0.5~0.8MPa argon, nitrogen (inside glove box), or 0.5~0.8MPa compressed air

If the equipment is used in a glove box, argon or nitrogen gas sources must be used.

Compressed air can be used if the equipment is placed outside the glove box.

Power Supply

AC220V/50Hz,

AC110V/60Hz

Customized

Vacuum Pump Flow Rate

70L/Min

Power

2200W

Equipment Dimensions

Approx. L600*510*H370mm

Size of Wooden Box after Equipment Packaging

Approx. L940*W700*H740mm

Net Weight of Equipment

Approx. 50kg

Including vacuum pump

Gross Weight of Equipment

Approx. 82kg

Usage Site

Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions

Warranty Period

1-year warranty, lifetime maintenance

Remarks: An optional viscosimeter can be equipped standardizing the viscosity of the slurry used during the most suitable coating , thereby maintaining the smoothness of the coating in each experiment. After the coating, a vacuum oven may be required to dry the thin film and remove the binder. To ensure the tightness of the coated electrode material with the substrate material, a calendaring machine can be used for rolling.
