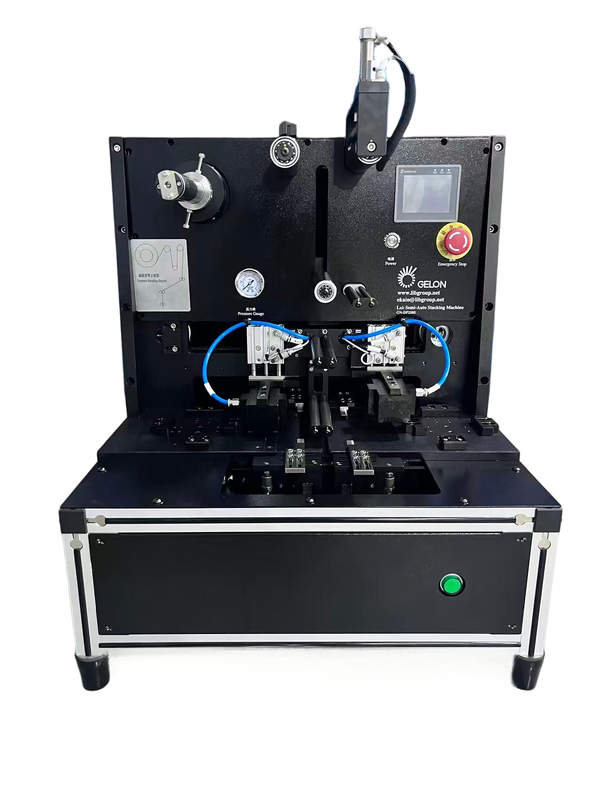

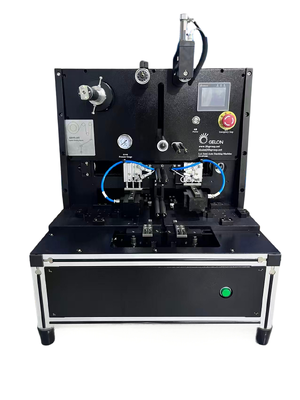

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine
GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine
GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine

Large Image :  GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-DP200S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 8250 USD
Packaging Details: Wooden case
Delivery Time: 35-40 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 500 sets/month
Contact Now

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine

Description
Roller Width: 120mm Based Material Width: Max. 110 Mm
Stacking Accuracy: ≤ ±0.5 Mm Air Pressure: 0.5 – 0.8 MPa
Separator Roll Core: 3 Inch Stack Layer Number: Max. 80 Layers (adjustable)
Equipment Size: L600 × W690 × H800 Mm Net Weight: Approx. 110 Kg
Highlight:

electric hot rolling press machine

,

lithium battery electrode calender

,

Li-Ion production rolling press

GN-DP200S High-Precision Desktop Z-Type Stacking Machine for Pouch Cell R&D with CE Certification Available

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 0

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 1

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 2




Contact for details

Email: Nirvana@libgroup.net

WhatsApp/Mobile/Wechat: +86-18774688262


Products Description

1. Overview


The LAB Pouch Cell Desktop Semi-Auto Stacking Machine is designed for laboratory-scale lithium-ion pouch cell assembly. It provides a stable, precise, and repeatable electrode stacking process for R&D and pilot production.

Using a Z-type stacking method, anode and cathode electrodes are alternately stacked with separator film in between, ensuring accurate alignment and consistent cell structure.

This equipment combines manual electrode loading with semi-automatic stacking control, making it ideal for battery research institutes, universities, and prototype development.


2. Features

  1. Z-type stacking structure for stable and accurate electrode alignment
  2. Adjustable separator tension system to ensure smooth and controlled feeding
  3.  Automatic stacking counter with digital display, supporting reset function
  4.  PLC-controlled pneumatic system for reliable and stable operation
  5.  Jig-assisted positioning design to improve stacking accuracy and consistency
  6.  Flexible fixture system, allowing quick adaptation to different pouch cell sizes
  7. Compact desktop design, suitable for laboratory bench use and limited space environments
  8.  Simple operation and maintenance, ideal for R&D and small-batch prototyping

I.Equipment Accessories List

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 3

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 4

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 5


GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 6

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 7

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 8


GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 9



About Gelon Lib Group

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 10

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 11

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 12

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 13

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 14

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 15

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 16

GN-DP200S LAB Pouch Cell Desktop Semi-Auto Stacking Machine 17
