Lab Coating Machine for Li-ion Battery Electrode with 0～100mm/s Coating Speed 250mm Max Stroke and 0.01～3.5mm Adjustable Blade

Lab Coating Machine for Li-ion Battery Electrode with 0～100mm/s Coating Speed 250mm Max Stroke and 0.01～3.5mm Adjustable Blade
Lab Coating Machine for Li-ion Battery Electrode with 0～100mm/s Coating Speed 250mm Max Stroke and 0.01～3.5mm Adjustable Blade Lab Coating Machine for Li-ion Battery Electrode with 0～100mm/s Coating Speed 250mm Max Stroke and 0.01～3.5mm Adjustable Blade Lab Coating Machine for Li-ion Battery Electrode with 0～100mm/s Coating Speed 250mm Max Stroke and 0.01～3.5mm Adjustable Blade Lab Coating Machine for Li-ion Battery Electrode with 0～100mm/s Coating Speed 250mm Max Stroke and 0.01～3.5mm Adjustable Blade Lab Coating Machine for Li-ion Battery Electrode with 0～100mm/s Coating Speed 250mm Max Stroke and 0.01～3.5mm Adjustable Blade

Large Image :  Lab Coating Machine for Li-ion Battery Electrode with 0～100mm/s Coating Speed 250mm Max Stroke and 0.01～3.5mm Adjustable Blade

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: battery coating machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden boxes
Delivery Time: 10-20 working days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1 set/month
Contact Now

Lab Coating Machine for Li-ion Battery Electrode with 0～100mm/s Coating Speed 250mm Max Stroke and 0.01～3.5mm Adjustable Blade

Description

Lab Coating Machine for Li-ion Battery Electrode Making with Film Applicator and Vacuum Chuck Slurry Coater
Battery Coating Equipment Specifications
No Item Data
1 Coating speed 0～100mm/s
2 Max stroke 250mm
3 Adjustable range of blade 0.01～3.5mm
4 Heating furnace room～200℃
5 Power 220VA frequency 50Hz / 60Hz
6 Doctor-blade 100 mm width
Complete Lithium Ion Battery Solutions

We can supply full set of lithium ion battery materials and equipment:

1. Full Set of Lithium Battery Materials
  • LiMn2O4, LTO, LiNiMnCoO2 (NMC), LiCoO2
  • Graphite (MCMB) and other cathode & anode battery materials
  • Aluminum foil, copper foils, battery separator, etc.
2. Full Set of Lithium Battery Equipment
  • Mixing machine — Coating machine — Oven — Rolling machine
  • Welding machine — Slitting / Cutting machine — Winding machine
  • Sealed machine, etc.
3. Complete Lithium Battery Technology

We can design the laboratory and production line according to customer's specific requirements.

Product Images

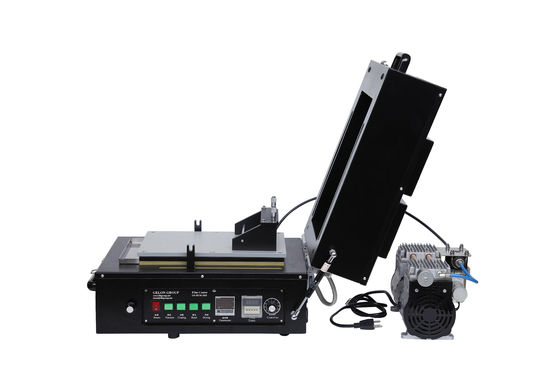

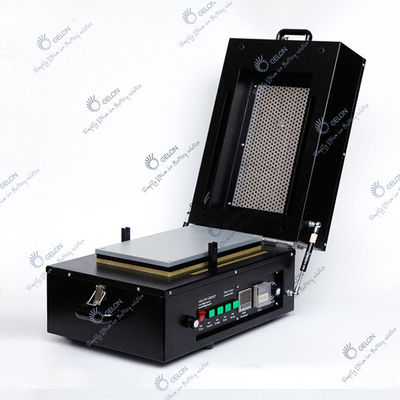

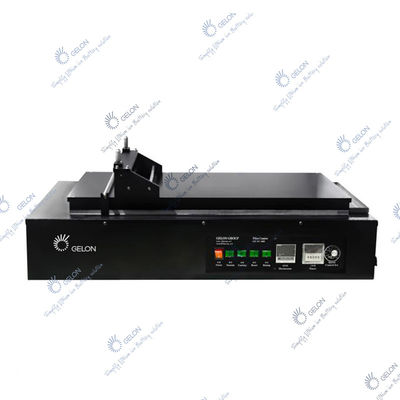

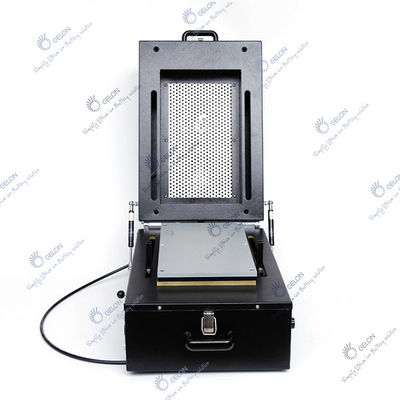

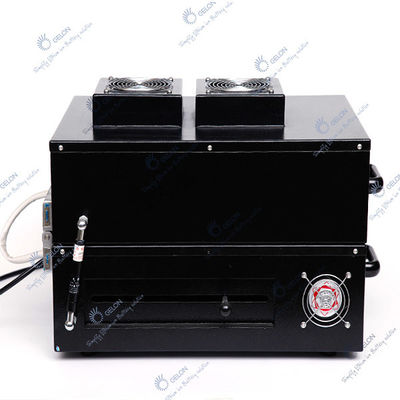

Lab coating machine front view Lab coating machine side view Coating machine operational view Battery electrode coating process Coating machine detailed components
