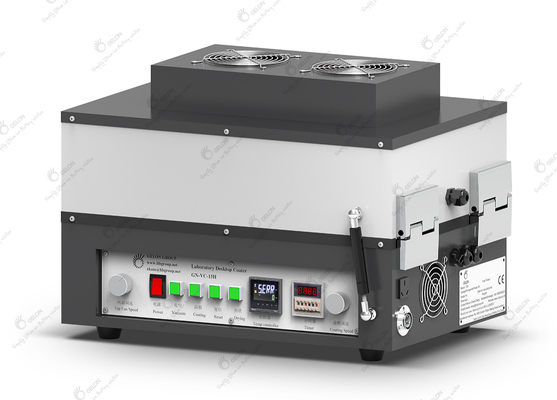

Semi-Automatic Coating Machine for Precise Thin Film Coating on Battery Electrode Slurry in Materials Research & Testing

Name

Parameters

Remarks

Vacuum

Equipped with vacuum pump

Temperature

Max.100℃

Recommended temperature is around 80°C

Vacuum Suction Plate Effective Dimensions

250mm(L) x 150mm(W)

Other dimensions can be customized

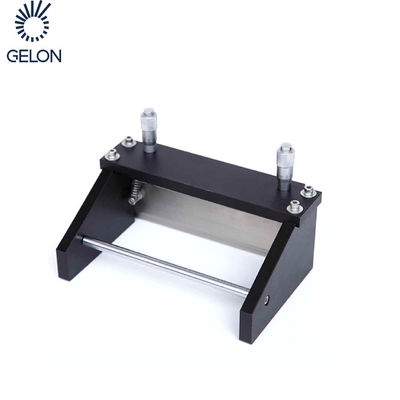

Adjustable Blade

150mm standard

The equipment is standard equipped with one set of 150mm width adjustable blade with an accuracy of 0.02mm; its adjustable thickness range is: 0.01 - 3 mm. (Optionally available: 150mm blade with adjustable thickness and width, allowing coating width to be adjusted anywhere between 0-150mm).

Gas Source

0.5~0.8MPa argon, nitrogen (inside glove box), or 0.5~0.8MPa compressed air

If the equipment is used in a glove box, argon or nitrogen gas sources must be used.

Compressed air can be used if the equipment is placed outside the glove box.

Power Supply

AC220V/50Hz,110V/60Hz

Customized

Vacuum Pump Flow Rate

70L/Min

Power

1,700W

Equipment Dimensions

Approx. L580*W420*H385mm

Dimensions after Packaging

Approx. L900*W540*H560mm

Net Weight

Approx. 50kg

Including vacuum pump

Gross Weight

Approx. 68kg

Usage Site

Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions

Warranty Period

1-year warranty, lifetime maintenance

Note: A viscometer can be optionally configured to determine the optimal slurry viscosity for coating, thereby maintaining smoothness during each experimental coating process.

After coating, a vacuum oven may be required to dry the film and remove the binder. To ensure proper adhesion between the coated electrode material and the current collector substrate, a calendering machine can be used for rolling.
