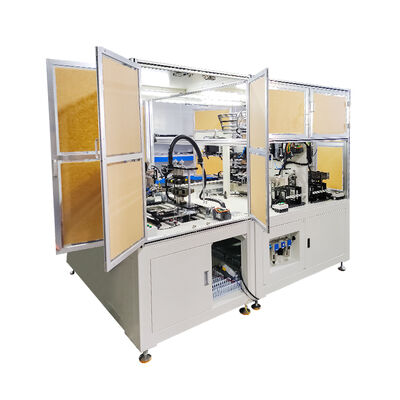

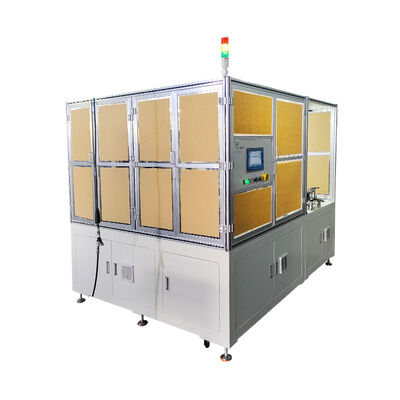

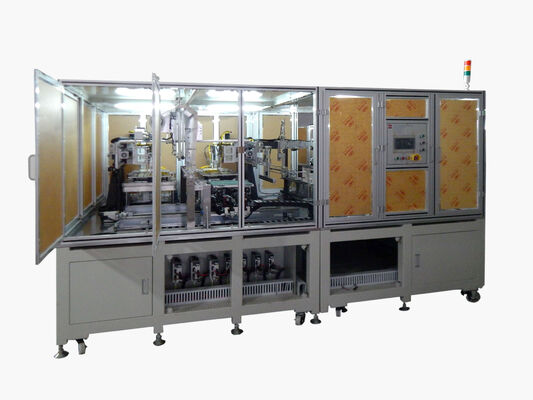

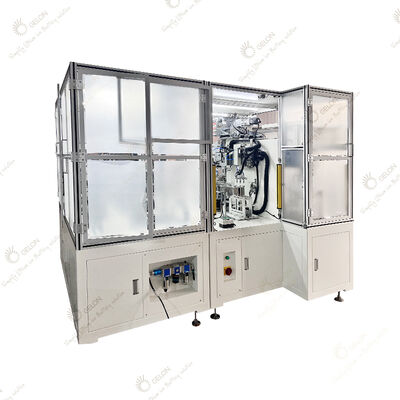

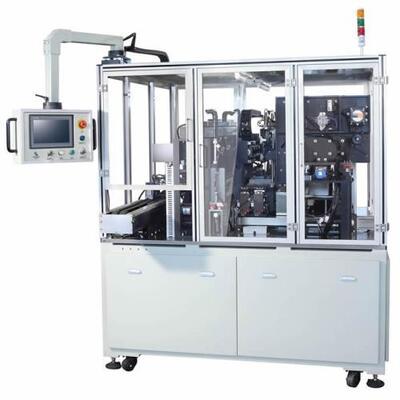

GELON GN-DP200A High-Precision Automatic Stacking Machine with Z-shaped Folding and Linear Servo Motion for Battery Production

1, Support the whole machine

2, Equipped outer cover

1, Electrodes storage

2, Lift the electrodes in the trough in time with the progress of the stack

1.Compress and position electrodes

2.Compress Separators

1.Move the electrodes from the trough to the calibration worktable

2.Move the electrode from calibration worktable to stacking table

3.Adopt double suction cup,with high efficiency and accurate action

1. Feeding with pneumatic tighten method equipped with high level Unwinding correction device;

2. Separator use integral correction method;

3. With unwinding tension control system

1. The electrodes box with brush device to separate the sticky electrodes;

2. The electrodes box with floating blowing device;

3. There is a negative pressure suction pipe at the bottom of the electrode box to ensure that the dust generated during the reclaiming process does not overflow;

4. The contact surface of the electrode box and the electrode is specially treated to avoid damage to the electrode.

1. It has mechanical positioning method to position the electrode to ensure the accuracy of the electrode stacking;

2. The secondary positioning platform has the detection function of multiple pieces sucking. After detecting multiple pieces sucking, it will automatically stop and alarm;

3. Ensure the dust generated during the reclaiming process does not overflow.

1. Ensure electrode does not shift during the stacking process;

2. Ensure the stacking process is always at the same height to meet different cell thicknesses.

3. Can rise and fall with the thickness of the electrode

After stacking completed, cell is sent to tail roll position. after the auto tail roll ,cut off separator.stick adhesive tape on cell.

Remove the glued cells out

Control the safe operation of the whole machine

Remark:

1. After the machine is in place, the purchaser shall cooperate with the supplier to debug until the process requirements of the purchaser are met.
2. The demander appoints professionals to be responsible for the management of equipment and molds, and the supplier is responsible for the training of installation and commissioning.
3. The supplier shall provide operation and maintenance instructions and detailed instructions for related instruments and meters. The demander operates in accordance with the "Operation Manual".
4. The warranty period is one year. During this period, tool loss, etc. are not included.
5. The main body of the equipment is colored in computer white, and the customer can specify the coloring.
