Semi-Auto Cylindrical Cell Crimping Machine with 600W Crimping Power, 300,000 Crimps Die Life, and Precision Crimping for Lithium Battery Assembly

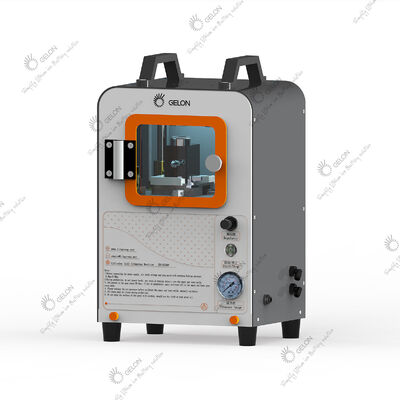

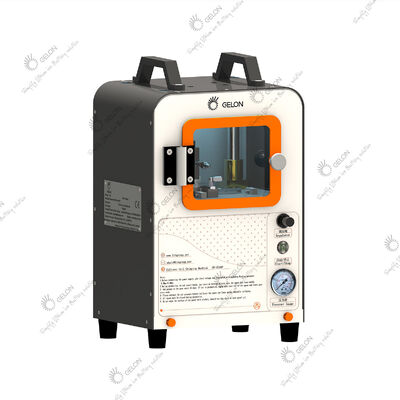

Large Image : Semi-Auto Cylindrical Cell Crimping Machine with 600W Crimping Power, 300,000 Crimps Die Life, and Precision Crimping for Lithium Battery Assembly

Product Details:

Place of Origin:	CHINA
Brand Name:	GELON
Certification:	CE
Model Number:	GN-CC50P

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Plywood
Delivery Time:	30~45 working day
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	50 sets per month

Contact Now

Semi-Auto Cylindrical Cell Crimping Machine with 600W Crimping Power, 300,000 Crimps Die Life, and Precision Crimping for Lithium Battery Assembly

Description

Crimping Die:	18650 Is Standard	Crimping Stroke:	30mm
Die Life:	≤300,000 Times	Crimping Efficiency:	60 Seconds/piece
Gas Source:	0.5~0.8MPa Argon, Nitrogen Gas (inside Glove Box), Or 0.5~0.8MPa Compressed Air	Dimensions:	L306W298H477mm
Packaging:	L430W410H580mm	Net Weight:	42Kg
Gross Weight:	51kg

Semi-Auto Cylindrical Cell Crimping Machine for Lithium Battery Assembly

Product Highlights

High Power

600W crimping power ensures efficient and powerful performance.

Versatile Voltage

Operates on both 110V and 220V, suitable for global use.

Durable Construction

Built with high-quality materials for long-lasting durability.

Precision Crimping

Customized crimping dies for precise handling of various cylindrical cases.

Efficient Operation

Achieves up to 300,000 crimps with a single die, saving time and resources.
