Gelon GN-CP20 Manual Coin Cell Punching Machine with SKD11 Material CR2032 Standard and 300Kg Manual Pressure for Lithium Battery Research

Large Image : Gelon GN-CP20 Manual Coin Cell Punching Machine with SKD11 Material CR2032 Standard and 300Kg Manual Pressure for Lithium Battery Research

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-CP20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	630-660 USD
Packaging Details:	Wooden case
Delivery Time:	25-30 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500 sets/month

Contact Now

Gelon GN-CP20 Manual Coin Cell Punching Machine with SKD11 Material CR2032 Standard and 300Kg Manual Pressure for Lithium Battery Research

Description

Crimping Stroke:	About 30mm	Crimping Efficiency:	60 Seconds/piece
Crimping Die:	CR2032 Is Standard	Dismantling Die:	CR2032 Is Standard
Power Supply:	AC220V/50Hz， 110V/60Hz	Power:	200W
Equipment Dimensions:	≈L334W257H479mm	Size After Packaging:	≈L500W340H820mm
Net Weight:	≈28kg	Gross Weight:	≈33kg
Warranty Period:	1-year Warranty, Lifetime Maintenance	Resulting Discs:	No Burrs And No Indentation After Punching
Punching Die Size:	3~24mm; The Usual Size: 10/12/14/15/16/19/20mm	Working Mode:	Manual
Manual Pressure:	≥300Kg	Pressing Shaft Stroke:	Max. 20mm
Main Material:	SKD11	Material Thickness:	0.01~0.5mm
Press Shaft Stroke:	Max. 20mm	Punchable Material:	0.01mm-0.25mm

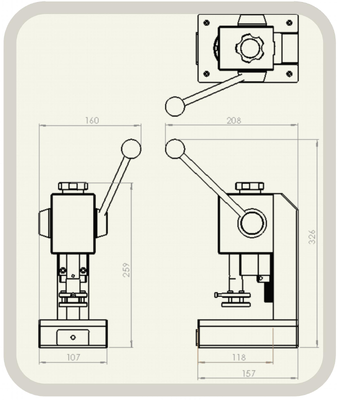

Equipment Dimension:	Approx. L170W200H370mm
Highlight:	SKD11 Material Manual Coin Cell Punching Machine , CR2032 Standard Hand Puncher , 300Kg Manual Pressure Lithium Battery Electrode Separator Die Cutting Machine

Gelon Manual Coin Cell Punching Machine GN-CP20

Gelon GN-CP20 Manual Coin Cell Punching Machine Hand Puncher for Lithium Ion Battery Electrode Separator Sample Preparation

Contact for details:
Email: Kimberley@libgroup.net
WhatsApp/Mobile/Wechat: +86-13686664348

Product Overview

GN-CP20 manual coin cell punching machine is independently developed by Gelon Lib for lithium battery laboratory research and small-batch electrode production, widely adopted by university labs, research institutes, and battery material manufacturers.

Key Features

This compact hand-operated puncher supports punching 0.01-0.5mm thin materials including cathode, anode electrodes, and battery separator paper. Equipped with high-hardness SKD11 quenched steel dies, it produces burr-free, indentation-free circular discs for CR20xx, CR2325, CR24xx series coin cells, with optional die sizes ranging from Φ3-24mm.

The machine features a mini lightweight structure with disassemblable hand lever and material receiving box for easy transfer inside glove boxes. Maximum 20mm pressure shaft stroke and over 300kg manual pressing force ensure stable, clean cutting. Simple die replacement and alignment design support fast size switching.

Technical Specifications

Can pass freely through glove box over Φ200mm
Body made of rust-proof aluminum alloy
Manual pressure >=300Kg
Pressing shaft stroke Max. 20mm
Can punch 0.01~0.5mm thick sheet materials
Work surface: L140mm x W80mm
Punching die size range: Φ3~24mm
Usual sizes: 10/12/14/15/16/19/20mm
Standard die sizes: Φ12mm and Φ16mm
Weight: approximately 6Kg

Complete operation manual and standard dies are supplied together. We provide 1-year full machine warranty and lifelong maintenance service, ideal for battery sample preparation and lab pilot testing.

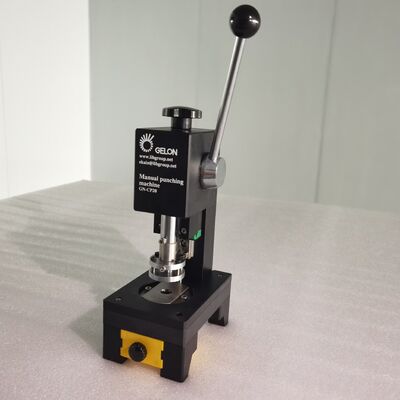

Product Images
