Single Crystal NMC622 Cathode Powder LiNi0.6Co0.2Mn0.2O2 with High Discharge Capacity and Low Impurity Content for Lithium Battery Research

Single Crystal NMC622 Cathode Powder LiNi0.6Co0.2Mn0.2O2 with High Discharge Capacity and Low Impurity Content for Lithium Battery Research
Single Crystal NMC622 Cathode Powder LiNi0.6Co0.2Mn0.2O2 with High Discharge Capacity and Low Impurity Content for Lithium Battery Research
Single Crystal NMC622 Cathode Powder LiNi0.6Co0.2Mn0.2O2 with High Discharge Capacity and Low Impurity Content for Lithium Battery Research Single Crystal NMC622 Cathode Powder LiNi0.6Co0.2Mn0.2O2 with High Discharge Capacity and Low Impurity Content for Lithium Battery Research Single Crystal NMC622 Cathode Powder LiNi0.6Co0.2Mn0.2O2 with High Discharge Capacity and Low Impurity Content for Lithium Battery Research Single Crystal NMC622 Cathode Powder LiNi0.6Co0.2Mn0.2O2 with High Discharge Capacity and Low Impurity Content for Lithium Battery Research Single Crystal NMC622 Cathode Powder LiNi0.6Co0.2Mn0.2O2 with High Discharge Capacity and Low Impurity Content for Lithium Battery Research Single Crystal NMC622 Cathode Powder LiNi0.6Co0.2Mn0.2O2 with High Discharge Capacity and Low Impurity Content for Lithium Battery Research Single Crystal NMC622 Cathode Powder LiNi0.6Co0.2Mn0.2O2 with High Discharge Capacity and Low Impurity Content for Lithium Battery Research Single Crystal NMC622 Cathode Powder LiNi0.6Co0.2Mn0.2O2 with High Discharge Capacity and Low Impurity Content for Lithium Battery Research Single Crystal NMC622 Cathode Powder LiNi0.6Co0.2Mn0.2O2 with High Discharge Capacity and Low Impurity Content for Lithium Battery Research

Large Image :  Single Crystal NMC622 Cathode Powder LiNi0.6Co0.2Mn0.2O2 with High Discharge Capacity and Low Impurity Content for Lithium Battery Research

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: NMC622 GN-S76L
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Price: 110-115USD
Packaging Details: Carton Packaging
Delivery Time: 10 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 500 kgs/month
Contact Now

Single Crystal NMC622 Cathode Powder LiNi0.6Co0.2Mn0.2O2 with High Discharge Capacity and Low Impurity Content for Lithium Battery Research

Description
Co+Ni+Mn: 56.00-62.00 Wt% Li: 7.40±0.20 Wt%
PH: 11.30±0.30 H2O: ≤0.0500 Wt%
Tap-density: ≥1.50 G/cm³ Apparent Density: ≥0.60 G/cm³
SSA: 0.70±0.25 M²/g D10(μm): 2.56
D50(μm): 5.14 D90(μm): 10.02
Crystal Structure: Without Impurity Micro Shape: Ball Shape
Appearance: Black
Highlight:

Single Crystal Structure NMC622 Cathode Powder

,

High Discharge Capacity LiNi0.6Co0.2Mn0.2O2 Powder

,

Low Impurity Content Ternary Cathode Material

Single Crystal NMC622 S76L LiNi0.6Co0.2Mn0.2O2 Cathode Powder

Single crystal NMC622 S76L cathode powder specifically developed for university labs, research institutes, and lithium battery electrode manufacturers.

Contact for details:
Email: Kimberley@libgroup.net
WhatsApp/Mobile/Wechat: +86-13686664348
Product Overview

Single crystal NMC622 S76L (LiNi0.6Co0.2Mn0.2O2) is a high-performance single crystal ternary cathode material engineered for advanced lithium battery research and manufacturing applications.

Chemical Composition Analysis
Parameter Measured Value Standard Range
Total Ni+Co+Mn 60.30 wt% 56.00-62.00 wt%
Li Content 7.37 wt% 7.40±0.20 wt%
pH Value 11.08 -
Moisture Content 0.0176 wt% -
Impurity Control
  • Fe: 0.0015 wt%
  • Cu: 0.0005 wt%
  • Ca: 0.0035 wt%
  • Na: 0.0188 wt%
  • Zn: 0.0002 wt%
Physical Performance
  • Tapped Density: 2.10 g/cm³
  • Apparent Density: 0.91 g/cm³
  • Specific Surface Area: 0.74 m²/g

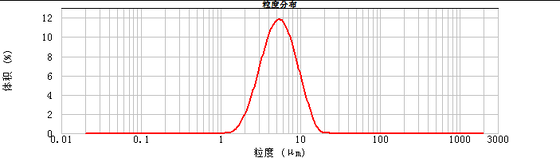

  • Particle Size: D10=2.56μm, D50=5.14μm, D90=10.02μm
  • Spherical single crystal particles without impurity crystal phase
  • Black uniform powder verified by XRD & SEM analysis

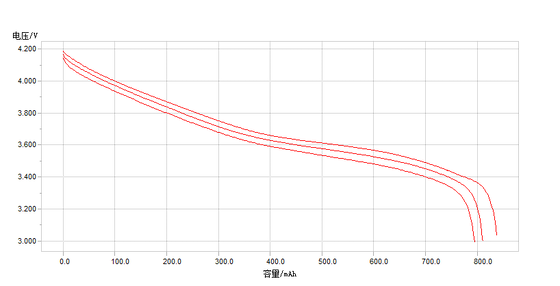

Electrochemical Performance
Test Condition Performance
0.1C Discharge Capacity ≥163 mAh/g
0.5C Discharge Capacity ≥155 mAh/g
1C Discharge Capacity ≥153 mAh/g
0.1C Initial Coulombic Efficiency 88.2%
Median Voltage 3.64V
Internal Resistance ≤33.0 mΩ
Cycle Performance & Stability
  • 100 cycles: 98% capacity retention
  • 200 cycles: 96.5% capacity retention
  • 300 cycles: 94% capacity retention
  • Excellent high & room temperature storage performance
  • Low inflation rate during cycling
Application & Process Guidelines

Compatible with both artificial graphite and natural graphite systems.

Recommended Formula Ratio
  • Active Material: 94.5%
  • Super P: 2%
  • KS6: 1%
  • HSV900: 2.5%
Processing Parameters
  • Suggested Compaction Density: 3.50-3.55 g/cm³
  • Maximum Compaction: ≥3.60 g/cm³
Applications
  • Academic electrochemistry experiments
  • Electrode formula development
  • Prismatic/coin cell prototype testing
  • High-capacity lithium battery mass production

Each production batch includes comprehensive material characterization with XRD, SEM, PSD analysis, and complete electrical cycle test reports.

Product & Equipment Documentation

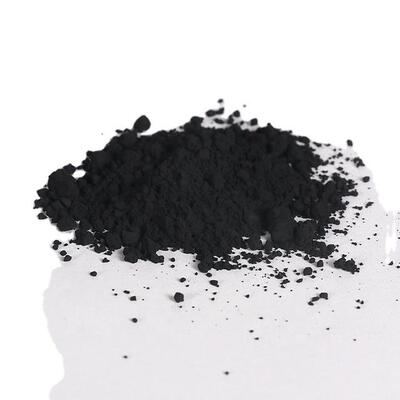

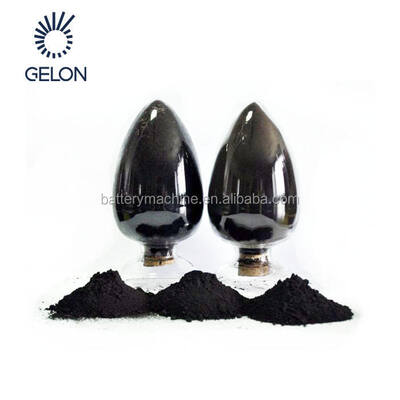

Single crystal NMC622 cathode powder sample
NMC622 powder material characterization
Battery electrode material analysis
Laboratory testing of cathode materials
Quality control of battery materials
GN-CP20 Manual Coin Cell Punching Machine
GN-CP20 Manual Coin Cell Punching Machine
Close-up view of coin cell punching machine components
Punching Machine Components
Detailed view of punching machine components and assembly
Machine Assembly Details
Operational view of coin cell punching machine in use
Machine Operation
Die cutting mechanism of coin cell punching machine
Die Cutting Mechanism
Laboratory demonstration of coin cell preparation equipment
Laboratory Setup
Sample preparation process showing electrode material handling
Sample Preparation
Finished coin cell samples produced using the equipment
Finished Coin Cells
