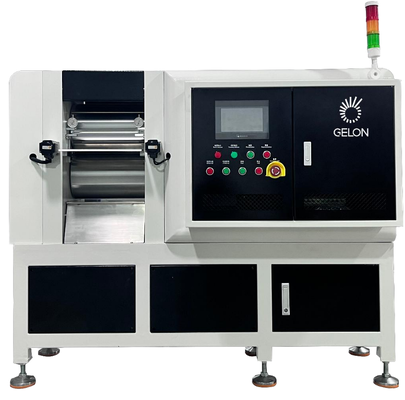

GELON High-Precision Hydraulic Roller Calendering Machine (15-Ton) for Battery Electrode Pressing

No.

Item

Description

1

Overview

1. This product uses a micrometer to adjust and achieve the desired coating thickness of the electrode.

2. The equipment is equipped with a precise adjustable scraper, and the scraper push rod moves it at a constant speed to ensure the uniformity of the slurry coating on the foil.

3. This model of equipment is particularly suitable for making battery electrodes, ensuring the uniformity of the density of the electrodes.

2

Features

1. Drying and heating, with digital temperature display control.

2. Digital display timer, allowing for free setting of drying time.

3. Exquisite appearance, with sheet metal designed in a three-dimensional geometric style, simple and aesthetically pleasing.

3

Notes

1. Before each work session, please carefully clean the scraper with a dust-free cloth moistened with alcohol.

2. Handle high-precision parts such as the scraper, micrometer, or digital display gently without knocking, and place them carefully. When adjusting the micrometer or digital display, ensure symmetrical and even adjustment on both sides.

3. Regularly inspect the screws, nuts, pins, and other fasteners of the machine to prevent malfunctions and accidents due to loosening.

No.

Item

Description

1

Overview

1.The main function is to make the electrode reach the appropriate density under the roll of the calendering, and to meet the required thickness of the electrode according to the coating thickness.

2.This equipment adopts a ball screw wedge gap adjustment structure to adjust the gap between the calendering rolls, and the calendering speed is adjusted by a frequency converter to achieve stepless speed regulation.

2

Performance

1.Electrode calendering method: Using a continuous roller calendering method with gaps and pre-pressure; Pre-pressure adopts hydraulic pressure method, using oil constant pressure and limited clearance working mode, and generating oil pressure through electric boosting method.

2. Calendering transmission method: The upper and lower rollers are driven separately using universal couplings, and the electrodes run smoothly without impact or crawling during continuous coating or gap coating during calendering.

3

Functions

1. The overall casting of the mouth shaped 45 # steel frame of this machine has a large sliding block structure and a high bearing capacity on the shaft.

2. Adopting a constant pressure and limited gap pressing method, the pressure is stable, the roller has high cylindricity, the calendering force is large, the calendered electrode is uniform, and the deformation is small. Greatly improve production efficiency and reduce personnel workload.

3. The electric boosting system adjusts and controls the lifting of the oil cylinder through the touch screen of the human-machine interface to drive the lifting of the roller under calendering.

4. Constant pressure automatic control, adjusting the roller oil pressure through the human-machine interface.

5. The movement value of the calendering is displayed on the human-machine interface screen.

6. Adjust the human-machine interface input to change the gap between the oil pressure and the calendering rollers.

4

Notes

1. Before each work, carefully wipe the surfaces of the two rollers with a dust-free cloth dipped in alcohol to maintain cleanliness.

2. Lubricate the moving parts of the gear with oil to maintain smooth movement.

3. It is not allowed to use air pump blowing to prevent dust from entering the bearing and affecting the accuracy of use.

4. If not in use for a long time, wipe the surface of the roller clean and spray anti rust oil on the surface to protect it from corrosion.

5. Regularly inspect the screws, nuts, pins, and other fasteners in various parts of the machine to prevent malfunctions and accidents caused by looseness.
