Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication

Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication
Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication
Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication

Large Image :  Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: LFP-S13
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Price: 50-55USD

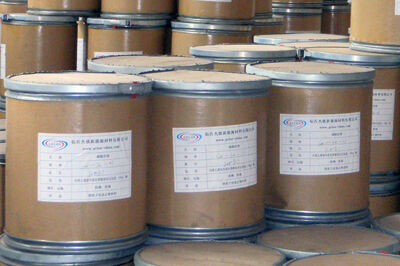

Packaging Details: Carton Packaging
Delivery Time: 10 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 500 kgs/month
Contact Now

Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication

Description
Li: 7.40±0.20 Wt% Tap-density: ≥1.50 G/cm³
D50(μm): 1.16 SSA: 11.63m²/g
Micro Shape: Ball Shape D10(μm): 0.45
Crystal Structure: Without Impurity PH: 8.93
H2O: ≤0.0500 Wt% Apparent Density: ≥0.60 G/cm³
Appearance: Ash Black Powder Co+Ni+Mn: 56.00-62.00 Wt%
D90(μm): 3.69 TAP Density: 0.87g/cm³
Powder Resistivity: 6.95Ω Cm C Content: 1.426%
Moisture: 553.2ppm 1st Efficiency(0.1c): 97.3%
1st Capacity(0.1c): 156.5mAh/g
Highlight:

Lithium Iron Phosphate cathode material

,

LFP P198-S13 battery powder

,

cathode active material for battery R&D

Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication
Contact for details:
Email: Kimberley@libgroup.net
WhatsApp/Mobile/Wechat: +86-13686664348
Product Overview

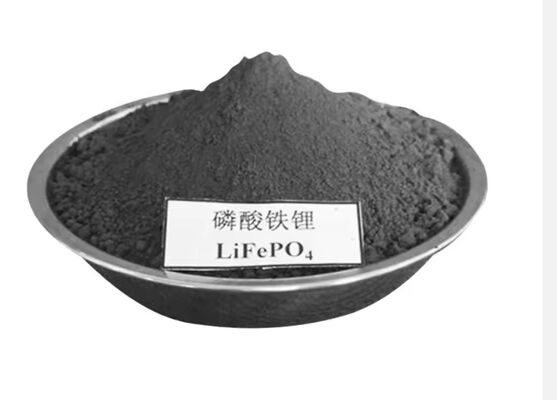

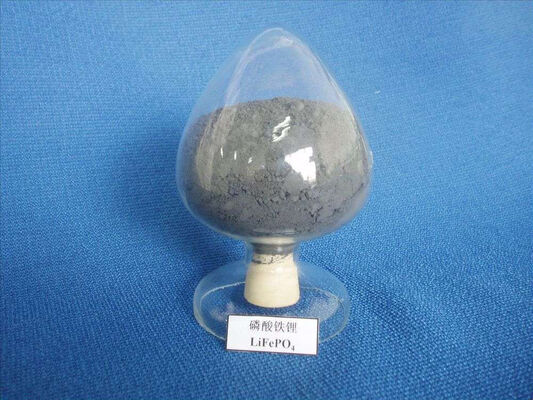

This is GELON LiFePO4 P198‑S13 carbon‑coated lithium iron phosphate cathode powder, ash‑black powder with stable tap density, low powder resistivity and uniform particle size distribution. It delivers high initial discharge capacity 156.5 mAh/g and 97.3% first‑cycle efficiency. Well‑suited for university & institute battery research, coin/pouch cell lab testing and mass‑production electrode fabrication for lithium‑ion batteries. Strict inspection reports are available for every batch.

Specification
Product LiFePO4
Type P198 S13
Item Unit Standard Test value Inspection way
Appearance N.A Ash black powder Ash black powder visual contact
TAP Density g/cm³ 0.8±0.2 0.87 Tap density instrument testing
Powder resistivity Ω cm ≤100 6.95 Powder resistance tester

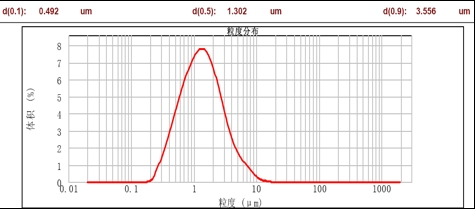

Particle Size D10 μm ≥0.25 0.45 MASTERSIZER2000 Refractive index 1.692% Absorptivity 1%
D50 μm 1.3±0.5 1.16
D90 μm <10.0 3.69
C content % 1.45±0.2 1.426 Infrared high frequency carbon and sulfur tester
SSA m2/g 12.0±2.0 11.63 ST-08 SSA TESTING
PH N.A 9.5±1.0 8.93 PH testing
Moisture ppm <1000 553.2 KF moisture analyzer
1st efficiency(0.1c) % ≥95 97.3 Simulation of the battery
1st Capacity(0.1c) mAh/g ≥154 156.5
Features

Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication

Lithium Iron Phosphate LFP P198‑S13 Cathode Active Material Powder For Battery R&D University Laboratory Electrode Fabrication

Applications
  • Academic electrochemistry experiments
  • Electrode formula development
  • Prismatic/coin cell prototype testing

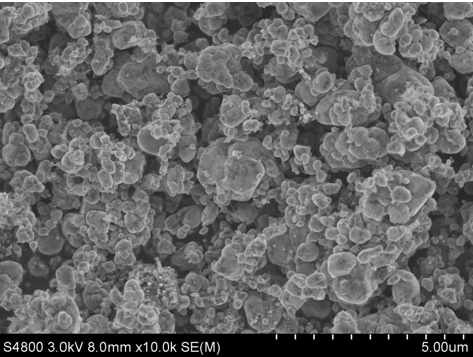

Each production batch includes comprehensive material characterization with XRD, SEM, PSD analysis, and complete electrical cycle test reports.

Product & Equipment Documentation
GN-CP20 Manual Coin Cell Punching Machine

Close-up view of coin cell punching machine components

Detailed view of punching machine components and assembly

Operational view of coin cell punching machine in use

Die cutting mechanism of coin cell punching machine

Laboratory demonstration of coin cell preparation equipment

Sample preparation process showing electrode material handling

Finished coin cell samples produced using the equipment
