Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries

Certification
China Shandong Gelon Lib Co., Ltd certification
China Shandong Gelon Lib Co., Ltd certification
I'm Online Chat Now

Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries

Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries
Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries

Large Image :  Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: LFP-T2
Payment & Shipping Terms:
Minimum Order Quantity: 1kg
Price: 75-80USD
Packaging Details: Carton Packaging
Delivery Time: 10 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 500 kgs/month

Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries

Description
Appearance: Ash Black Powder Tap-density: 1.43 G/cm³
Pressed Density: 2.18 G/cm³ Powder Conductivity: 8.41 *10-3S/cm
D10(μm): 1.80 D50(μm): 7.30
D90(μm): 20.20 C Content: 1.44%
SSA: 8.35m²/g PH: 9.80
Moisture: 330.3ppm 1st Efficiency(0.1c): 98.3%
1st Capacity(0.1c): 160.1mAh/g
Highlight:

Carbon-Coated LiFePO4 Cathode Powder

,

160.1mAh/g Capacity LFP-T2 Cathode Material

,

98.3% First-Cycle Efficiency Lithium Iron Phosphate Powder

High‑Performance LFP‑T2 LiFePO4 Cathode Material Powder Carbon Coated For Lithium‑ion Battery Manufacturer & Research Institute
Contact for details:
Email: Kimberley@libgroup.net
WhatsApp/Mobile/Wechat: +86-13686664348
Product Overview

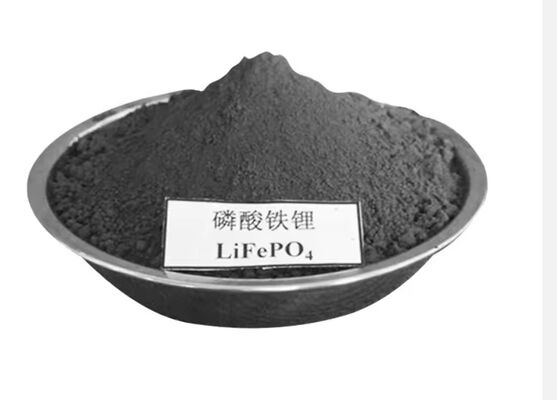

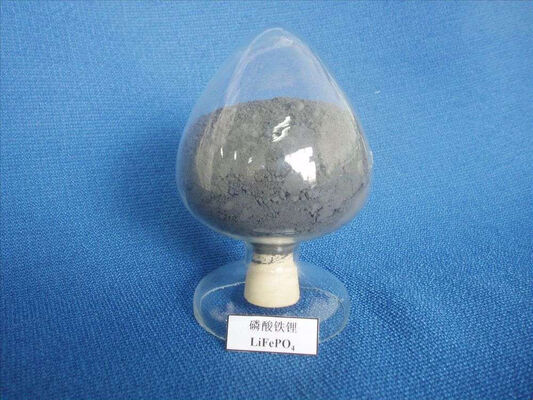

GELON LFP‑T2 is carbon‑coated lithium iron phosphate cathode powder for lithium‑ion batteries. This ash‑black powder features high tap density, excellent powder conductivity and stable particle distribution. It delivers 160.1 mAh/g initial specific capacity with 98.3% first‑cycle efficiency at 0.1C.

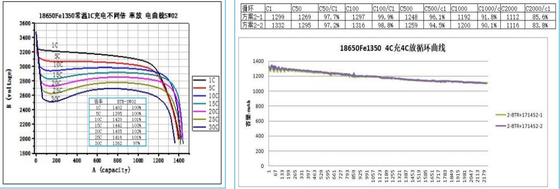

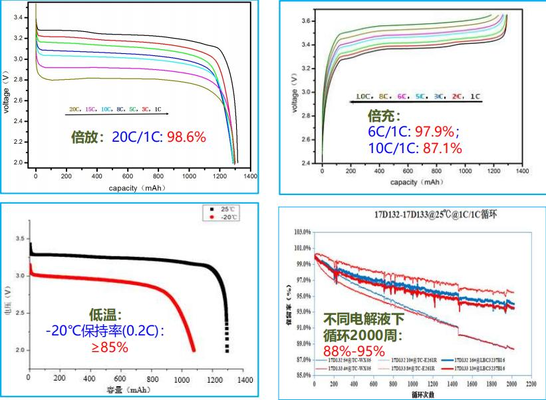

Great low‑temperature performance with ≥85% capacity retention at ‑20℃(0.2C), outstanding high‑rate capability and long‑cycle stability over 2000 cycles. Well‑suited for university & institute lab research, coin‑cell testing, as well as pilot‑scale electrode & lithium‑ion battery manufacturing. Strictly controlled moisture, carbon content and specific surface area guarantee repeatable electrochemical test results for your R&D projects.

Specification
Product LiFePO4
Type T2
Item Unit Standard Test value Inspection way
Appearance N.A Ash black powder Ash black powder visual contact
TAP Density g/cm³ ≥1.2 1.43 Tap density instrument testing
Pressed Density g/cm³ ≥2.10 2.18 Carver
Particle Size D10 μm >0.5 1.80 MASTERSIZER2000 Refractive index 1.692% Absorptivity 1%
D50 μm 6±2 7.30
D90 μm <25 20.20
C content % 1.5±0.2 1.44 Infrared high frequency carbon and sulfur tester
SSA m2/g 9.0±2.0 8.35 ST-08 SSA TESTING
PH N.A 9.0±1.0 9.80 PH testing
Moisture ppm <1000 330.3 KF moisture analyzer
1st efficiency(0.1c) % ≥95 98.3 Simulation of the battery
1st Capacity(0.1c) mAh/g ≥158 160.1
Features

Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries

Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries

Carbon-Coated LiFePO4 LFP-T2 Cathode Powder with 160.1mAh/g Capacity and 98.3% First-Cycle Efficiency for Lithium-Ion Batteries

Applications
  • Academic electrochemistry experiments
  • Electrode formula development
  • Prismatic/coin cell prototype testing

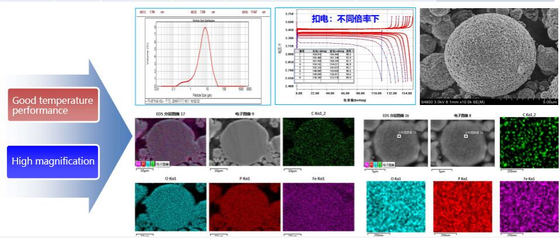

Each production batch includes comprehensive material characterization with XRD, SEM, PSD analysis, and complete electrical cycle test reports.

Product & Equipment Documentation
GN-CP20 Manual Coin Cell Punching Machine

Close-up view of coin cell punching machine components

Detailed view of punching machine components and assembly

Operational view of coin cell punching machine in use

Die cutting mechanism of coin cell punching machine

Laboratory demonstration of coin cell preparation equipment

Sample preparation process showing electrode material handling

Finished coin cell samples produced using the equipment
