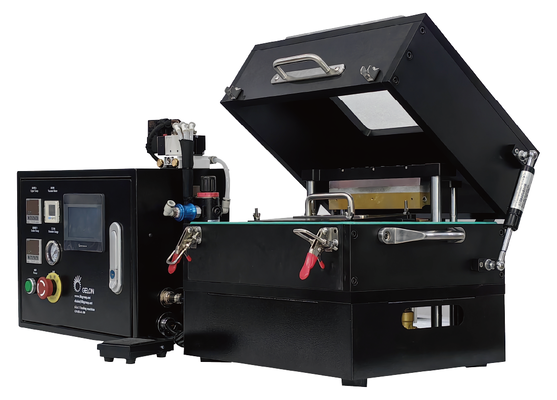

6-in-1 Pouch Cell Sealing Machine for Lithium-Ion Battery Lab Research with Glove Box Compatibility and Vacuum Sealing

No.

Name

QTY


1

Machine/Manual

Each 1

2

Power cord

1

3

Heating tube (L type)

(spare part )

1

4

Sealing strip

(spare part )

5m

5

Bayonet

(spare part )

4

No.

Item

Description

1

Overview

This equipment can meet the production requirements for pouch cells top and side sealing, vacuum pre-sealing, vacuum second sealing, electrolyte filling, and vacuum standing.

1. Top and Side Sealing Section: The resistance heating tube transfers heat to the sealing head (brass), utilizing the thermal conduction effect on the lithium-ion battery packaging material (aluminum laminated film). Under a certain pressure, it heats and softens the material to a state close to melting, thereby completing the pressing and fusing. The equipment can achieve both top and side sealing without changing the sealing head. The production workflow of the equipment involves confirming the air switch is open, starting the power supply, and setting the temperature of the sealing head temperature controller to the specified value. Once the temperature reaches the set value, switch to automatic, place the battery cell at the sealing position, and press the momentary switch to start the equipment.

2. Electrolyte Filling and Vacuum Standing Section: (Filling pump optional) The battery is stood upright in a fixture, and the electrolyte filling is done using a precision filling pump. The equipment is compact in size and precise in filling, allowing for manual filling independently within a glove box. After the filling is completed, manually close the pressure plate to clamp and form a sealed chamber with the lower cavity (with adjustable timing), creating a vacuum static state.

3. Vacuum Pre-sealing and Vacuum Second Sealing Section: (Vacuum pump optional)

    3.1. First, use the upper and lower chambers to form a sealed cavity, then vacuum the cavity to create a negative pressure state. Puncture the pre-encapsulated gas belt to allow the gas inside the battery cell to be expelled. Utilize the upper and lower chambers to form a sealed cavity again, then vacuum the cavity to create a negative pressure state. After that, use the sealing head to apply thermal conduction effects on the packaging material of the lithium-ion battery (aluminum laminated film), heating it to soften and almost melt, causing it to fuse together.

3.2. This equipment is primarily used for vacuum extraction and hot pressing sealing of pouch cells after electrolyte filling and standing. The sealing head is made of brass, which has good heat conduction, saving electricity and improving work efficiency, making it more energy-efficient than similar products. The pressure of the upper and lower sealing heads can be adjusted through pressure regulating valves to achieve different process parameter requirements.

3.3. The sealing head is driven by a cylinder and guided by a linear guide sleeve, allowing flexible up and down movement and accurate guidance to ensure the parallelism requirement after the product is sealed; the waste liquid recovery device. Guided by the linear guide sleeve, it allows flexible up and down movement and accurate guidance to ensure the sealing requirements of the product.

2

Features

1. Modular design, the main body of the equipment can be placed inside the glove box for use, with the electrical control box located externally.

2. Suitable for the top sealing, side sealing, vacuum pre-sealing, vacuum second sealing, electrolyte filling, and vacuum standing processes of pouch cells.

3. Design a perspective window that allows for observation of changes within the cavity during operation

4. Controlled by push-button switches for cylinder actions, driven by PLC.

5. Compatible with six functions, enabling multi-purpose use with a single machine.

3

Notes

1. Regularly wipe the upper and lower sealing heads and the vacuum chamber to maintain cleanliness.

2. Lubricate the moving parts of the bearings to ensure smooth movement.

3. If not in use for a long time, please wipe the surfaces of the moving parts clean and apply anti-rust oil to protect the surfaces.

4. Regularly inspect the screws, nuts, pins, and other fasteners of the machine to prevent malfunctions and accidents due to loosening.

Name

Parameters

Remarks

Upper/Lower Sealing Head Temperature

Recommended temperature 180℃

Max. 200℃

Vacuum Degree

Not lower than -90KPa (maximum)

Adjustable

Sealing Time

Recommended 3~6s

Adjustable 0-99s

Seal Thickness

≤0.5mm

Sealing Head Length

200mm

Sealable Battery Size

Max L180mmxW180mmxH10mm

Including air bag and tabs

Sealing Edge Width

5mm (standard configuration)

Customized

Filling Pump

Optional

Additional charges apply if customer requires a pump

Standing Time

Adjustable 0-99.99s

Gas source

0.5~0.8MPa Argon, Nitrogen gas (inside glove box), or 0.5~0.8MPa Compressed Air

If the equipment is used in a glove box, argon or nitrogen gas sources must be used. Compressed air can be used if the equipment is placed outside the glove box.

Power Supply

AC220V/50Hz,

AC110V/60Hz

Customized

Power

1700W

Equipment Dimensions

≈L700*W280*H330mm

Electrical Control Box Dimensions

≈L460*W230*H330mm

Size of Wooden Box after Equipment Packaging

≈L1100*W540*H620mm

Net Weight

Approx. 65kg

Gross Weight

Approx. 88kg

Usage Site

Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions

Warranty Period

1-year warranty, lifetime maintenance
