Pouch Cell Six-in-One Sealing Machine for Lithium Battery Lab Research & Glove Box Use, Top/Side Sealing, Vacuum Pre-Sealing & 2nd Sealing, Electrolyte Filling & Standing

No.

Name

Qty


1

Mainframe /Manual

1 for each

2

Power cord

1

3

Heat generating tube(This is a spare part for the equipment)

1

4

Sealing strip(This is the spare part of the equipment)

5 meters

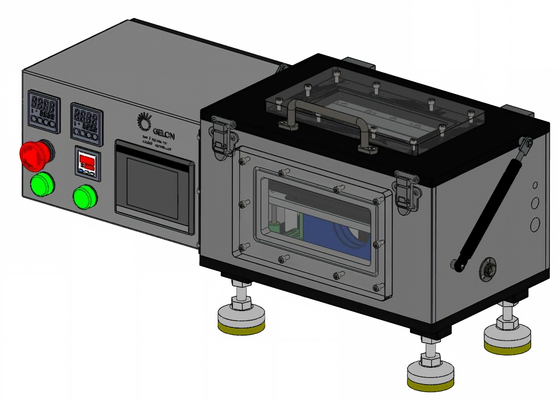

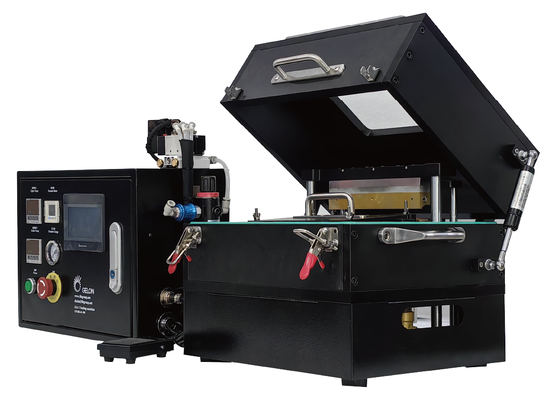

This equipment can meet the production of pouch cell top,side sealing,vacuum pre-sealing,vacuum second sealing,electrolyte injection,vacuum standing.

2.1.First,the upper and lower cavities are used to form a closed cavity,and then the cavity is vacuumed to form a negative pressure state,and the gas in the cell is discharged by cutting through the pre-encapsulated gas strip part,and the upper and lower cavities are used to form a closed cavity,and then the cavity is vacuumed to form a negative pressure state,and then the packaging material (aluminum laminated film)of the lithium pouch cell is heated and softened close to the molten state andfused together by using the heat conduction effect on the sealing head.

2.2.This equipment is mainly suitable for vacuumizing and hot pressing packaging of pouch cell after electrolyte injection and standing;sealing head made of copper material,heat transfer effect is good,save power consumption,improve work efficiency,energy saving than similar equipment;The upper and lower head pressure can be adjusted by pressure regulating valve to achieve different process parameters.

2.3.The upper and lower heads are driven by air cylinders and guided by two straight guide sleeves,so that the upper and lower heads can move flexibly and guide accurately to meet the requirements of parallelism after edge sealing;Waste liquid recovery device.Guided by straight guide sleeve,flexible up and down movement, accurate guidance to ensure product sealing requirements.

The cell is erected in the fixture,and the rotary plunger metering method is adopted to realize the continuous and precise measurement of liquid.Small size,precise injection,can be used independently in the glove box for manual injection.After the liquid injection is completed,the pressure plate is closed artificially,and the lower cavity is fastened to form a closed cavity.(Time can be set)When the cavity is not opened,the secondary air is extracted to form -70kpa stop for a period of time (time can be set).The third vacuum is pumped in the same action to reach -95kpa negative pressure state so that the air in the cell is excluded.The second trapezoidal vacuuming method is to avoid the electrolyte being pumped out in large quantities,but also to make the electrolyte completely penetrated.

III.Equipment characteristics

1.Integrated design,the main body of the equipment can be placed in the glove box.

2.It is suitable for top seal,side seal,one seal,two seal,liquid injection and vacuum standing process of medium and small soft pack lithium electronic battery.

3.Maintain good vacuum degree to ensure the moisture content of battery products.

4.Two perspective Windows are designed,through which changes in the cavity can be observed during operation.

5.Use button switch to control cylinder action,driven by PLC.
