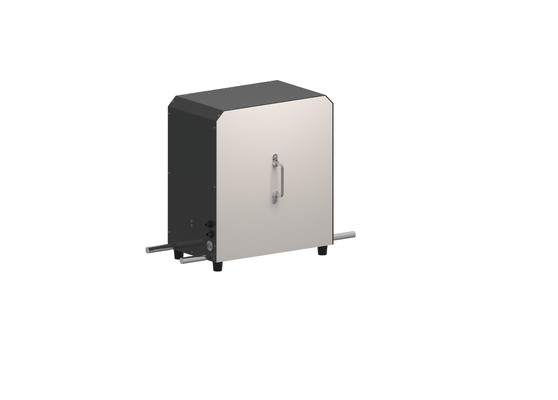

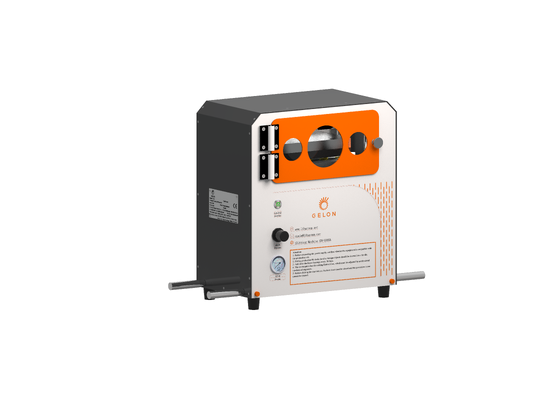

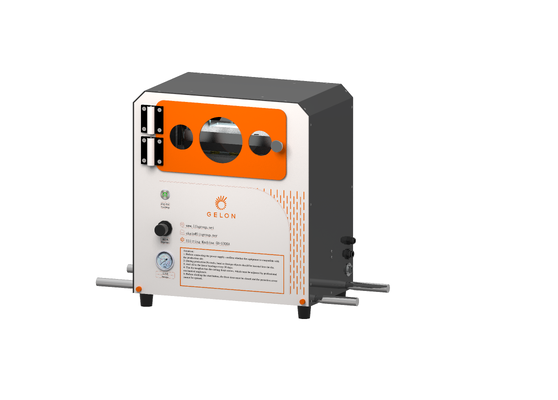

GELON GN‑S100F Pneumatic Al‑Laminated Film Forming Machine For Lithium Ion Pouch Battery Lab Prototyping

Large Image : GELON GN‑S100F Pneumatic Al‑Laminated Film Forming Machine For Lithium Ion Pouch Battery Lab Prototyping

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-S100F

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	2200-2250 USD
Packaging Details:	Wooden case
Delivery Time:	25-30 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500 sets/month

Contact Now

GELON GN‑S100F Pneumatic Al‑Laminated Film Forming Machine For Lithium Ion Pouch Battery Lab Prototyping

Description

Roller Gap:	0~1.2 Mm (adjustable)	Roller Gap Adjustment Precision:	0.01mm
Rolling Speed:	Adjustable	Roller Hardness:	Surface Hardness ≥ HRC55 Hardness Layer Thickness ≥ 10mm
Equipment Dimensions:	≈L655W310H530mm	Roller Drive:	Motor-driven
Power:	100W	Roller Width:	250mm
Effective Roller Width:	245mm	Upper/Lower Roller Heating Temperature:	Recommended Heating Temperature 60℃-80℃
Net Weight Of Equipment:	Approx. 102kg	Roller Size:	Φ96mm
Power Supply:	AC220V/50Hz.（110V/60Hz）	Forming Size:	Single Forming Foldable (with Air Bag) MAX: L90mmW50mm (air Bag Width 50 Without Forming) Double Forming Foldable (with Air Bag) MAX: L60mmW50mm (air Bag Width 50 Without Forming) Aluminum-laminated Film Overall Dimensions MAX: L205*W115mm
Forming Pressure:	≈1T Adjustable	Punching Stroke:	About 30mm
Punching Depth:	Max. 6mm	Tolerance Of Forming Size:	±0.5mm
Thickness Of AL-laminated Film:	0.1~ 0.2mm	Gas Source:	0.5~0.8MPa Argon, Nitrogen (inside Glove Box), Or 0.5~0.8MPa Compressed Air
Size Of Wooden Box After Equipment Packaging:	≈L770W460H790mm	Net Weight:	Approx. 85Kg
Gross Weight:	Approx. 95Kg	Warranty Period:	1-year Warranty, Lifetime Maintenance
Highlight:	pneumatic film forming machine for lithium battery , al-laminated pouch battery prototyping machine , lab prototyping machine for lithium ion

GELON GN‑S100F Pneumatic Al‑Laminated Film Forming Machine For Lithium Ion Pouch Battery Lab Prototyping

Contact for details:
Email: Kimberley@libgroup.net
WhatsApp/Mobile/Wechat: +86-13686664348

Product Overview

The equipment applied to the punch forming of aluminum-laminated film for pouch cells drives the die to rise through a multiplier cylinder to complete the punch forming process. After forming, the lower die resets to its original position. Corresponding forming die can be manufactured according to customer size requirements.

Key Features

1. Sheet AL-plastic film forming, suitable for R&D and sample making applications.

2. The formed product has uniform stretching, high-quality stretch effect, and no injuries or ruptures.

3. Driven by a force multiplier cylinder, the forming pressure is adjustable.

4. The material feed opening is protected by a safety light grid, ensuring safe operation.

5. Comes with a set of standard size dies, and can also be made according to customer requirements.

Technical Specifications

Name	Parameters	Remarks
Forming Size	Max.L90*W50mm	Customized
Forming Pressure	≈1T	Adjustable
Forming Size	Single forming foldable (with air bag) MAX: L90mmW50mm (air bag width 50 without forming) Double forming foldable (with air bag) MAX: L60mmW50mm (air bag width 50 without forming) Aluminum-laminated film overall dimensions MAX: L205*W115mm
Punching Stroke	About 30mm
Punching Depth	Max. 6mm	The depth of the punch in aluminum-laminated film is related to its drawing performance.
Tolerance of Forming Size	±0.5mm
Thickness of AL-laminated Film	0.1~ 0.2mm
Gas Source	0.5~0.8MPa argon, nitrogen (inside glove box), or 0.5~0.8MPa compressed air	If the equipment is used in a glove box, argon or nitrogen gas sources must be used. Compressed air can be used to place the equipment outside the glove box.
Power Supply	AC220V/50Hz.(110V/60Hz)	Customized
Power	100W
Equipment Dimensions	≈L655W310H530mm
Size of Wooden Box after Equipment Packaging	≈L770W460H790mm
Net Weight	Approx. 85Kg	Including dies
Gross Weight	Approx. 95Kg
Usage Site		Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions
Warranty Period	1-year warranty, lifetime maintenance
