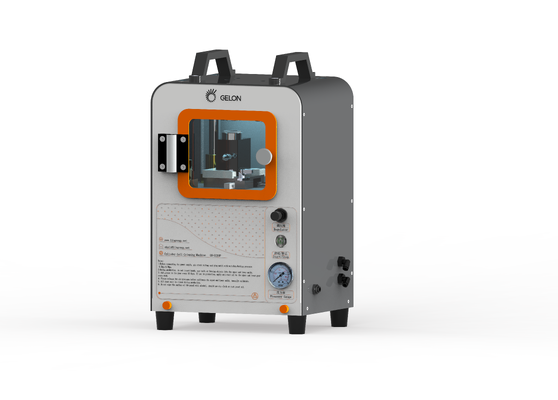

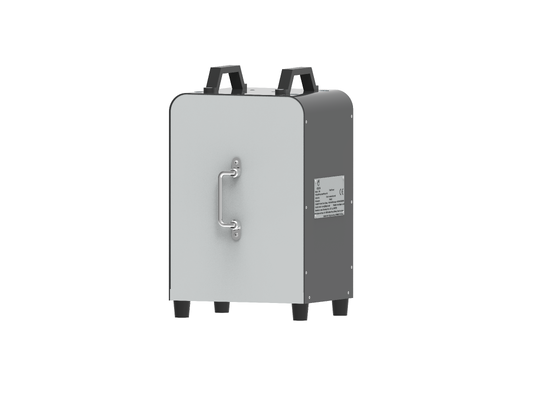

Lab Pneumatic Cylindrical Battery Crimping Machine 18650 Cell Sealing Equipment For Lithium Ion Battery Research

Large Image : Lab Pneumatic Cylindrical Battery Crimping Machine 18650 Cell Sealing Equipment For Lithium Ion Battery Research

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-CC50P

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	2980-3000 USD
Packaging Details:	Wooden case
Delivery Time:	25-30 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500 sets/month

Contact Now

Lab Pneumatic Cylindrical Battery Crimping Machine 18650 Cell Sealing Equipment For Lithium Ion Battery Research

Description

Roller Drive:	Motor-driven	Forming Pressure:	≈1T Adjustable
Gross Weight:	Approx. 95Kg	Roller Gap Adjustment Precision:	0.01mm
Equipment Dimensions:	≈L655W310H530mm	Gas Source:	0.5~0.8MPa Argon, Nitrogen (inside Glove Box), Or 0.5~0.8MPa Compressed Air
Roller Hardness:	Surface Hardness ≥ HRC55 Hardness Layer Thickness ≥ 10mm	Punching Stroke:	About 30mm
Warranty Period:	1-year Warranty, Lifetime Maintenance	Power:	100W
Forming Size:	Single Forming Foldable (with Air Bag) MAX: L90mmW50mm (air Bag Width 50 Without Forming) Double Forming Foldable (with Air Bag) MAX: L60mmW50mm (air Bag Width 50 Without Forming) Aluminum-laminated Film Overall Dimensions MAX: L205*W115mm	Net Weight:	Approx. 85Kg
Rolling Speed:	Adjustable	Thickness Of AL-laminated Film:	0.1~ 0.2mm
Punching Depth:	Max. 6mm	Net Weight Of Equipment:	Approx. 102kg
Size Of Wooden Box After Equipment Packaging:	≈L770W460H790mm	Standard Cutting Die:	Cathode 5643mm Anode 5845mm
Effective Roller Width:	245mm	Tolerance Of Forming Size:	±0.5mm
Roller Width:	250mm	Upper/Lower Roller Heating Temperature:	Recommended Heating Temperature 60℃-80℃
Roller Size:	Φ96mm	Power Supply:	AC220V/50Hz.（110V/60Hz）
Highlight:	Lab pneumatic battery crimping machine , 18650 cell sealing equipment , Lithium ion battery research machine

Lab Pneumatic Cylindrical Battery Crimping Machine 18650 Cell Sealing Equipment For Lithium Ion Battery Research

Contact for details:
Email: Kimberley@libgroup.net
WhatsApp/Mobile/Wechat: +86-13686664348

Product Overview

1. Mainly used for sample preparation in laboratory battery material research and development for cylindrical cells and capacitors, as well as scientific sealing, and can also be used for small batch trial production in factories. Optional other cylindrical cell crimping dies are available (e.g., 18650, 21700, 26650, 32650, etc.).

2. Driven by a pneumatic system, during the first and second crimping processes of the battery, alignment is achieved through movement on the slide rail, the battery sealing process is vibration-free; the precise die design ensures the accuracy and reliability of the sealing formation, and the sturdy steel structure design.

Key Features

1. Purely pneumatic operation, no electricity required, convenient and easy to use.

2. Runs smoothly with stable crimping.

3. Built-in pressure gauge allows for observation and precise control of the crimping pressure.

4.Driven by a pneumatic system, the cell crimping process is vibration-free.

5. Precise die design ensures the accuracy and reliability of the crimping formation, with a sturdy steel structure design.

6. The glove box Φ360 transition chamber can be passed through directly from the transition chamber without obstacles (such as a skateboard), compact in size and convenient to operate.

Technical Specifications

Name	Parameters	Remarks
Crimping Die	18650 is standard	Customized
Crimping Stroke	30mm
Die Life	≤300,000 times
Crimping Efficiency	60 seconds/piece	(Reference to 18650)
Gas Source	0.5~0.8MPa Argon, Nitrogen gas (inside glove box), or 0.5~0.8MPa Compressed Air	If the equipment is used in a glove box, argon or nitrogen gas sources must be used. Compressed air can be used if the equipment is placed outside the glove box.
Equipment Dimensions	≈L306W298H477mm
Size after Packaging	≈L430W410H580mm
Net Weight of Equipment	Approx. 42Kg	Including the die
Gross Weight of Equipment	Approx. 51kg
Usage Site		Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions
Warranty Period	1-year warranty, lifetime maintenance
