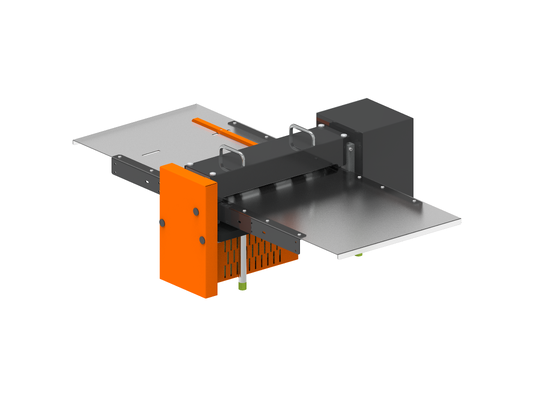

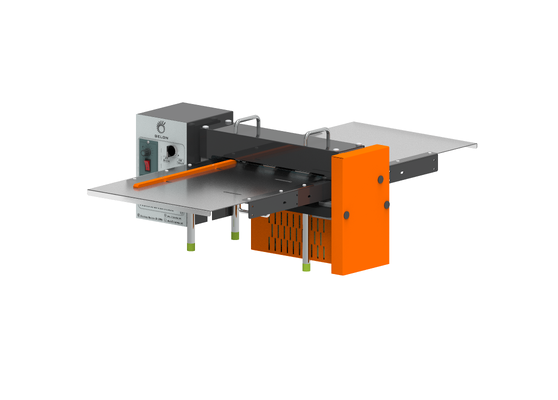

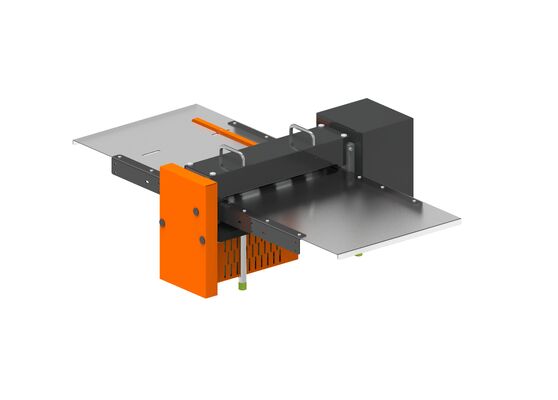

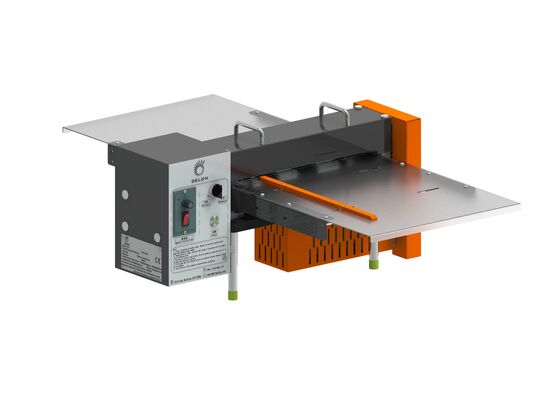

GELON GN‑S300A Desktop Slitting Machine Max 300mm Width For Lithium Battery Positive Negative Electrode Cutting

Large Image : GELON GN‑S300A Desktop Slitting Machine Max 300mm Width For Lithium Battery Positive Negative Electrode Cutting

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-S300A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	3880-4000 USD
Packaging Details:	Wooden case
Delivery Time:	25-30 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500 sets/month

Contact Now

GELON GN‑S300A Desktop Slitting Machine Max 300mm Width For Lithium Battery Positive Negative Electrode Cutting

Description

Roller Drive:	Motor-driven	Forming Pressure:	≈1T Adjustable
Gross Weight:	Approx. 95Kg	Roller Gap Adjustment Precision:	0.01mm
Equipment Dimensions:	≈L655W310H530mm	Gas Source:	0.5~0.8MPa Argon, Nitrogen (inside Glove Box), Or 0.5~0.8MPa Compressed Air
Roller Hardness:	Surface Hardness ≥ HRC55 Hardness Layer Thickness ≥ 10mm	Punching Stroke:	About 30mm
Warranty Period:	1-year Warranty, Lifetime Maintenance	Power:	100W
Forming Size:	Single Forming Foldable (with Air Bag) MAX: L90mmW50mm (air Bag Width 50 Without Forming) Double Forming Foldable (with Air Bag) MAX: L60mmW50mm (air Bag Width 50 Without Forming) Aluminum-laminated Film Overall Dimensions MAX: L205*W115mm	Net Weight:	Approx. 85Kg
Rolling Speed:	Adjustable	Thickness Of AL-laminated Film:	0.1~ 0.2mm
Punching Depth:	Max. 6mm	Net Weight Of Equipment:	Approx. 102kg
Size Of Wooden Box After Equipment Packaging:	≈L770W460H790mm	Standard Cutting Die:	Cathode 5643mm Anode 5845mm
Effective Roller Width:	245mm	Tolerance Of Forming Size:	±0.5mm
Roller Width:	250mm	Upper/Lower Roller Heating Temperature:	Recommended Heating Temperature 60℃-80℃
Roller Size:	Φ96mm	Power Supply:	AC220V/50Hz.（110V/60Hz）
Highlight:	GELON GN-S300A desktop slitting machine , 300mm width lithium battery slitter , electrode cutting machine for lithium battery

GELON GN‑S300A Desktop Slitting Machine Max 300mm Width For Lithium Battery Positive Negative Electrode Cutting

Contact for details:
Email: Kimberley@libgroup.net
WhatsApp/Mobile/Wechat: +86-13686664348

Product Overview

Mainly used for sample preparation in laboratory battery material research and development for cylindrical cells and capacitors, as well as scientific sealing, and can also be used for small batch trial production in factories. Optional other cylindrical cell crimping dies are available (e.g., 18650, 21700, 26650, 32650, etc.).

2. Driven by a pneumatic system, during the first and second crimping processes of the battery, alignment is achieved through movement on the slide rail, the battery sealing process is vibration-free; the precise die design ensures the accuracy and reliability of the sealing formation, and the sturdy steel structure design.

Key Features

1. Sheet-like feeding, upper and lower circular knife cutting method. The slitting knife replacement is more convenient, and adjustment is simpler.

2. Motor-driven, with feeding guidance and small slitting burrs.

3. D2 material slitting knives are treated with heat treatment, resulting in good slitting effect and long service life.

4. Inlet and outlet are equipped with stainless steel receiving plates.

5. The entire slitting knife assembly is enclosed within a protective cover, ensuring safe operation.

Technical Specifications

Name	Parameters	Remarks
Slitting Material	Copper foil, aluminum foil, cathode and anode electrodes
Slitting Method	Fixed upper and lower roller slitting
Material Thickness	15—300um
Maximum Width of Incoming Material	300mm
Minimum Slitting Width	≥40mm	Customized
Slitting Width Accuracy	±0.1mm	Ensure that the placement is flat, vertical, and the operation is horizontal
Cutting Knife Life	5000m/pc
Slitting Speed	Adjustable by electric speed controller
Power Supply	AC220V/50Hz.(110V/60Hz)	Customized
Power	250W
Equipment Dimensions	≈L687W1058H348mm	Including receiving plate
Size of Wooden Box after Equipment Packaging	≈L770W330H500mm	Packed up after disassembling the material receiving plate
Net Weight of Equipment	≈140kg
Gross Weight of Equipment	≈156kg
Usage Site		Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions
Warranty Period	1-year warranty, lifetime maintenance
