GELON Top and Side Sealing Machine For Pouch Cell Lithium Battery Aluminum Laminated Film Heat Sealing Lab

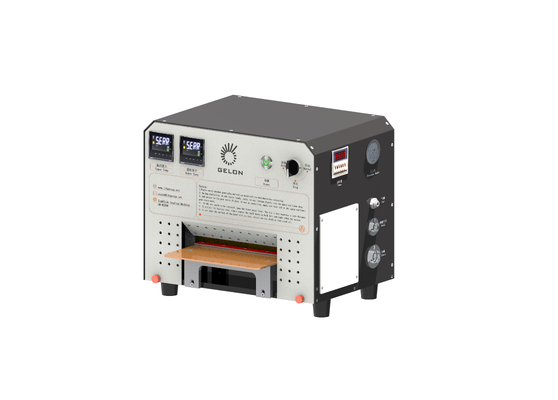

Large Image : GELON Top and Side Sealing Machine For Pouch Cell Lithium Battery Aluminum Laminated Film Heat Sealing Lab

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-CC50P

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	1550-1600 USD
Packaging Details:	Wooden case
Delivery Time:	25-30 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500 sets/month

Contact Now

GELON Top and Side Sealing Machine For Pouch Cell Lithium Battery Aluminum Laminated Film Heat Sealing Lab

Description

Roller Drive:	Motor-driven	Forming Pressure:	≈1T Adjustable
Gross Weight:	Approx. 95Kg	Roller Gap Adjustment Precision:	0.01mm
Equipment Dimensions:	≈L655W310H530mm	Gas Source:	0.5~0.8MPa Argon, Nitrogen (inside Glove Box), Or 0.5~0.8MPa Compressed Air
Roller Hardness:	Surface Hardness ≥ HRC55 Hardness Layer Thickness ≥ 10mm	Punching Stroke:	About 30mm
Warranty Period:	1-year Warranty, Lifetime Maintenance	Power:	100W
Forming Size:	Single Forming Foldable (with Air Bag) MAX: L90mmW50mm (air Bag Width 50 Without Forming) Double Forming Foldable (with Air Bag) MAX: L60mmW50mm (air Bag Width 50 Without Forming) Aluminum-laminated Film Overall Dimensions MAX: L205*W115mm	Net Weight:	Approx. 85Kg
Rolling Speed:	Adjustable	Thickness Of AL-laminated Film:	0.1~ 0.2mm
Punching Depth:	Max. 6mm	Net Weight Of Equipment:	Approx. 102kg
Size Of Wooden Box After Equipment Packaging:	≈L770W460H790mm	Standard Cutting Die:	Cathode 5643mm Anode 5845mm
Effective Roller Width:	245mm	Tolerance Of Forming Size:	±0.5mm
Roller Width:	250mm	Upper/Lower Roller Heating Temperature:	Recommended Heating Temperature 60℃-80℃
Roller Size:	Φ96mm	Power Supply:	AC220V/50Hz.（110V/60Hz）
Highlight:	pouch cell lithium battery sealing machine , aluminum laminated film heat sealer , lab battery top side sealer

GELON Top and Side Sealing Machine For Pouch Cell Lithium Battery Aluminum Laminated Film Heat Sealing Lab

Contact for details:
Email: Kimberley@libgroup.net
WhatsApp/Mobile/Wechat: +86-13686664348

Product Overview

1. The resistance heating tube transfers heat to the sealing head (brass), utilizing the thermal conduction effect on the packaging material of the lithium battery (aluminum laminated film). Under a certain pressure, it heats, softens, and approaches a molten state to complete the pressing and merging. It can also achieve top and side sealing without changing the sealing head (the upper sealing head is hard, and the lower sealing head is soft).

2. The equipment production workflow involves confirming the opening of the air switch, connecting the power and air sources, starting the power supply, and setting the upper and lower temperature controllers to the specified values. Once the temperature reaches the specified value, switch the knob to automatic, place the battery cell in the sealing position, step on the foot switch, and the equipment will operate.

Key Features

1. Desktop design, equipped with operating platform and sheet metal protective cover, safe and convenient operation.

2. Sealing head is easy to disassemble, the parallelism of the upper and lower die head is good, and the heat sealing effect is stable.

3. The temperature of the upper and lower die head is independently controlled.

4. The heat sealing time is adjustable.

Single-station sealing, automatic/manual models can be switched, and the sealing effect is excellent.

Technical Specifications

Name	Parameters	Remarks
Soft Seal Setting Temperature	Recommended 200℃-230℃
Hard Seal Setting Temperature	Recommended 170℃-190℃
Tab and Tab Tape Thickness Range	Tab≤0.15mm, Tab Tape Thickness≤0.1mm	Exceeding the specified range, customized according to customer requirements
Sealing Time	Recommended 3~6s	Adjustable from 0-99s
Seal Thickness	≤0.5mm
Sealing Head Length	200mm
Sealable Battery Size	Max L180mmxW180mmxH10mm	Including air bag and tabs
Sealing Edge Width	5mm (Standard)	Customized according to customer requirements
Gas source	0.5~0.8MPa Argon, Nitrogen gas (inside glove box), or 0.5~0.8MPa Compressed Air	If the equipment is used in a glove box, argon or nitrogen gas sources must be used. Compressed air can be used if the equipment is placed outside the glove box.
Power Supply	AC220V/50Hz, AC110V/60Hz	Customized
Power	1800W
Equipment Dimensions	≈L392W358H321mm
Dimension after Packaging	≈L570W510H570mm
Net Weight of Equipment	Approx. 38kg
Gross Weight of Equipment	Approx. 52kg
Usage Site		Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions
Warranty Period	1-year warranty, lifetime maintenance
