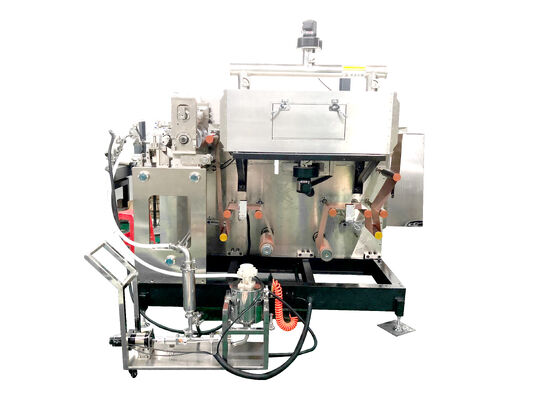

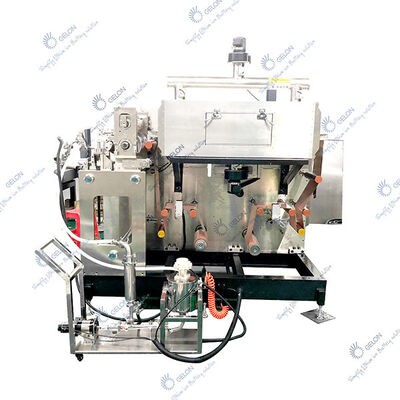

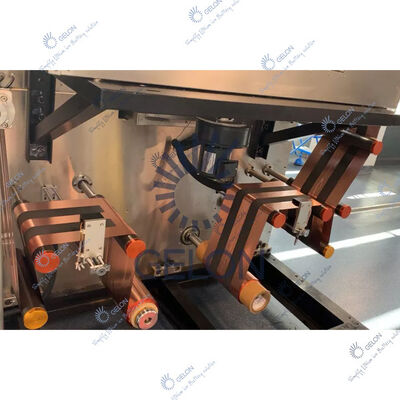

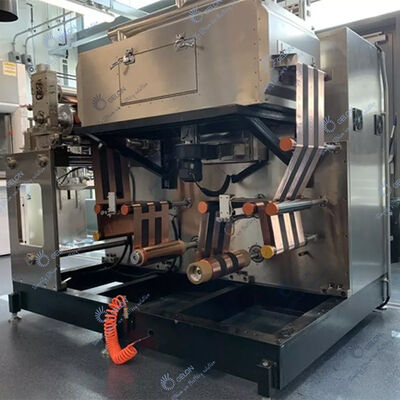

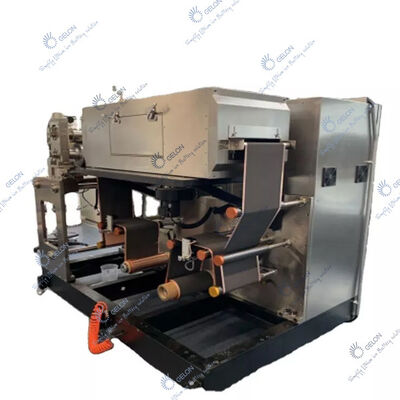

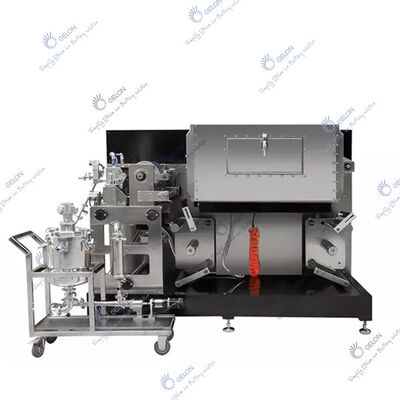

GELON GN-360S High-Precision Slot Die & Comma Bar Coating Machine | The Ultimate Flagship for Lithium Battery R&D

Positive

Negative

Remarks

Substrate

Aluminum foil

Copper foil

Width (mm)

280～400

280～400

Thickness(um)

11～30

6～30

Positive

Negative

Remarks

Materials

LCO,LFP,LMO,NMC,etc

Graphite,LTO, etc

Solvent

NMP(Oily/DI-water( Water-based)

Solid content (t%)

(38～80±3)

(35～65±3)

Proportion of slurry(g/cm3)

1.5～3.0

1.0～2.0

Viscosity(cps)

2000～20000

1000～10000

Binder

PVDF/Water-based

PVDF/SBR

Cathode electrode

Anode electrode

Remarks

Dry thickness of single- sided coating (μm)

50～150

50～150

Related to Particle size

Coating width (mm)

≤320

≤320

Mechanical speed (m/min)

15m/min

15m/min

Coating speed (m/min)

≥1m/min

≥1m/min

Related to slurry

Coating method

Intermittence coating or continuous coating

Density of one side

coated surface (g/㎡)

35～300

35～300

Roll width

500 mm

Effective coating width

<380mm

Weight range of single coated film

35～300g/㎡

Power supply

380V x 50Hz,3 phase (control power supply 220 V x 50Hz, single phase) voltage fluctuation range 10%~-10% voltage fluctuation

range

Total power

Maximum 15KW (When electric heating, the normal working power is about 40% of the maximum starting power.) Control heating with a power amplifier.

Gas source

0.6MPa~0.8MPa, air pressure fluctuation ±1%(clean air after water removal, no oil, filtration, steady pressure, )compressed air consumption 0.5 m3/h; compressed air is divided into two ways one for coating valve, equipped with special gas storage tank (0.3 m3/h), the other way to feed pressure belt cylinder, clamping

cylinder and so on (0.2 m3/h).

Appearance Color

Nickel plated nose, box part stainless steel, black or customer specified

Ground requirements

The foundation is cement ground or terrazzo ground, flatness ±5

mm/㎡, bearing capacity 1500㎏/㎡

Coating Part temperature

23 ± 4℃

Coating part humidity

45％RH (No condensation)

No.

Item

Description

1

Framework

Large vertical plate structure (nickel plating on surface)

2

Connection mode

Manual connection

3

Rewinding direction

Up or down

4

Rewind diameter

Max 300 mm

5

Roller weight

Max 1000 kg/roll

6

Driver

Direct output tension of servo motor Tension range :30-80 N/ total width

7

Mandrel

Inner circle diameter: 76-80 mm

Material: aluminum tube, carbon steel tube, ABS reinforced plastic, paper tube

8

Rewind reel

Inflatable shaft structure 3 inches

9

Guide roll

Aluminum roller with surface positive treatment

10

Correction system

High speed correction system

11

Correction stroke

±50 mm stroke

12

Correction accuracy

Rewinding: accuracy ±0.5 mm

No

Item

Description

1

Main control system

OMRON touch screen, OMRON bus system, module, servo system; touch screen and common keys installed on the left side

of the head of the electric cabinet；

2

Running and operation mode

Manual, automatic, emergency stop;

The main control system is on the nose touch screen;

Button operation can be performed on the front and back of the whole machine

3

Operation condition setting

and data processing

Coating line speed, tension control, coating settings can be set through the touch screen, display

4

Count function

Length of coating counting

5

Coating thickness

on-line detection system

Provision of communication ports with on-line thickness measurement systems

6

Electric control system

The control cabinet and the power cabinet are divided into boxes; the power cabinet is installed in the middle of the oven area and does not occupy additional space;

Separate design of the electric cabinet in the oven area, each section is equipped with an independent control cabinet;

All control cabinets have a sealed, positive pressure structure, and the positive pressure air source is provided by the customer; each

control cabinet adopts network cable transmission, which has high reliability, anti-interference, space saving and easy maintenance.
