400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D

Large Image : 400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE
Model Number:	GN-MR-400H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	5880-6000 USD
Packaging Details:	Wooden case
Delivery Time:	45-60 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500 sets/month

Contact Now

400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D

Description

Trademark:	Gelon	Origin:	Guangdong, China
Roller Width:	400mm (Effective Roller Width: 395mm)	Roller Size:	196mm
Roller Gap:	0~1.5 Mm (Adjustable)	Gap Adjustment Precision:	0.02mm
Heating Temperature:	Max 130℃ (Recommended: 60℃-80℃)	Rolling Speed:	Adjustable (Supports Forward & Reverse)
Roller Drive:	Motor-driven (Suitable For Argon Gas Environment / Glove Box)	Power / Power Supply:	2200W / AC220V/50Hz, 110V/60Hz (Customizable)
Equipment Dimensions:	Approx L1100W280 H420mm	Net / Gross Weight:	Approx. 150kg / 180kg
Highlight:	400mm Width Calendering Machine , Heated Electric Roll Press , 0.02mm Gap Adjustment Calendering Machine

High-Precision Heated Electric Calendering Machine for Battery R&D

Contact for Details

Email: Nirvana@libgroup.net

WhatsApp / Mobile / WeChat: +86-18774688262

Products Description

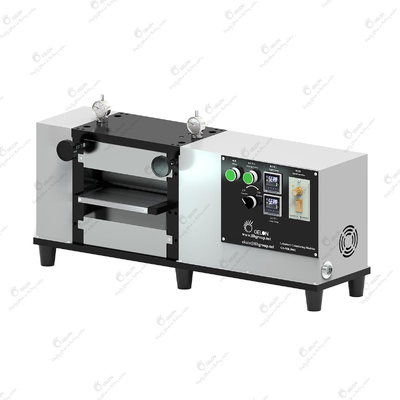

The GELON GN-MR-400H is specifically engineered for laboratory battery research. Featuring a 400mm roller width, max 130°C independent heating, and 0.02mm gap adjustment precision, it delivers exceptional stability for pressing battery electrodes and non-ferrous metal foils. Its compact, motor-driven design is fully compatible with glove box and argon gas environments.

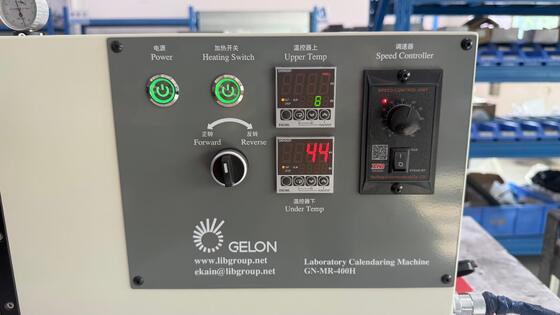

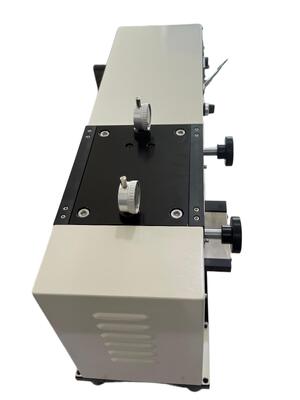

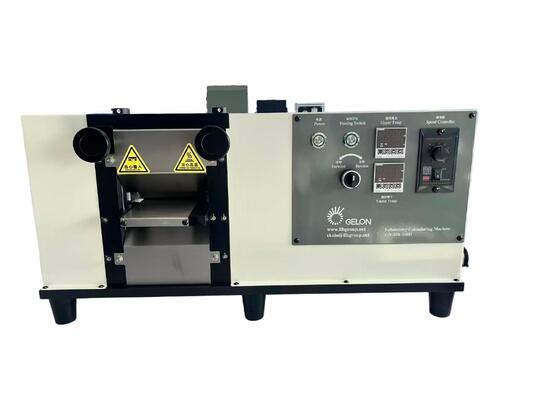

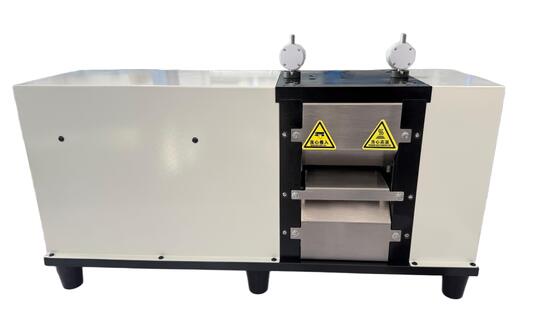

Gelon Lab Calendering Machine Series (Real Shots)

I. Technical Parameters
