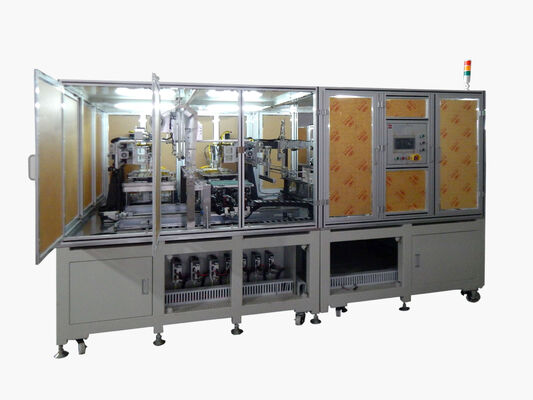

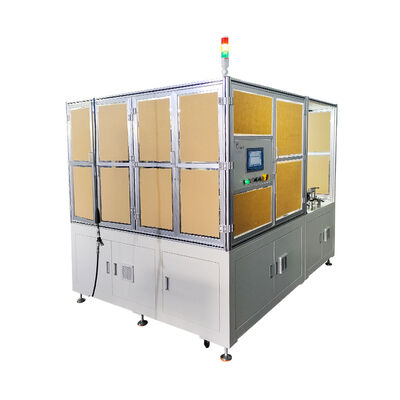

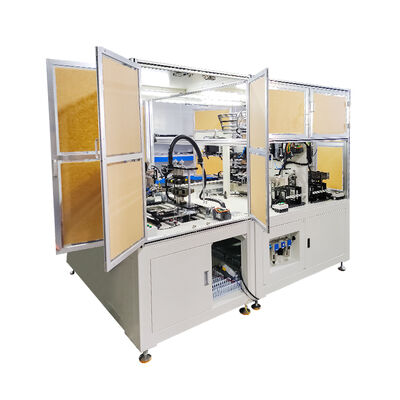

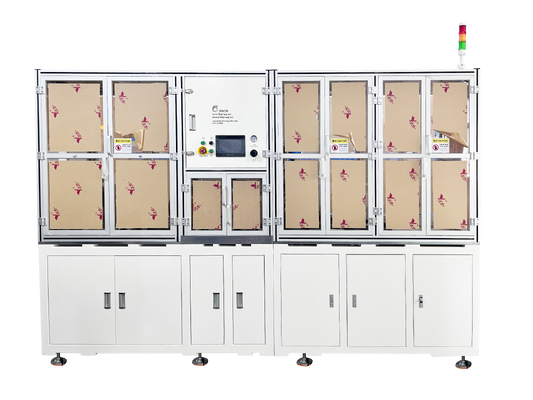

GN-DP300A Automatic Electrode Stacking Machine, Z-Stacker for Lithium Ion Pouch Cell Production

Large Image : GN-DP300A Automatic Electrode Stacking Machine, Z-Stacker for Lithium Ion Pouch Cell Production

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	CE,ISO9001
Model Number:	GN-DP300A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$75480
Packaging Details:	standard packing
Delivery Time:	35days
Payment Terms:	T/T

Contact Now

GN-DP300A Automatic Electrode Stacking Machine, Z-Stacker for Lithium Ion Pouch Cell Production

Description

Voltage:

220 V

Power (W):

2 KW

Compressed Air:

0.5 ~ 0.7Mpa

Power:

AC220V, 2.0KW

Highlight:

Automatic electrode stacking machine

Z-stacker for pouch cell production

Lithium ion pouch cell stacker

The device uses the machianical arm to move the left and right sides to pick up the electrode pole pieces in the middle of the two extreme positions and alternately discharge the electrode while completing the Z stacking of the diaphragm during the left and right movement, so that the reciprocating relization of the electorde pole pieces assembly of the entire cell core; The linear servo motion module is used to achieve hight-speed smooth and discharge adopts constant tenstion, and the correction mechanism controls the uniformity of the discharge duing the discharging process; the electrode pole pieces silo uses the linear servo motion moudule to convert different pole pieces.
Applicable battery specifications(can be customized according to customer requirement).

Technology Index

Power		AC220V±10%/2.0KW
Compressed Air		0.5 ~ 0.7Mpa
Vacuum		90Kpa ~ -60Kpa
Weight		900KG
Outside size		2000mm1800mm1700mm (LWH)
Productivity		1.1~1.5S/pc
Electrode putting precision		±0.2mm
Separator putting precision		±0.2mm

Tag:

Lithium ion Pouch Cell Pilot Line,

Lab Pouch Cell Pilot Line,

Desktop Pouch Cell Pilot Line
