Cylinder Cell Case Grooving Machine Lithium Battery Research Lab Line Accembly

Cylinder Cell Case Grooving Machine Lithium Battery Research Lab Line Accembly
Cylinder Cell Case Grooving Machine Lithium Battery Research Lab Line Accembly Cylinder Cell Case Grooving Machine Lithium Battery Research Lab Line Accembly

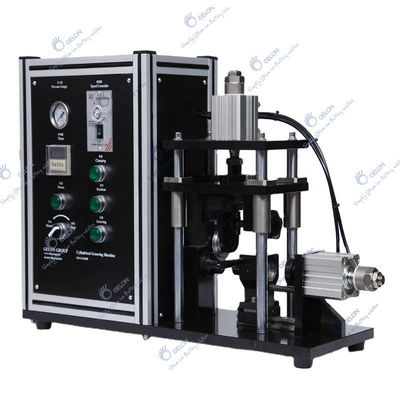

Large Image :  Cylinder Cell Case Grooving Machine Lithium Battery Research Lab Line Accembly

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-G50
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD13000/pcs
Packaging Details: Standard exported package : Internal anticollision protection, external export wooden box packaging
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500pcs/month

Cylinder Cell Case Grooving Machine Lithium Battery Research Lab Line Accembly

Description
Product Type: Cylinder Grooving Grooving Depth: 1.2~2.0mm
Grooving Width: 1.1-1.5mm Powder: 140W
Brand: Gelon Warranty: 1 Year
High Light:

Grooving Machine Lithium Battery Research

,

18650 cylinder cell case

,

Cylinder grooving Lithium Battery Research

Lab Cylinder Cell Grooving Machine

Cylindrical battery rolling groove machine is an equipment that can be applied to cylindrical lithium ion battery rolling groove process. The replacement of groove mold can be applied to the production of cylindrical batteries of various specifications. Replaceable hob, high rolling groove accuracy, good dimensional stability; 18650/21700/26650/32650 molds are optional (customized according to customer requirements), changing molds to achieve different types of cylindrical battery grooves; groove depth is adjustable , With battery axial deformation compensation function; the main unit and control box are designed separately for easy operation and use.

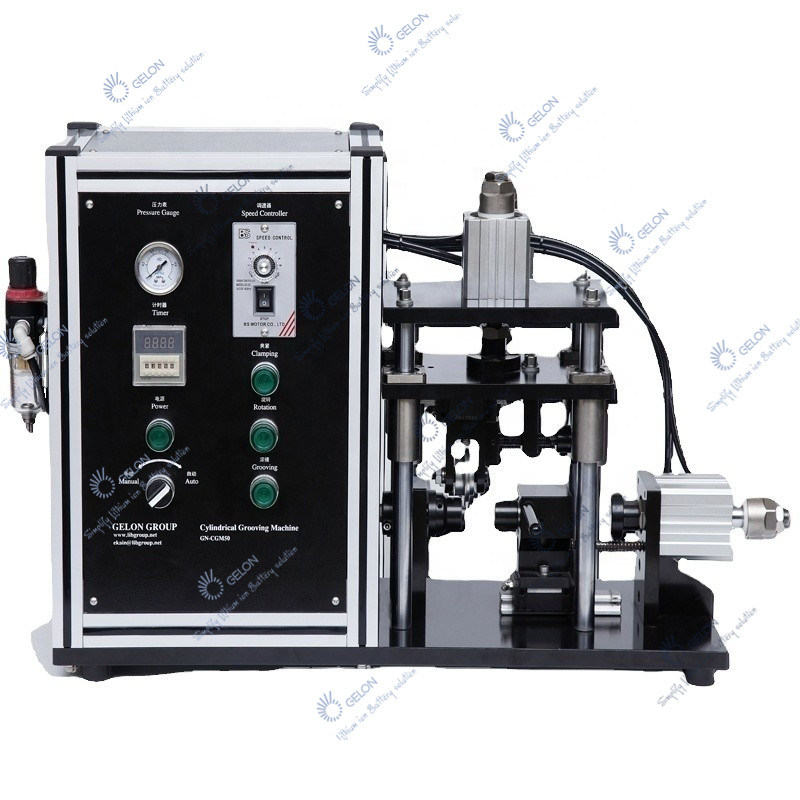

Cylinder Cell Case Grooving Machine Lithium Battery Research Lab Line Accembly 0

Item Data
Grooving battery case size CR123,18650,21700,26650,32650,etc
Accuracy ±0.1mm
Grooving blade lifetime >1 million times
Air pressure 0.5-0.7MPa
Max. torque 500N.m



Cylinder Cell Case Grooving Machine Lithium Battery Research Lab Line Accembly 1Cylinder Cell Case Grooving Machine Lithium Battery Research Lab Line Accembly 2
