Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine

Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine
Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine

Large Image :  Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-VM-7
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD150-980/PCS
Packaging Details: wooden case
Delivery Time: 15-30days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500pcs/month

Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine

Description
Product Name: Lab High-speed Vacuum Mixing Machine Rotay Speed: Max.320rpm
Vacuum Level: 0.08~0.09 Mpa (600 Torr- 675 Torr Mixing Tank: 50ml- 500mL
Vibration Plate: Vibrating At 1000 Hz Vacuum: Built-in Vacuum Pump
Dimension: 13''L X 12''W X 21''H
High Light:

Lab Lithium Battery Research

,

320rpm vacuum mixer

,

1000 Hz Lithium Battery Research

Battery Lab High-Speed Vacuum Mixer Lithium Battery Machine Anode Slurry Making Lithium Battery Research

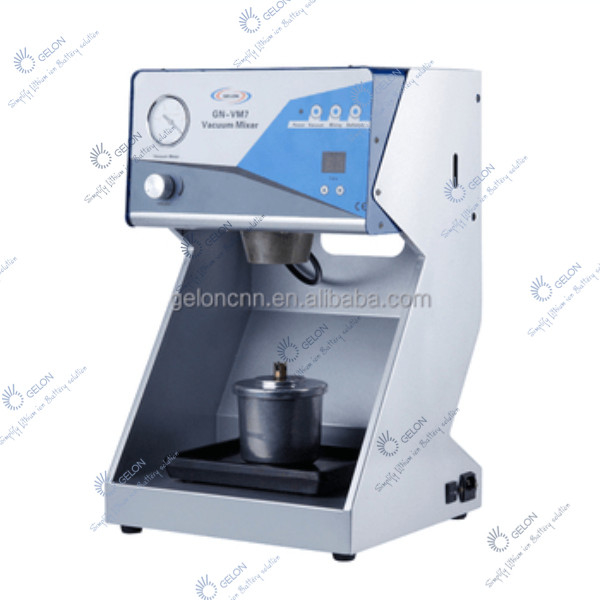

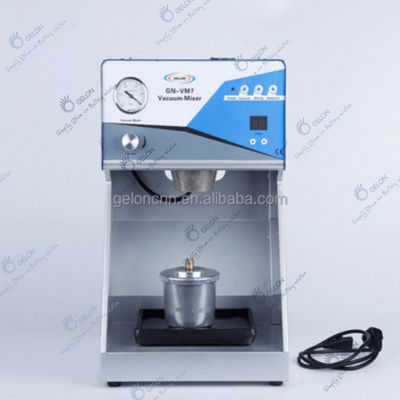

GN-VM7 is designed to produce coating slurry by mixing small batch of chemical and compound (500 ml Max) under vacuum to remove gas bubble and protect sample from oxidation. It has build-in pump which can vacuum the mixing container to 0.08Mpa (600 torr) and the step- less mixing speed variates from 0 to 320rpm. The vibration plate is located at the bottom to remove gas bubble before vacuum mixing and disperse the slurry after mixing to ensure better uniformity. It is excellent for preparing battery electrode
paste and various ceramic materials in research lab.

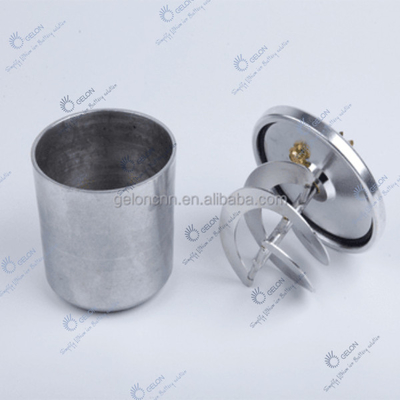

PRODUCT FEATURE: 1. It has build-in pump which can vacuum the mixing container 2. Mixing blade is built-in to the top of the container 3. Metal filter prevents solid particles from ebeing sucked into the vacuum pump.

Material Processed Chemicals
Max. Loading Volume (L) 0.5L
Power (kW) 150W
Speed Max.320rpm
Voltage Single Phase 220VAC 50/60Hz
Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine 0Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine 1
Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine 2Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine 3

Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine 5Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine 6Lab Lithium Battery Research Vacuum Mixer Anode Slurry Making Machine 7
