Lithium Ion Battery Lab Research Machine

Lithium Ion Battery Lab Research Machine
Lithium Ion Battery Lab Research Machine Lithium Ion Battery Lab Research Machine Lithium Ion Battery Lab Research Machine Lithium Ion Battery Lab Research Machine Lithium Ion Battery Lab Research Machine Lithium Ion Battery Lab Research Machine

Large Image :  Lithium Ion Battery Lab Research Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-XGB04
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $2400-$3000/set
Packaging Details: Standard wooden box for export.
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month

Lithium Ion Battery Lab Research Machine

Description
Production Name: Planetary Ball Mill Usage: Lithium Ion Battery Research And Production
MOQ: 1 Pc Customzie: YES
Shipping: By Sea/Air/Express/Land Supply 1: Lithium Ion Battery Raw Material
Supply 2: Lithium Ion Battery Production Equipment Maximum Continuous Working Tim: 72 Hours
High Light:

Battery Lab Research Machine

,

Battery Planetary Ball Mill

,

Lithium Ion Lab Research Machine

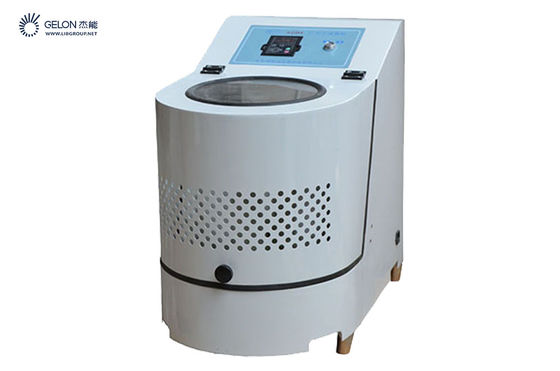

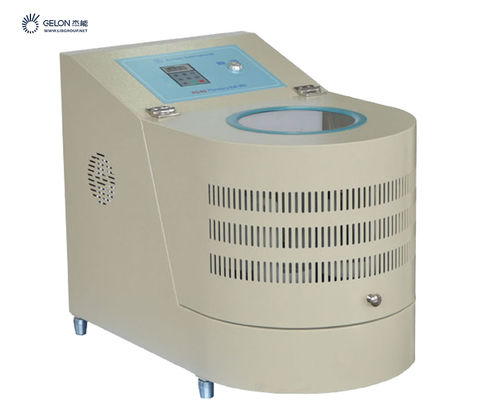

Lithium Ion Battery Lab Reaearch Machine Planetary Ball Mill





GN-XGB04 planetary ball mill can be dry, wet two different milling methods or mixed grain size, different types of solid materials particles, suspensions and pastes. Vacuum tank as ball milling or grinding may be mixed in a vacuum or inert gas in the sample.

The ball mill is widely used in geology, metallurgy, soil, building materials, chemicals, light industry, medicine, electronics, ceramics,pool, environmental protection and other fields.

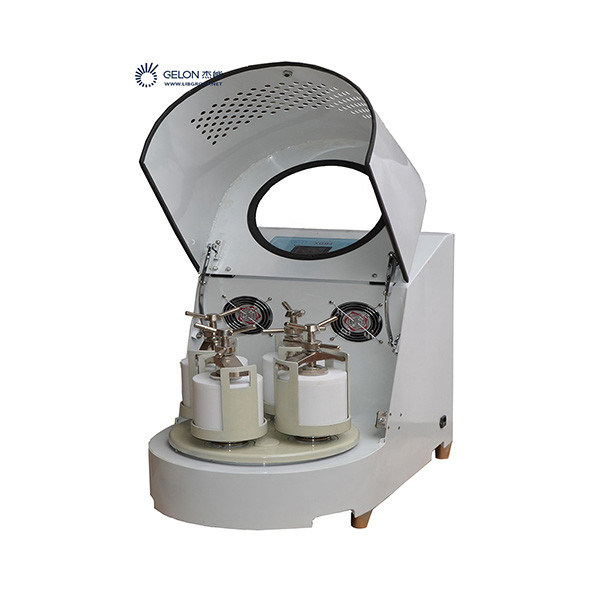

GN-XGB04 planetary ball mill has four ball milling tank on a turntable when the turntable is rotated (revolution), driving the ball grinding tank around its own central axis (rotation), thereby forming a planetary motion, by the action of the rotation and revolution, so make tank and abrasive grinding balls hit each other in 2d under the action of centrifugal force, crushing, grinding, mixing experiment sample



Product feature:

1. With small volume,high efficiency,low noise

2. If choosing with optional vacuum jar,it can grind samples under the vacuum condition or filled with inert gas

3. The product can smash and blend various products of different materials and granularity with dry or wet methods

Lithium Ion Battery Lab Research Machine 0

Lithium Ion Battery Lab Research Machine 1

Lithium Ion Battery Lab Research Machine 2



ITEM  VALUE
Speed adjustment mode Frequency 0 ~ 50Hz, resolution 1Hz.
Control mode 0 ~ 50Hz
Maximum continuous working time 72 Hour
Single-phase ac 220V 0.75 KW
Dimensions 760*480*640 (mm)
Weight 100kg
Feed particle size soil material≤10mm, other materials≤3mm
The material particle size minimum to 0.1μm
Rated Speed revolution (tape) from 0 to 290 r/min rotation



























Lithium Ion Battery Lab Research Machine 3

Lithium Ion Battery Lab Research Machine 4



Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment

Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMPPVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.
Based on our extensive batteryproduction experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertakelithium ion battery project design, construction&training .
By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......; also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....

Lithium Ion Battery Lab Research Machine 5Lithium Ion Battery Lab Research Machine 6
