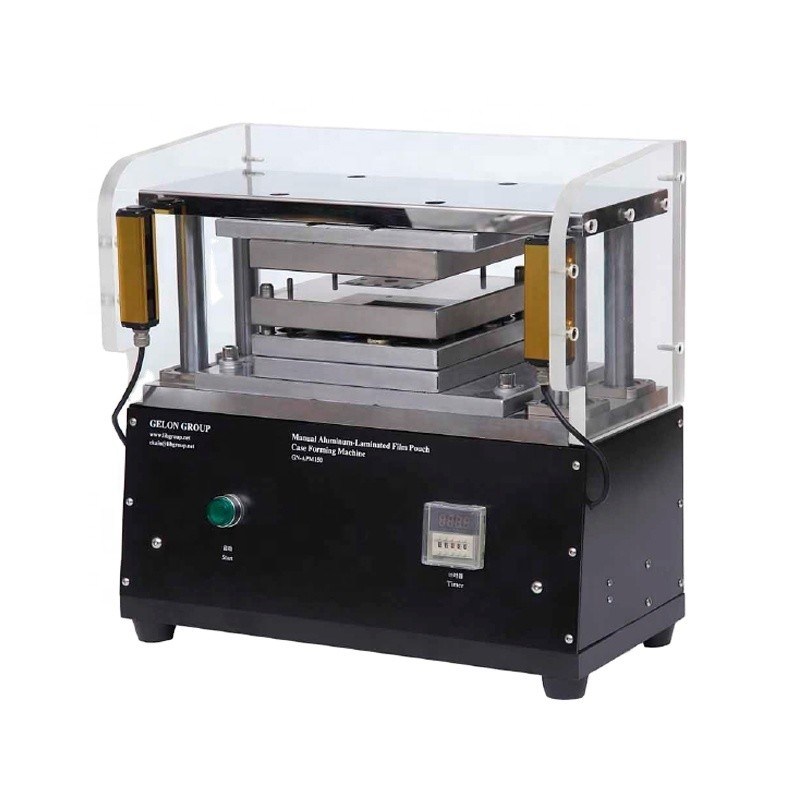

Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine

Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine
Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine

Large Image :  Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-S100F
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD2210-2240/SET
Packaging Details: Wooden Case/Can Custom
Delivery Time: about 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month
Contact Now

Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine

Description
Molding Size Max: L62*W46mm Molding Pressure Max.: 1T (1MPa Compressed Gas), Adjustable
Molding Accuracy: ±0.05mm Forming Thickness: 0.1~0.2mm Aluminum Plastic Film
Installation Size: L370mm*W245mm*H336mm Weight: About 45Kg
PRODUCT MODEL: GN-S100F PRODUCT NAME: Aluminum-laminated Film Forming Machine
High Light:

Pouch Cell Li Ion Battery Research

,

6mm pouch cell assembly equipment

,

Desktop Li Ion Battery Research

Pouch Cell Desktop Machine Aluminum Laminated Film Lab Pouch cell case Forming Machine Battery Making Machine



I. Overview of equipment characteristics
1. Aluminum-plastic film forming machine is an equipment used for forming
aluminum-plastic film of lithium-ion soft pack battery. The equipment is driven by a
cylinder and can be used to form aluminum-plastic film shells of lithium-ion batteries
of different sizes according to the upper and lower forming dies made by customers.
Sheet aluminum plastic film forming, suitable for R&D and sample preparation
applications;
2. Cylinder drive, no need of electricity, adjustable molding pressure and molding
speed; high-strength frame, upper and lower precision templates to ensure the
accuracy of molding; the molded products are stretched evenly, the stretching effect is
high-quality, and there is no defect such as strain and crack; Standard set of standard
size molds can also be produced according to customer requirements
Punching depth Max
6mm, high tensile strength is related to the quality of
aluminum plastic film, standard depth gauge of 3, 4, 5, 6mm
Standard mold
L62*W46mm, aluminum plastic film size is required to be 160mm
long and 110mm wide

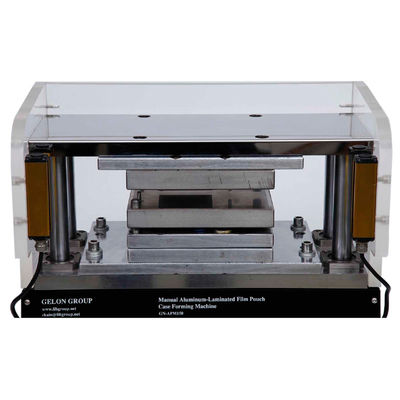

Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine 0

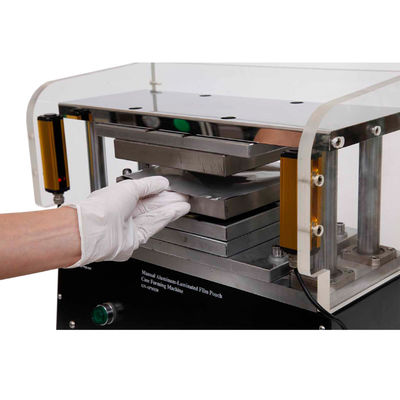

Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine 1

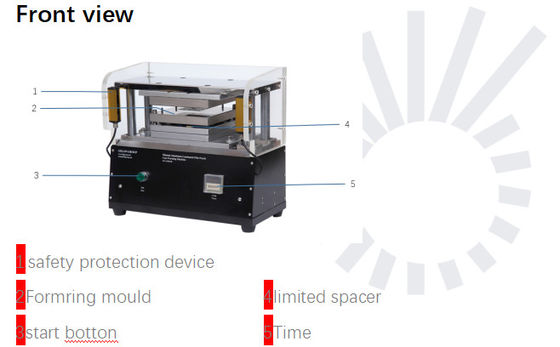

Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine 2Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine 3
Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine 4Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine 5Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine 6Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine 7Pouch Cell Desktop Li Ion Battery Research Aluminum Laminated Forming Machine 8
We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.

2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
Any more info, pls kindly contact :Ella@libgroup.net
