Automatic Li Ion Battery Research Cylinder Cell Assembly Line All In One Machine

Certification
China Shandong Gelon Lib Co., Ltd certification
China Shandong Gelon Lib Co., Ltd certification
I'm Online Chat Now

Automatic Li Ion Battery Research Cylinder Cell Assembly Line All In One Machine

Automatic Li Ion Battery Research Cylinder Cell Assembly Line All In One Machine
Automatic Li Ion Battery Research Cylinder Cell Assembly Line All In One Machine
Automatic Li Ion Battery Research Cylinder Cell Assembly Line All In One Machine Automatic Li Ion Battery Research Cylinder Cell Assembly Line All In One Machine Automatic Li Ion Battery Research Cylinder Cell Assembly Line All In One Machine Automatic Li Ion Battery Research Cylinder Cell Assembly Line All In One Machine

Large Image :  Automatic Li Ion Battery Research Cylinder Cell Assembly Line All In One Machine

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-ZY3500
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 80000-200000USD
Packaging Details: wooden box package
Delivery Time: 3months
Payment Terms: L/C, T/T
Supply Ability: 30sets one month

Automatic Li Ion Battery Research Cylinder Cell Assembly Line All In One Machine

Description
Product Name: Automatic Cylinder Cell Assembly Line Materials: Stainless Steel
Feature: Automatic Application: Lithium Ion Battery
Voltage: 380,can Be Customized Advantage: High Efficiency And High Quality
Brand Name: Gelon Warranty: 1 Year
High Light:

Automatic Li Ion Battery Research

,

stainless steel Cell Assembly Line

,

SS Li Ion Battery Research

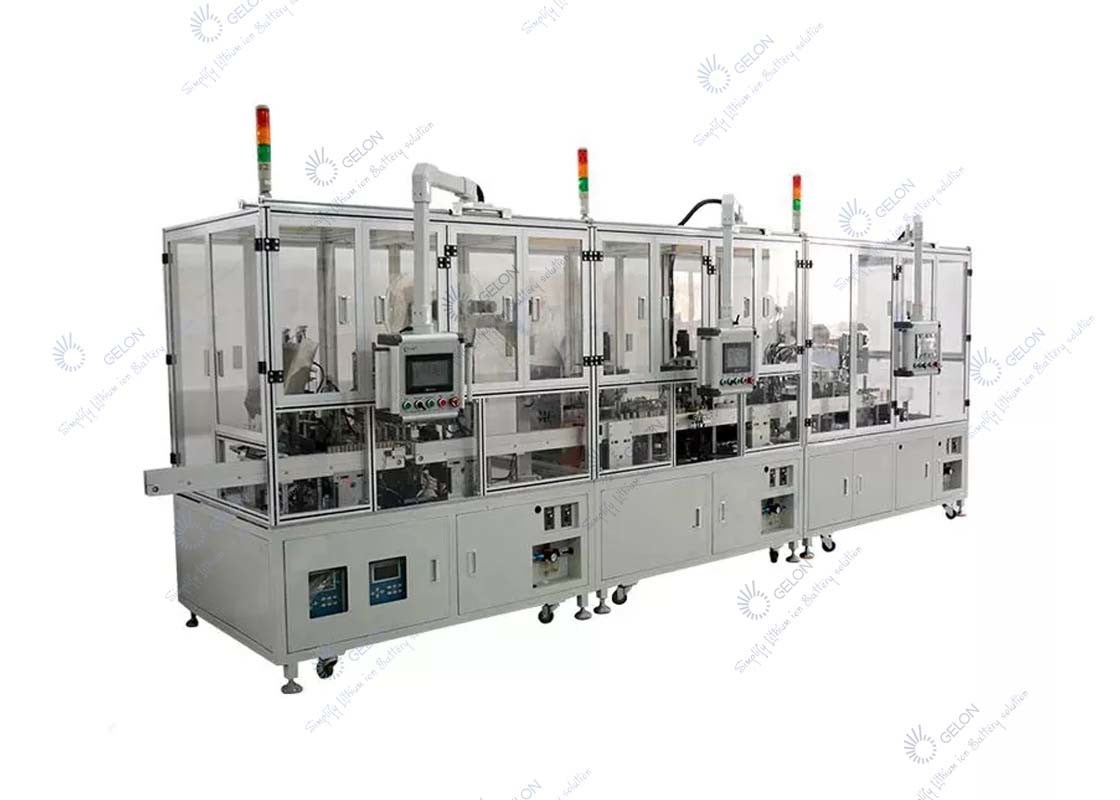

Lithium ion battery automatic cylinder cell assembly line all-in-one machine

Introduction:

It is mainly used for cylindrical lithium battery automatic puting of the bottom insulator , battery core detection, putting battery core in the cases, automatic welding bottom, automatic puting top surface insulator, automatic grooving and coating, automatic laser welding caps, and welded caps , placed in the box.



Features:

1. Automatic double-station into the shell and puting of the bottom insulator: CCD defective product detection.

2, Automatic point bottom welding and adding the top surface mat, automatic totating needle.

3, Automatic grooving and coating oil , effectively prevent the swell after the grooving, can be added to the groove cleaning function.

4, Automatic laser welding cap , welding cap collect automaticly.

5, The welded caps can be placed in box automaticly.

Index:

Voltage 380V 50Hz Power 15kw
Working pressure 5-7kgf/cm2 Needle diameter 2.0-3.0mm
Insulation sheet thickness 0.20mm Application size 10/14/17/18/21/26/32
Working efficiency 70-80ppm/min Size 8000*1500*1800mm


Automatic Li Ion Battery Research Cylinder Cell Assembly Line All In One Machine 0

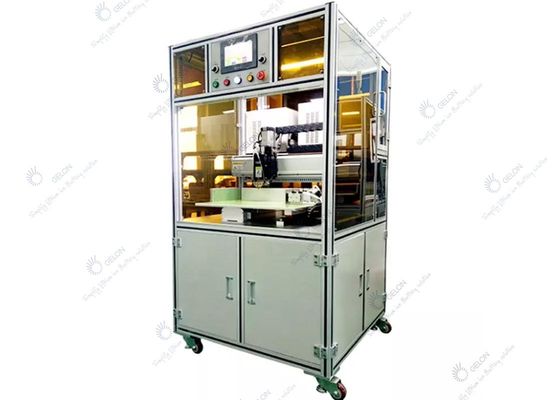

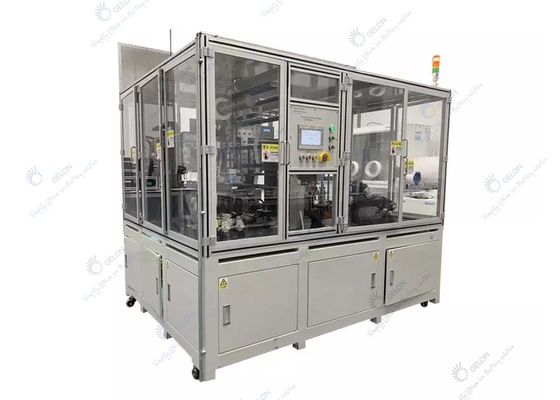

Automatic Li Ion Battery Research Cylinder Cell Assembly Line All In One Machine 1Automatic Li Ion Battery Research Cylinder Cell Assembly Line All In One Machine 2
