Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-S100P
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD2000-2200/set
Packaging Details: Wooden Case/Can Custom
Delivery Time: about 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000sets/month

Pouch Cell Lithium Battery Lab Research Equipment Electrode Punching Cutting Die Machine

Description
Gas Source: 0.5~1.0MPa Argon /nitrogen,or 0.7MPa Compressed Air(No In Glove Box) Punching Size: Max. L80*W60mm
Standard Die: Cathode56*43mm Anode58*45mm,customized As Request Life Of Cutting Die: About30 Thousand Times(Normal Use)
Punching Pressure: Max. 1T,For Electrode 500Kg(0.5MPa) Punching Precision: ±0.1mm
Punching Thickness: Max. 0.5mm(aluminum-plastic Film) Punching Stroke: 12mm
High Light:

Lithium Battery Lab Research

,

12mm Electrode Cutting Die Machine

,

electrode punching machine CE

Easy Operate Electrode Punching Die Cutting Machine Pouch Cell Lithium Battery Lab Research Equipment



Features

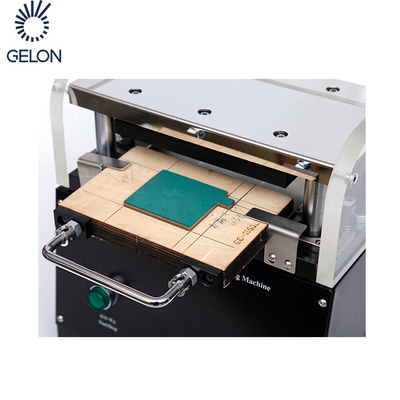

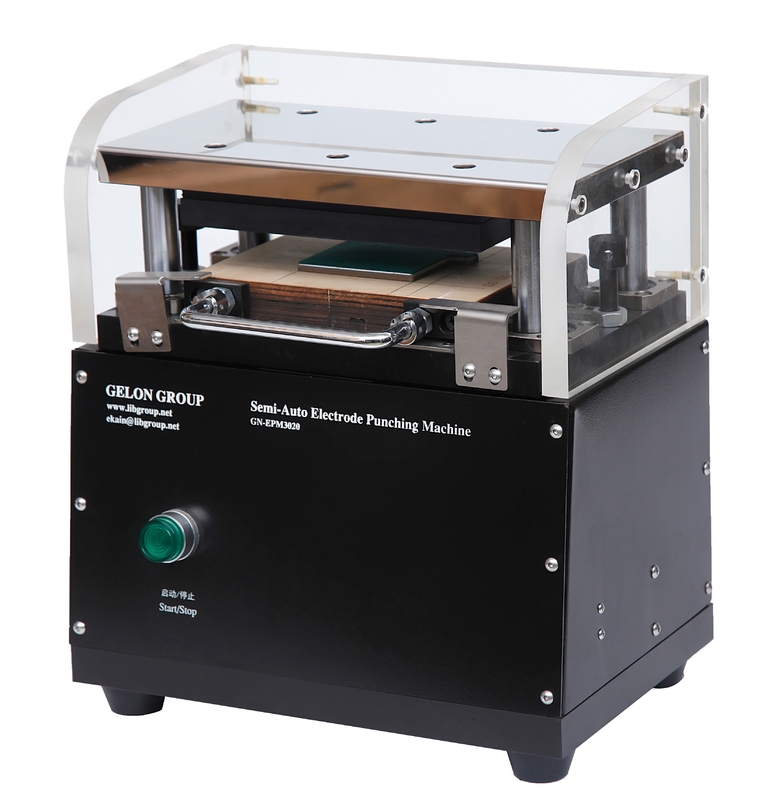

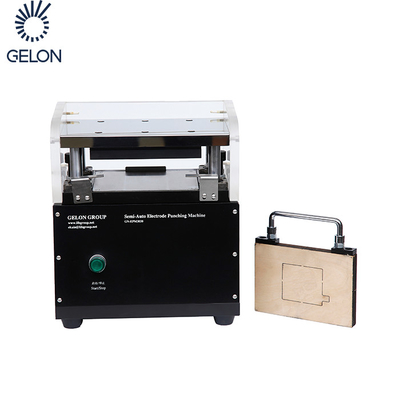

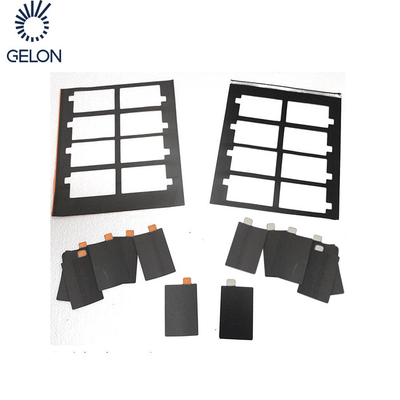

Semi-automatic electrode punching machine is used for stacking cathode &anode
electrode of li ion battery.It can die sheet electrode by pneumatic,and can be put in the
glove box,also offer customized any cutting die to make molding and die cutting with
different size of electrodes .
Sheet electrode feeding,cutting die make punching ,allow operating inside Glove box;
Cylinder driving, no power supply,Adjustable cutting force and speed;High strength
frame ,up and down precision pressing plate,high performance cut, make cutting
precision Cutting product with little burr ,no powder, no indentation and bad

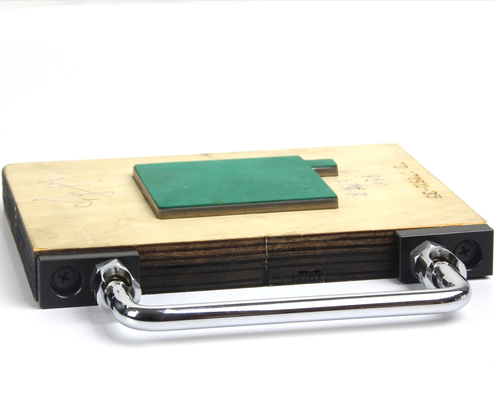

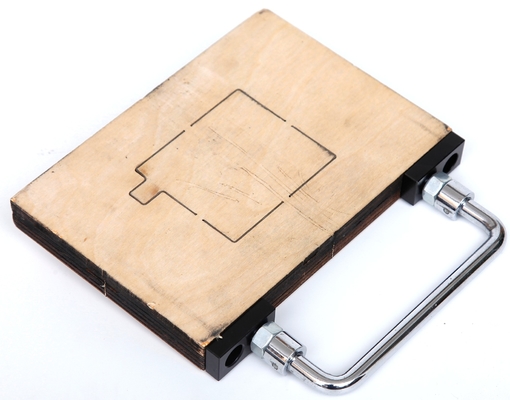

appearance;(Cathode & Anode) cutting dies are included,Customized cutting die is
available upon request;Drawer design of upper and lower die ensures safe operation.
Punching burr
Vertical burr≤12μm,level burr≤20μm
Weight
32KG
Installment size
L320mm*W245mm*H345mm



Pouch Cell Lithium Battery Lab Research Equipment Electrode Punching Cutting Die Machine 0Pouch Cell Lithium Battery Lab Research Equipment Electrode Punching Cutting Die Machine 1Pouch Cell Lithium Battery Lab Research Equipment Electrode Punching Cutting Die Machine 2

Pouch Cell Lithium Battery Lab Research Equipment Electrode Punching Cutting Die Machine 3Pouch Cell Lithium Battery Lab Research Equipment Electrode Punching Cutting Die Machine 4Pouch Cell Lithium Battery Lab Research Equipment Electrode Punching Cutting Die Machine 5Pouch Cell Lithium Battery Lab Research Equipment Electrode Punching Cutting Die Machine 6Pouch Cell Lithium Battery Lab Research Equipment Electrode Punching Cutting Die Machine 7

We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.

2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
