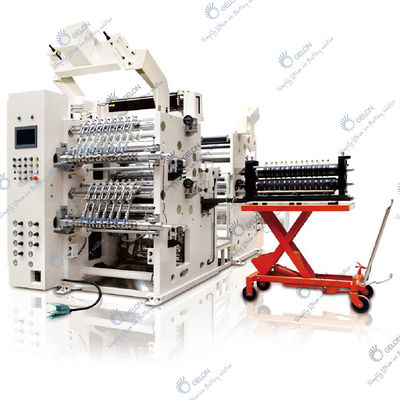

EV Battery Prismatic Cell Assembly Automatic Electrode Slitting Equipment

EV Battery Prismatic Cell Assembly Automatic Electrode Slitting Equipment
EV Battery Prismatic Cell Assembly Automatic Electrode Slitting Equipment EV Battery Prismatic Cell Assembly Automatic Electrode Slitting Equipment EV Battery Prismatic Cell Assembly Automatic Electrode Slitting Equipment

Large Image :  EV Battery Prismatic Cell Assembly Automatic Electrode Slitting Equipment

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: Automatic Slitting Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$50000~100000 set
Packaging Details: Standard packing/Wood packing
Delivery Time: 20~25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 sets per month
Contact Now

EV Battery Prismatic Cell Assembly Automatic Electrode Slitting Equipment

Description
Name: Automatic Slitting Machine Running Speed: 0-50m/min(continuous Adjustable)
Slitting Electrode Thickness: 50-300micron Dimension: 2650*1900*2000mm
Slitting Width Precision: ±0.05mm Type: Can Be Customization
Warranty: 1 Year
High Light:

EV Battery Prismatic Cell Assembly

,

50m/min electrode slitting machine

,

Automatic Prismatic Cell Assembly

Gelon Automatic PLC Control Electrode Continuous Slitting Machine EV Battery Electrode Slitting Equipment





PRODUCT FEATURE:

1.It is used for normal lithium ion battery electrode, EV battery electrode and super capacity electrode slitting.
2.It adopts French un-winder tension system, adjustable constant tension un-winder with digitizing, the electrode tension is stable, and the tension control precision is high, also with high precision EPC system. It also could cut little undesirable electrode, so the adaptability for electrode is good.
3.Re-winder in slip frequency shaft way, it has constant tension or taper to adjust the tension re-winder mode, and with the
auto-tracker for neat, steady and un-wrinkle.
4.Adopts switching cutter module, also could be ordered several modules with customers’ request. It could achieve the battery type transform speediness, easy to operate and maintain, high efficiency.
5.PLC control
6.Can be customization



SPECIFICATION FOR AUTOMATIC CONTINUOUS SLITTING MACHINE
Running Speed
0-50m/min(continuous adjustable)
Slitting type
Disk cutters multiterm roll shear continuously at the same time
Slitting Electrode Thickness
50-300micron
Slitting width precision
±0.05mm
Dimension
2650*1900*2000mm
Weight
3.5T

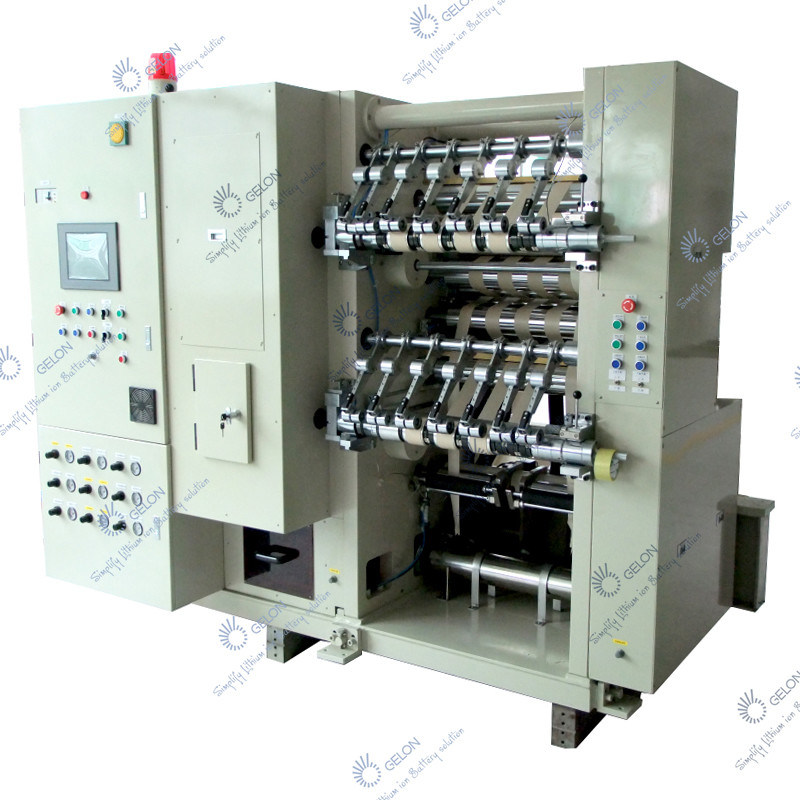

EV Battery Prismatic Cell Assembly Automatic Electrode Slitting Equipment 0EV Battery Prismatic Cell Assembly Automatic Electrode Slitting Equipment 1



Our Services



We could supply one stop solution ( turn key project) for you.



1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.



2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.



3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.

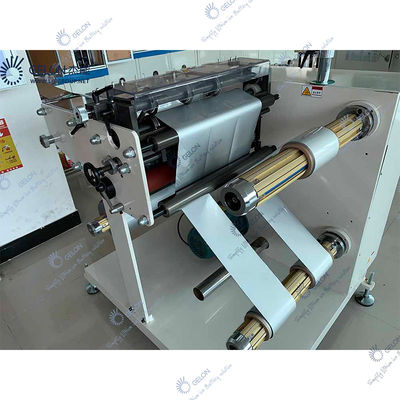

EV Battery Prismatic Cell Assembly Automatic Electrode Slitting Equipment 2
