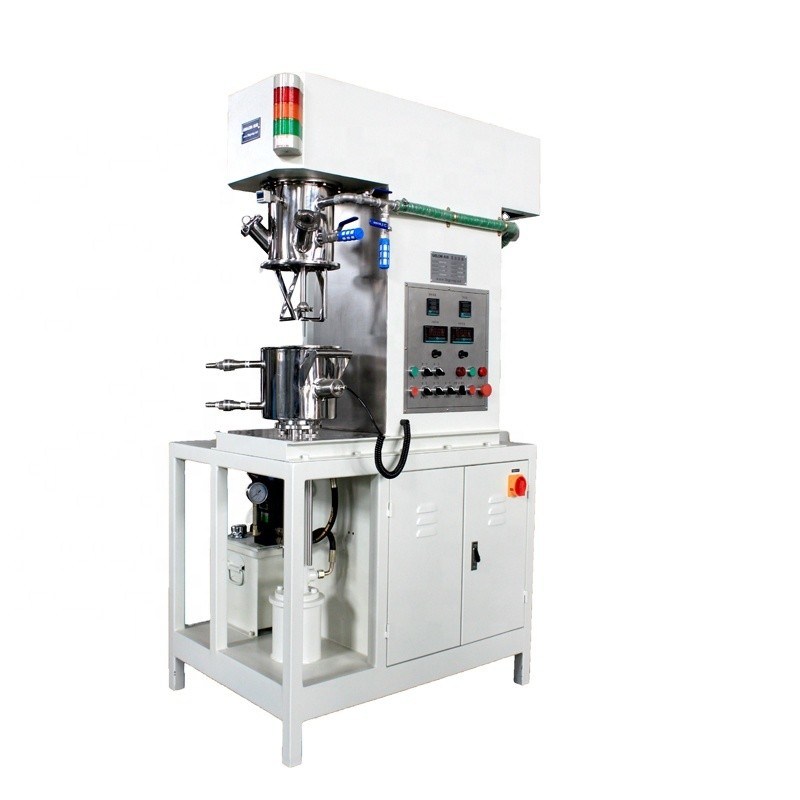

Battery Manufacturing Prismatic Cell Assembly 5L Double Planetary Slurry Mixer

Battery Manufacturing Prismatic Cell Assembly 5L Double Planetary Slurry Mixer
Battery Manufacturing Prismatic Cell Assembly 5L Double Planetary Slurry Mixer Battery Manufacturing Prismatic Cell Assembly 5L Double Planetary Slurry Mixer

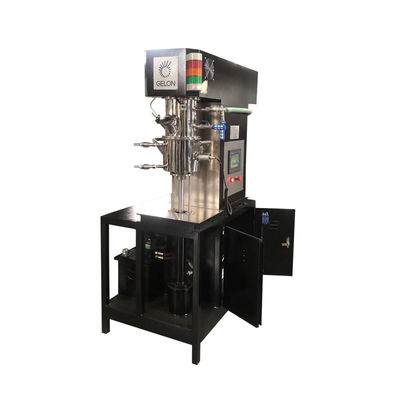

Large Image :  Battery Manufacturing Prismatic Cell Assembly 5L Double Planetary Slurry Mixer

Product Details:
Place of Origin: China
Brand Name: Gelon
Certification: CE
Model Number: GN-PM-5L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 13000usd - 16000usd/ set |1 set/sets(Min. Order)
Packaging Details: Standard exported package : Internal anticollision protection, external export wooden box packaging.
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram, Western Union
Supply Ability: 1000sets/month

Battery Manufacturing Prismatic Cell Assembly 5L Double Planetary Slurry Mixer

Description
Mixer Type: Planetary Barrel Volume (L): 5L
Material Processed: Lithium Ion Battery Product Type: Mixing Machine, Battery Slurry Mixing
Application: Liquid, Lithium Ion Battery Voltage: 380V
Power (kW): 1.85 KW Fast Shaft: Double Fast Shaft With Two Sets Dia 50 Dispersion Disk
High Light:

Battery Manufacturing Prismatic Cell Assembly

,

Mixing Machine Battery Manufacturing machine

,

5L Planetary slurry mixing equipment

Battery Manufacturing machine 5L Double Planetary slurry Mixing Machine



Product Description



  • The main parameters of the equipment:

Lower barrel parts



  • Design total volume: 8L
  • Effective volume: 2.7-5L
  • Inner diameter of container: 240mm
  • Inner depth of container: 180mm
  • Container material: the part in contact with the material 304
  • Temperature regulating jacket form: single-layer jacket on the barrel wall, used for cooling or heating; single-layer jacket on the bottom of the barrel, used for cooling or heating
  • Temperature adjusting jacket interface: G3/8", equipped with quick-opening union, jacket pressure resistance ≤0.4MPa
  • Temperature regulating jacket circulation system: customer-provided, it is recommended that the jacket water inlet temperature is ≤8℃, and the cooling water flow is >3.5L/min
  • Discharge form: a 1" downward discharge plunger valve at the bottom of the barrel
  • Design environment temperature: -10~+120°C
  • Movement method: caster movable type
  • List of random wearing parts:



No. Name Specification Material Quantity Remarks
  •
Upper cover sealing rubber ring ΦD×ΦN Silica gel 1 Specifications are matched with corresponding models, according to supplier standards
  •
Sight glass seat sealing ring   Silica gel 2 Specifications are matched with corresponding models, according to supplier standards
  •
Filling port gasket   Silica gel 1 Specifications are matched with corresponding models, according to supplier standards
  •
High-speed mechanical seal   C+SiC 1 Specifications are matched with corresponding models, according to supplier standards
  •
High-speed synchronous belt   Rubber 1set Specifications are matched with corresponding models, according to supplier standards
  •
Scraper   Teflon 1 Specifications are matched with corresponding models, according to supplier standards
  •
Sight glass   Tempered 2pc Specifications are matched with corresponding models, according to supplier standards

Battery Manufacturing Prismatic Cell Assembly 5L Double Planetary Slurry Mixer 0

Battery Manufacturing Prismatic Cell Assembly 5L Double Planetary Slurry Mixer 1

Battery Manufacturing Prismatic Cell Assembly 5L Double Planetary Slurry Mixer 2

Battery Manufacturing Prismatic Cell Assembly 5L Double Planetary Slurry Mixer 3Battery Manufacturing Prismatic Cell Assembly 5L Double Planetary Slurry Mixer 4Battery Manufacturing Prismatic Cell Assembly 5L Double Planetary Slurry Mixer 5Battery Manufacturing Prismatic Cell Assembly 5L Double Planetary Slurry Mixer 6

Battery Manufacturing Prismatic Cell Assembly 5L Double Planetary Slurry Mixer 7
