Product Details:
|
| Name: | Cylindrical Battery 18650 21700 Winding Machine | Separator Width: | 40-70 Mm |
|---|---|---|---|
| Electrode Width: | 38-68 Mm | Tape Width: | 30-80 Mm |
| Electrode Length: | 400-1500 Mm | Core Components: | PLC, Motor, Other |
| Diameter Of Winding Needle: | Customization | Warranty: | 1 Year |
| High Light: | Semi Automatic Prismatic Cell Assembly,Cylindrical battery winding machine,18650 Prismatic Cell Assembly |
||

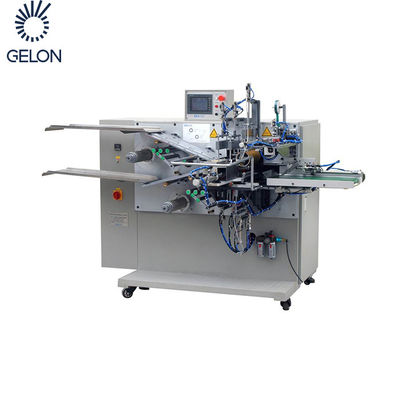

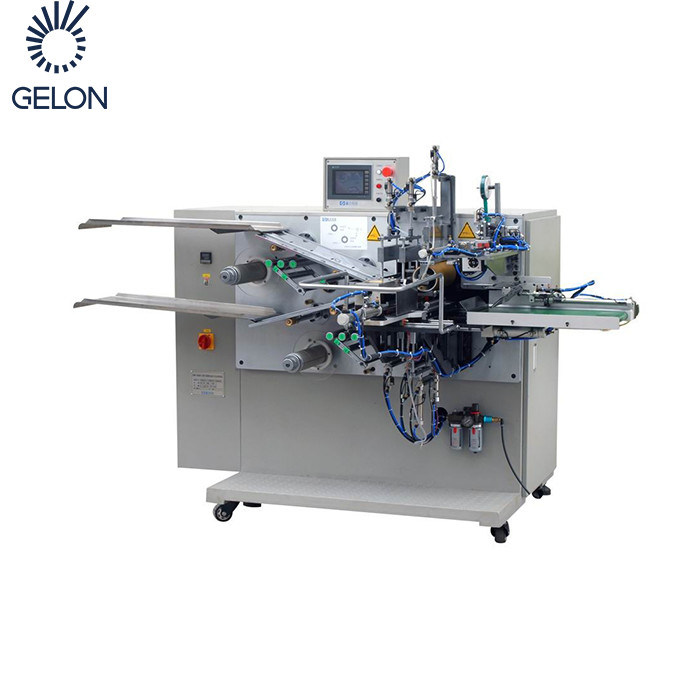

Semi-Automatic Cylindrical Battery 18650 21700 Winding Machine Lithium Ion Batteries Making
This tyep machine is mainly used for precision winding of 18650/21700 batteries. The working process is as follows: the positive and negative plates are manually introduced into the winding part, stacked with the separator, and wound according to the process requirements, the termination tape is automatically attached, and the battery core is automatically discharged.
| Power | 2KW Max |
| Electrode Winding Size | 14-32mm O.D/25-70mm L |
| Winding Rod | 3.5mm O.D |
| Separator Winding | PP or PE |
| Thickness Range＜100um | |
| Max adaptable size:Thickness ＜10 mm;Width 30-80mm;Length 30-100mm | |
| Cathode/Anode Winding | Cathode:Aluminum foil coated with an active material |
| Anode:Copper foil coated with graphite | |
| Thickness Range:100-300um | |
| Suggested Overall Length:＜1200um | |
| Maximum Width:70mm |
Our Services
We could supply one stop solution ( turn key project) for you.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
