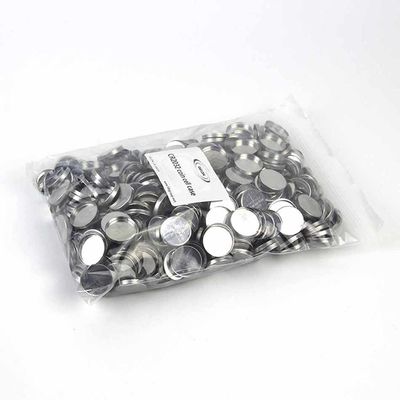

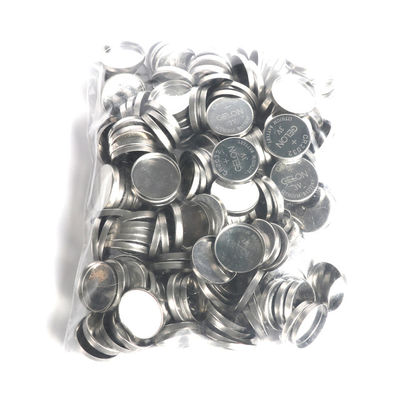

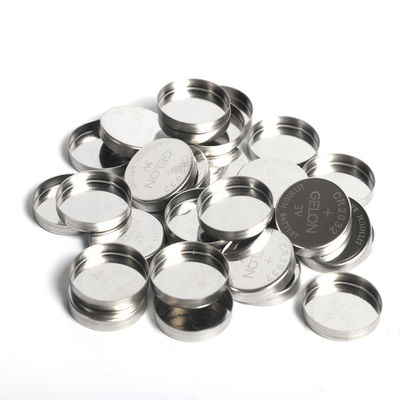

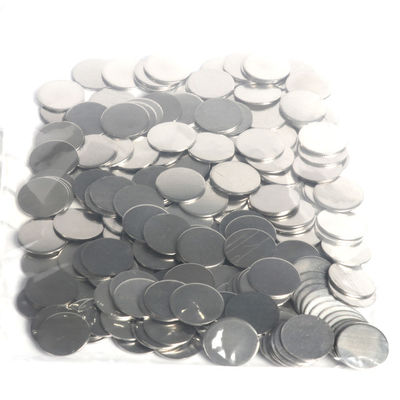

Silvery White Lithium Ion Battery Material CR20XX Coin Cells Cases

Large Image : Silvery White Lithium Ion Battery Material CR20XX Coin Cells Cases

Product Details:

Place of Origin:	China
Brand Name:	Gelon
Certification:	Ce
Model Number:	CR2016 CR2025 CR2032 CR2430 CR2450

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	USD0.25/Set

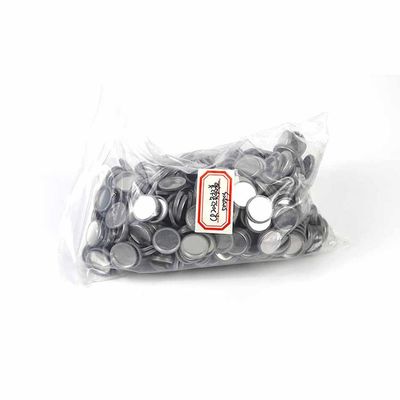

Packaging Details:	Standard Export Packaging.
Delivery Time:	5-8work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 bags/week

Contact Now

Silvery White Lithium Ion Battery Material CR20XX Coin Cells Cases

Description

Product Name:	Coin Cell Case	Dimension:	CR2032 20*3.2mm
Material:	304SS/316SS/Aluminium	Color:	Silvery White
Sealing Gasket:	PP	Thickness Of Case:	0.25±0.02mm
Package:	Package	Application:	Lithium Battery Raw Material
High Light:	316SS Lithium Ion Battery Material , CR20XX Coin Cells Cases , 304SS Lithium Ion Battery Material

Lithium Battery Material CR20XX Coin Cells Cases

1. Product Description

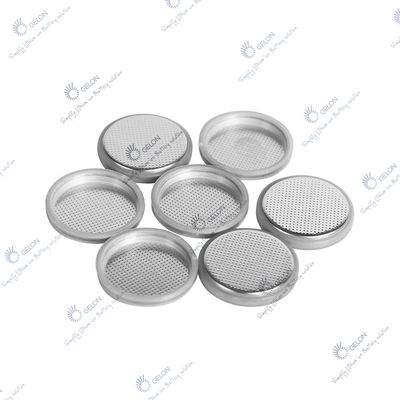

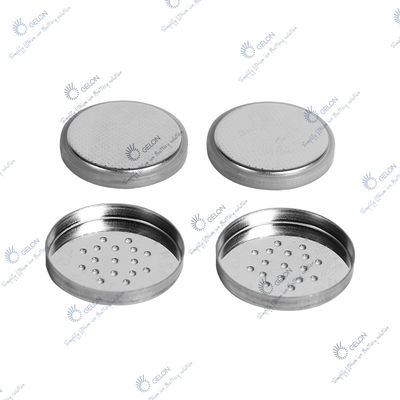

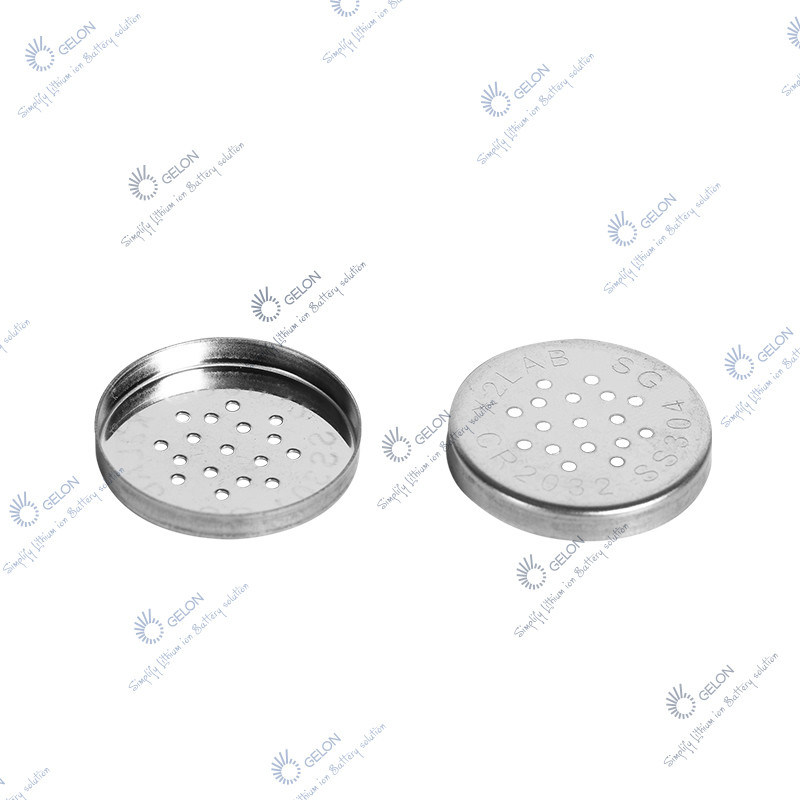

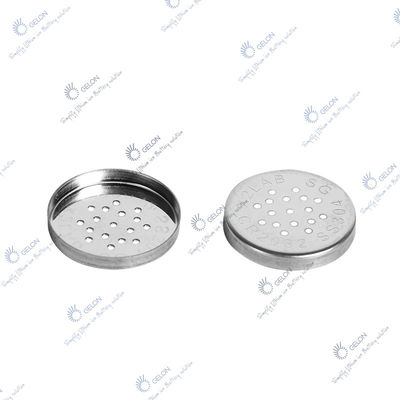

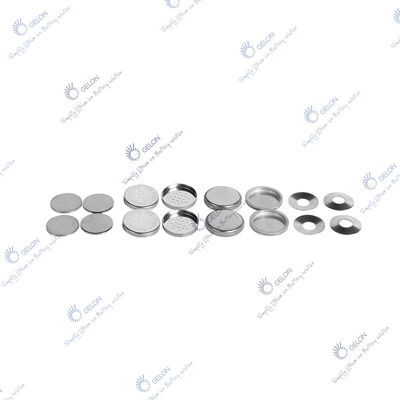

It is made of 304 or 316 stainless steel with sealing o-ring, including CR2016,CR2025,CR2032,CR2430,CR2450, etc； and we also have a coin cell case with Aluminum coated on the inside of the positive can.

Material:

Casing: SS304 or SS316 or Aluminium,

Sealing Gasket: PP

The thickness of the SS304/316 for both anode and cathode cases is 0.25mm+/-0.02mm.

2. Product Parameters


			Dimensions (Dia x Height)

mm x 3.2 mm

			Weight

71g

			Materials

Casing: SS304 or SS316

Sealing Gasket: PP

The thickness of the SS304/316 for both anode and cathode cases is 0.25 mm +/- 0.02 mm.

			Application Note

After perfectly crimping, the External Height should be around 3.0mm.

The diameter of the inner ring of the plastic gasket for the coin cell 2032 is around 16.39mm.

Usually, a case does not need to clean before crimping, but if you do need to clean the case, please put in ethanol for 4-6 hrs,

			and use Oven to dry for serval hours, (please set the oven to 30C, if it has ORING.)

Product Details
