LMO Powder Lithium Ion Power Battery Cathode Raw Material

Certification
China Shandong Gelon Lib Co., Ltd certification
China Shandong Gelon Lib Co., Ltd certification
I'm Online Chat Now

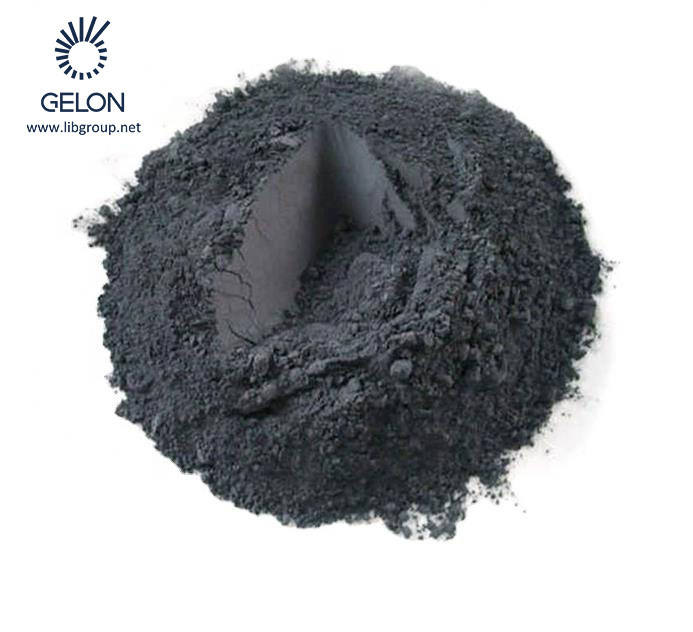

LMO Powder Lithium Ion Power Battery Cathode Raw Material

LMO Powder Lithium Ion Power Battery Cathode Raw Material
LMO Powder Lithium Ion Power Battery Cathode Raw Material LMO Powder Lithium Ion Power Battery Cathode Raw Material

Large Image :  LMO Powder Lithium Ion Power Battery Cathode Raw Material

Product Details:
Place of Origin: China
Brand Name: GELON
Certification: ce
Model Number: LMO-GN-D330
Payment & Shipping Terms:
Minimum Order Quantity: 1KG
Price: USD25-30/kg
Packaging Details: Standard carton for export.
Delivery Time: 7-10 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 10000 kgs per month

LMO Powder Lithium Ion Power Battery Cathode Raw Material

Description
Production Name: Lithium Manganese Oxide LMO/LiMn2O4 MOQ: 5KG
Sample: Yes Warranty: 3months-1 Year
Supply 1: Lithium Ion Battery Raw Material Supply 2: Lithium Ion Battery Production Equipment
Supply 3: Lithium Ion Solid State Battery Raw Material Used For: E-bicycle , Electric Power Tool
Tap Density ( G/cm 3 ): 2.10 Specific Surface Area ( ㎡ /g ): 0.50
Moisture (%): 0.02
High Light:

Lithium Ion Power Raw Material

,

Battery LMO Powder

,

Battery Lithium Ion Power

LMO Powder Lithium Ion Power Battery Cathode Raw Material



1C gram capacity of full battery is greater than 105mAh / g, compacted density is greater than 2.90g/ cm3, 500 cycles at room temperature, capacity retention rate is greater than 80%. High capacity, good processing performance and high cost performance;Suitable for digital batteries, power tool batteries, mining lamp batteries, etc.



Features:
High capacity
Good temperature performance
Good processing performance
Long cycle life
High safety
Applications:
Suitable for power batteries such as bicycles, electric vehicles, and HEVs.
LMO Powder Lithium Ion Power Battery Cathode Raw Material 0
LMO Powder Lithium Ion Power Battery Cathode Raw Material 1

Name/Type LiMn2O4/GN-D330
Used for e-bicycle , electric power tool
test item S t a n d a r d I n s p e c t i o n d a t a
Granularity D 10 ( μm ) > 4.0 4.5
D 50 ( μm ) 9.0 ~ 1 3.0 1 0.0
D 90 ( μm ) < 25 20.5
Tap Density ( g/cm 3 ) > 2.0 2.10
Specific Surface Area ( ㎡ /g ) 0.40 ~ 0.60 0.50
Li (%) 3.5 ~ 4.5 3.55
Mn (%) 57.0 ~ 59.0 57.70
Fe (%) < 0.02 0.018
Cu (%) < 0.02 0.018
Zn (%) < 0.02 0.018
Ca (%) < 0.03 0.020
Ni (%) < 0.03 0.020
pH 7.0 ~ 1 0.0 8.20
Moisture (%) < 0.10 0.02
Circulate 100times volume retention rate (%) > 90
55 degree circulate 55100times volume retention rate (%) > 80
capacity ( mAh/g ; button cells 1C discharge ) > 95 98
Appearance Black Powder , No Agglomeration , No Sundries
Packing Polyethylene bag by vacuum, 25 kg/box
Storage , Delivery Avoid moist, antiseptic
application Lithium ion Power Battery cathode materials
use time Six month



LMO Powder Lithium Ion Power Battery Cathode Raw Material 2LMO Powder Lithium Ion Power Battery Cathode Raw Material 3



We could supply one stop solution ( turn key project) for you.



1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.





2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.




LMO Powder Lithium Ion Power Battery Cathode Raw Material 4











COMPANY PROFILE



Full Automatic Car Battery Production Line/ Electric Vehicle Battery Production Line/Li Ion Battery Plant Equipment
Integrate China's top materials manufacturer,Gelon can supply full set of raw materials solution for Lithium ion battery .



Our preponderant products are LFP,LMO,LCO, NMC,NCA; LTO,MCMB, natural graphite,Separator ,Electrolyte& Other accessories (SBR CMC NMP,PVDF,Sup-Li,Al&Ni Tabs ,and battery packs tags.,etc ) for new power lithium ion batteries.


Based on our extensive battery production experiences and battery equipments factrories,we can design and offer turn-key solution for customer, and indertake lithium ion battery project design, construction&training .


By now,Gelon group has successfully supplied automatic equipments formany well-known battery manufacturers,such as TESLA ,LG,SONY,ATL ......;

also successfully offered turn-key projects in Bolivia,Argentina,United Kingdom,Russia,Turkey, Thailand,Indonesia,Indian,South Africa ....





LMO Powder Lithium Ion Power Battery Cathode Raw Material 5

LMO Powder Lithium Ion Power Battery Cathode Raw Material 6

LMO Powder Lithium Ion Power Battery Cathode Raw Material 7

LMO Powder Lithium Ion Power Battery Cathode Raw Material 8
